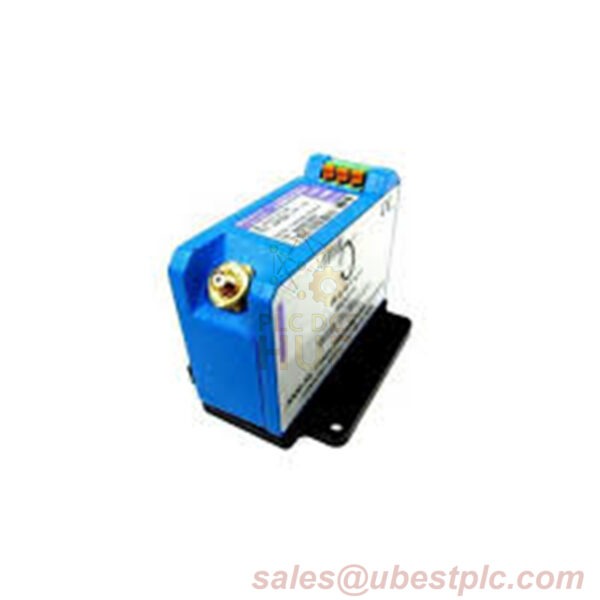

Bently Nevada 330980-50-05: Panel-Mount Sensor with Global Approvals
Industrial-grade monitoring with 5-meter reach. Features panel mounting (suffix 50) and multi-country certifications (suffix 05). SpringLoc terminals enable one-minute installation without tools.
KEY SPECIFICATIONS
| Category | Details |
|---|---|
| Brand/Model | Bently Nevada 330980-50-05 |
| Length | 5.0m (16.4ft) system |
| Mounting | Panel (Screw terminals) |
| Approvals | ATEX, IECEx, UKCA |
| Output Signal | -4 to -20Vdc (50Ω) |
| Temp Range | -52°C to +100°C |
TECHNICAL ADVANTAGES
- EMI Resistance: Stable readings within 5m of 10kW transmitters
- Shock Proof: 100G shock survival (MIL-STD-810G)
- Fast Response: 5µs rise time for vibration detection
- Low Drift: <0.5% signal change from -30°C to +85°C
PANEL MOUNT INSTALLATION
- Drill four 5mm holes in panel
- Secure with included M4 screws
- Connect probe to input terminals
- Apply -24Vdc power (±10%)
- Position 1.5mm from target surface
COMPATIBLE SYSTEMS
- Probes: 3300 XL RAM/NSv series
- Monitors: Bently Nevada 3500/1900 systems
- Targets: AISI 4140 steel (min 31mm diameter)
PACKAGE CONTENTS
- 330980-50-05 Proximitor Sensor
- Terminal labels
12-month warranty. Excludes calibration certificates.
GLOBAL SHIPPING
Same-day dispatch via FedEx, UPS, DHL. Tracked delivery to 220+ countries.
COMMON QUESTIONS
Q: What “05” approvals are included?
A: ATEX, IECEx, UKCA for global hazardous locations.
Q: Panel cutout dimensions?
A: 45mm x 80mm rectangle (template included).
Q: Works with non-steel targets?
A: Yes, but accuracy not guaranteed. Use AISI 4140 steel for specs.
Q: Voltage tolerance?
A: -17.5Vdc min without barriers, -23Vdc min with barriers.
