Description
Description

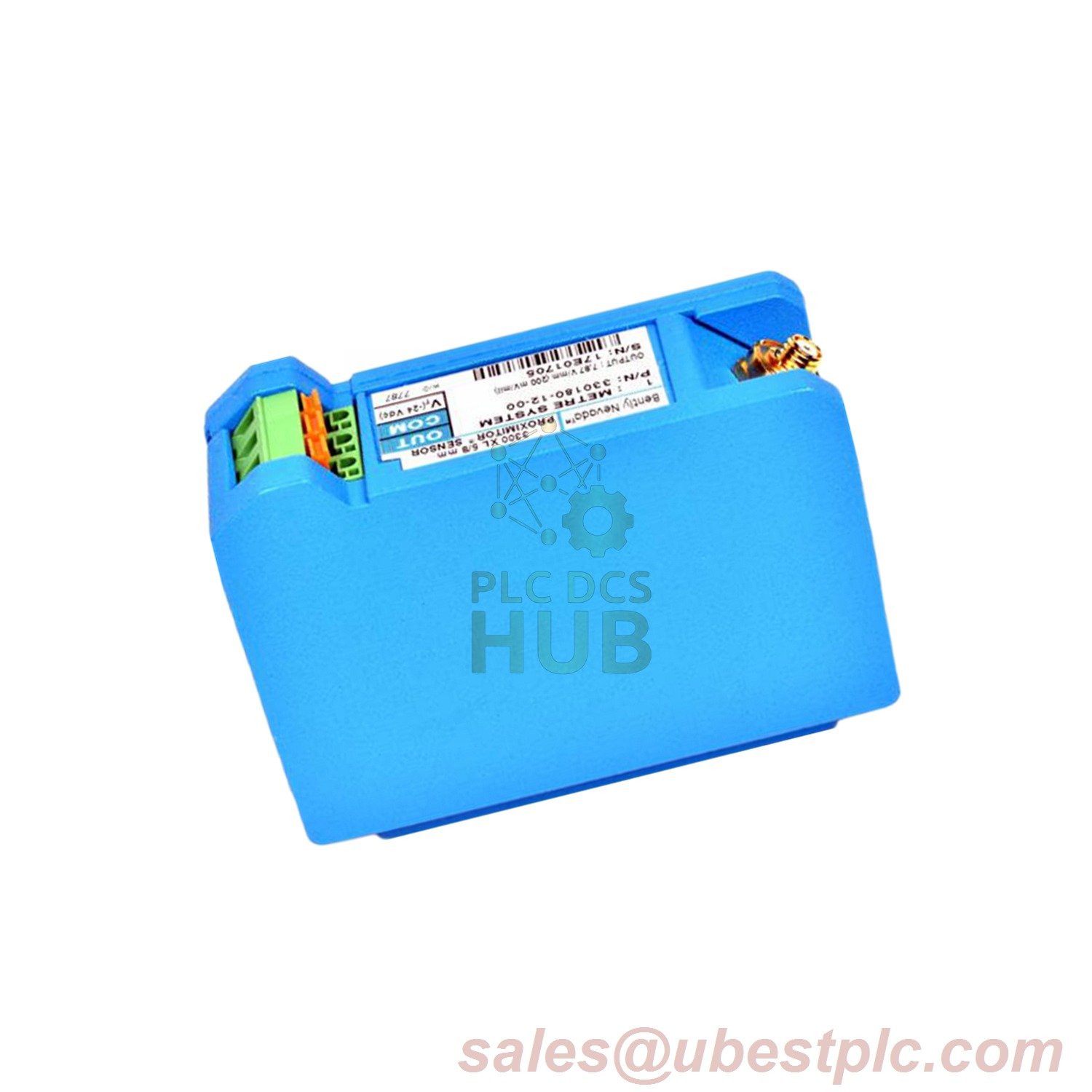

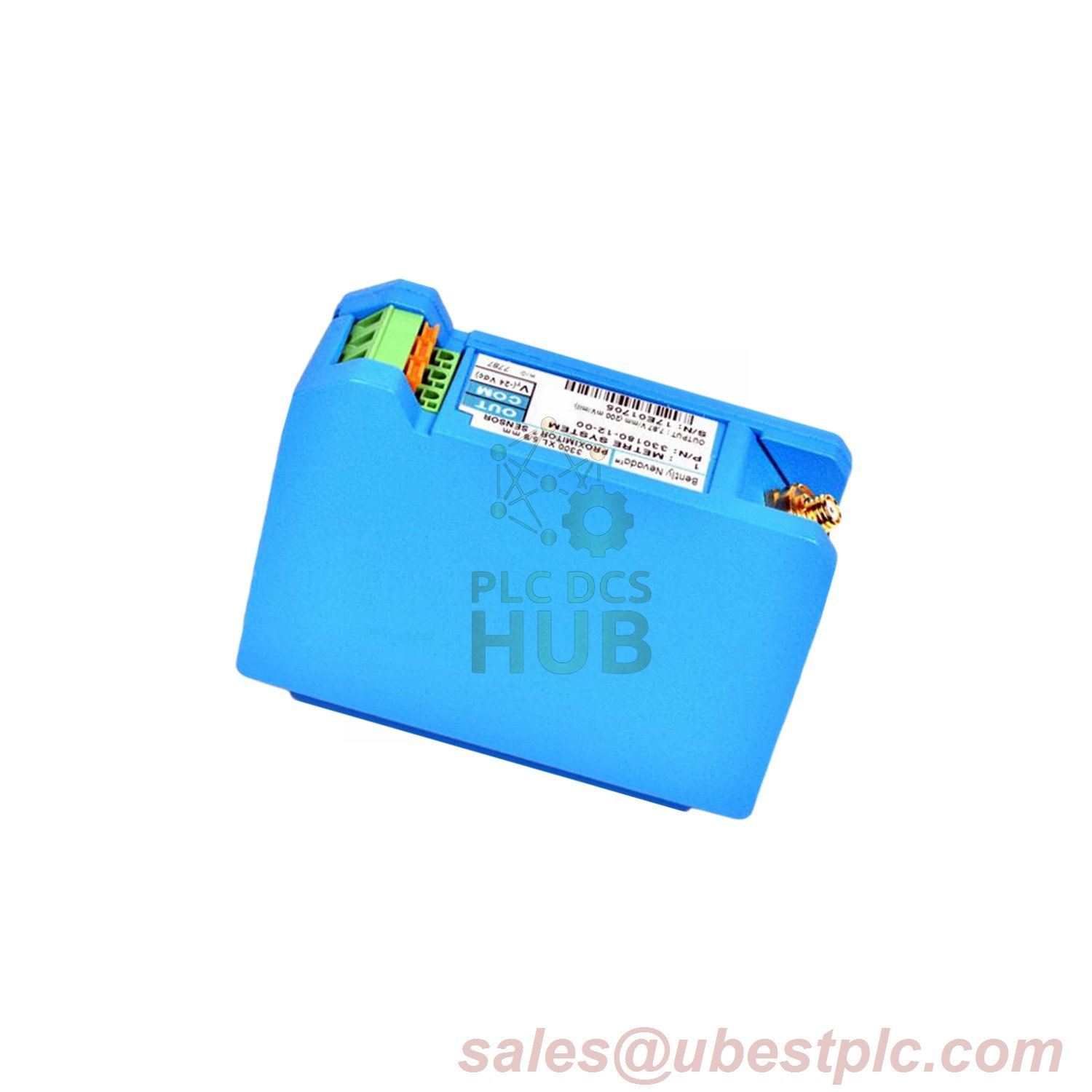

The 330180-12-05 is a high-performance proximity sensor system engineered for hazardous area monitoring. With a 1.0-meter system length and CSA/ATEX/IECEx certifications, it delivers superior RFI/EMI immunity and supports DIN-rail or panel mounting. Ideal for industrial applications requiring CE compliance without shielded conduit.
Technical Specifications
| Model | 330180-12-05 |
|---|---|
| System Length | 1.0 m (3.3 ft) | No mounting hardware included |
| Input Compatibility | 3300-series 5 mm & 8 mm probes with extension cables |
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) | -23 Vdc to -26 Vdc with barriers |
| Output Resistance | 50 Ω |
| Material | A308 aluminum housing | Gold-plated brass/beryllium copper connectors |
| Temperature Range | -52°C to +100°C (-62°F to +212°F) operating | -52°C to +105°C storage |
| Weight | 246 g (8.67 oz) |
Contact Information
For hazardous area configuration or DIN-rail mounting support:
Email: sales@ubestplc.com
