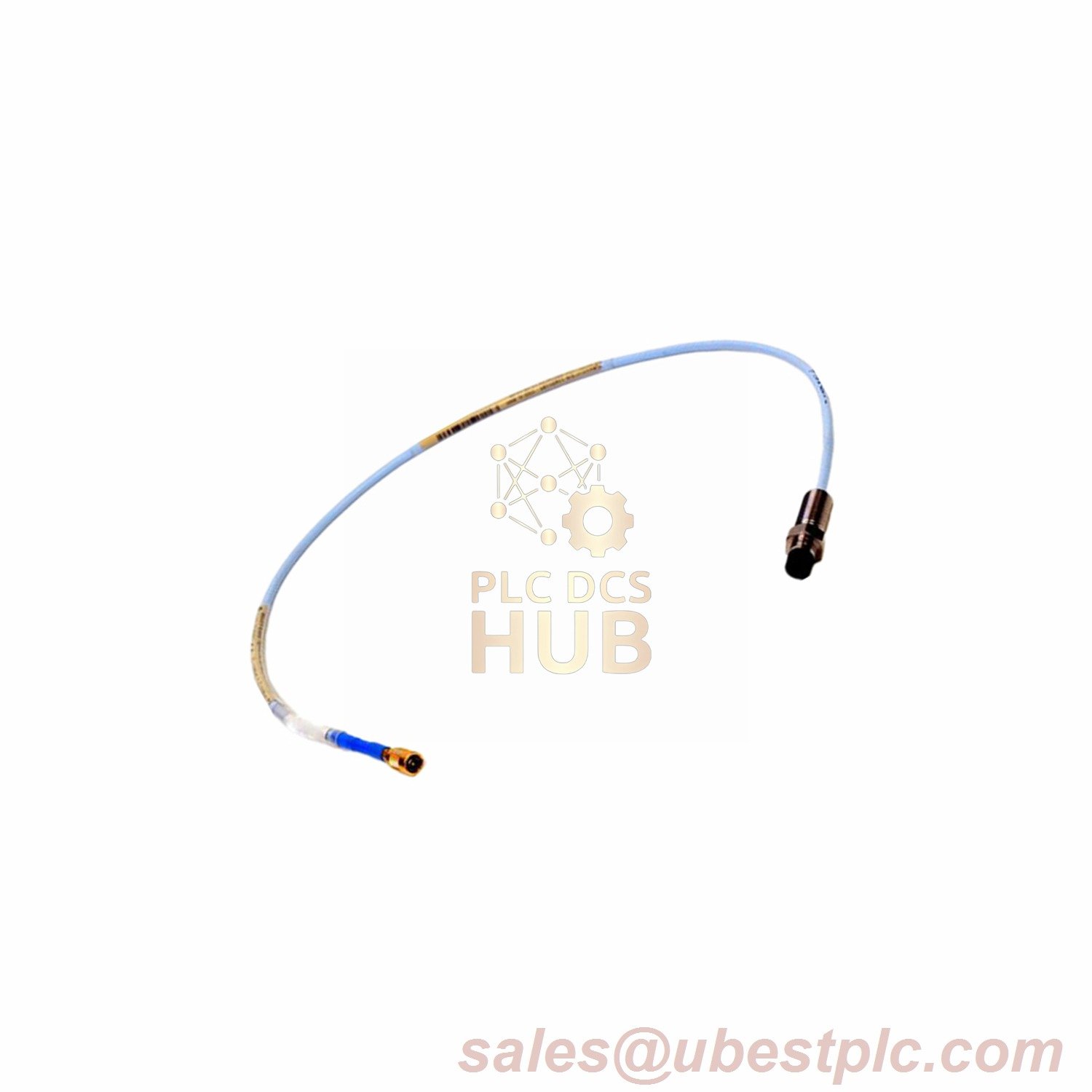

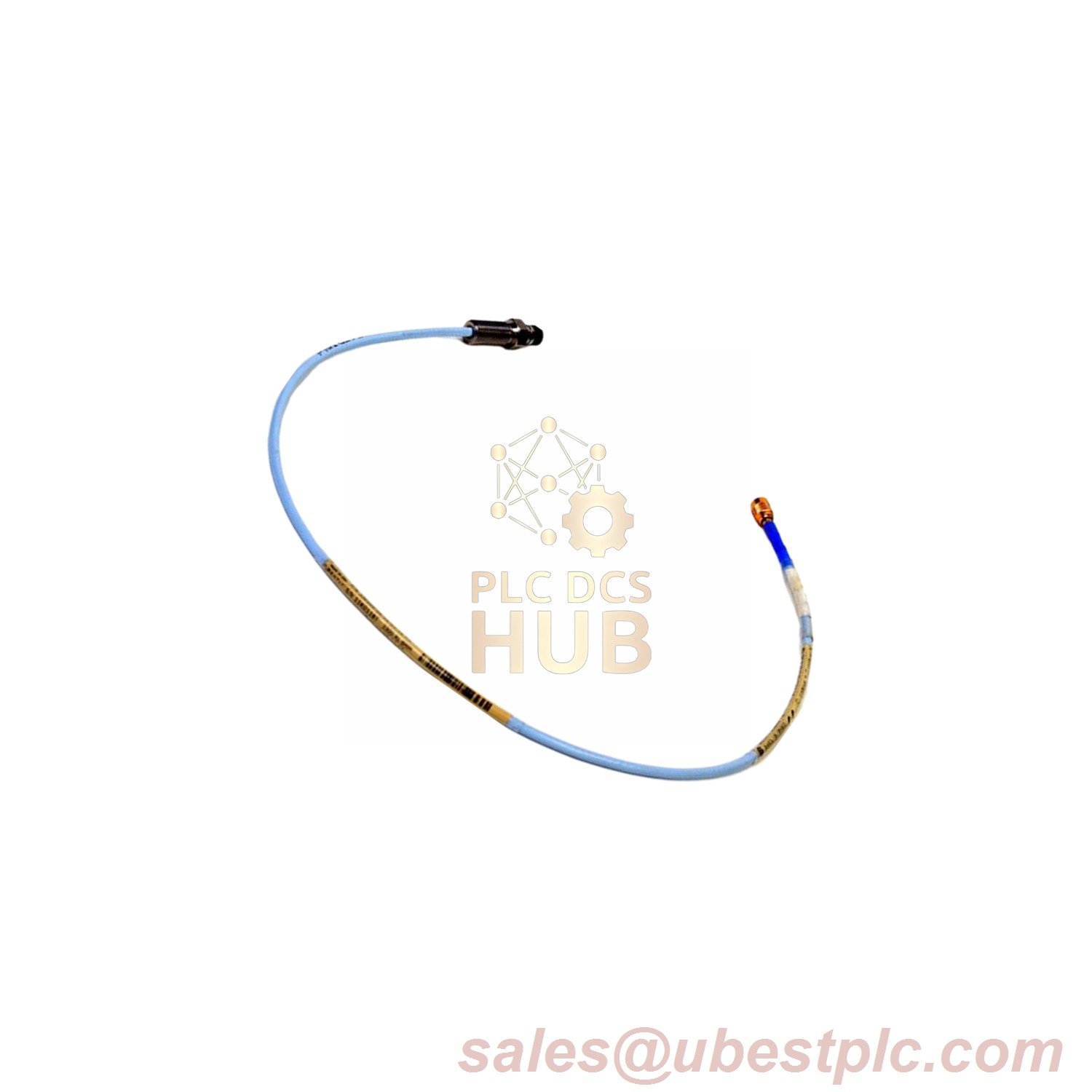

Bently Nevada 3300 XL 8 mm Reverse Mount Probe
Made in the U.S.A., this 2.0-meter probe 330105-02-12-20-12-05 combines FluidLoc cable technology with CSA, ATEX, and IECEx certifications for hazardous environments. Featuring a PPS tip, stainless steel housing, and Viton® O-ring seal, it delivers precision in extreme conditions. Note: FluidLoc cables are rarely required due to existing probe sleeves—evaluate application needs before selection.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330105-02-12-20-12-05 |
| Suffix Codes | 20: 2.0 m Total Length 12: ClickLoc + FluidLoc Cable 05: CSA/ATEX/IECEx Certifications |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| DC Resistance (2.0 m) | 7.88 Ω ± 0.50 |
| Temperature Range | Standard: -52°C to +177°C Extended: -52°C to +218°C (tip) |
| Cable Options | Standard (FEP): 0.5–9 m Extended (PFA): 0.5–9 m Armor: Optional SST with FEP jacket |
| Tensile Strength | 330 N (probe) / 270 N (cable) |
Contact Us: For application-specific guidance or certifications, email sales@ubestplc.com.
