Description

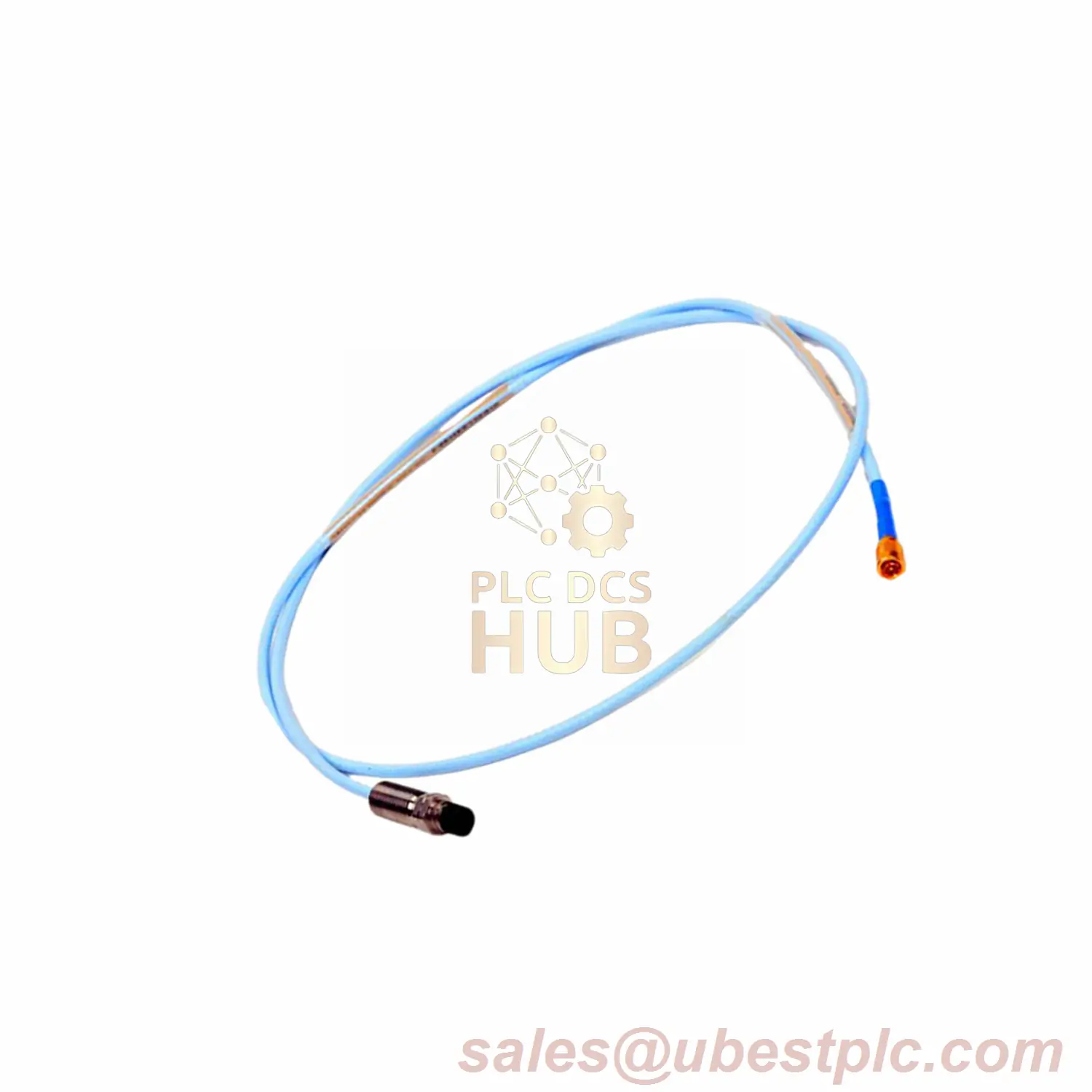

Bently Nevada 3300 XL 8mm Reverse Mount Proximity Probe (0.5m)
Compact vibration monitoring solution for space-constrained installations. U.S.-made with industrial-grade materials. Perfect for OEM integration and predictive maintenance systems.
KEY SPECIFICATIONS
- Brand: Bently Nevada
- Model: 330106-05-30-05-02-00
- Series: 3300 XL 8mm Reverse Mount
- Resistance: 7.45Ω ±0.50 (0.5m length)
- Cable: 0.5 meter FEP insulated
- Thread: M10×1 (15mm max engagement)
- Temp Range: -52°C to +177°C
- Weight: 161.5g (0.5m assembly)
PROBE CONSTRUCTION
- Tip: PPS polymer
- Case: AISI 303/304 SST
- Seal: Viton® O-ring
- Connector: ClickLoc coaxial (gold-plated)
PERFORMANCE DATA
- Humidity: <3% ASF drift @ 93% RH
- Pressure: Differential sealing (contact for testing)
- Tensile Strength: 330N probe-to-lead
- Cable Options: 0.5-9m FEP/PFA
INSTALLATION NOTES
- Max thread engagement: 15mm
- Min bend radius: 25mm from tip
- Avoid installation below -34°C
- Storage temp range matches operating
MAINTENANCE TIPS
- Verify DC resistance quarterly
- Inspect O-ring during service
- Check for cable kinks/abrasion
- Calibrate after extreme temp exposure
SHIPPING & PACKAGING
- Probe assembly (0.5m)
- Protective end caps
- Specification sheet
- Global delivery via FedEx/UPS/DHL
TECHNICAL FAQ
Q: What does “00” agency approval mean?
A: No safety certifications included – for non-hazardous areas
Q: Can I order armored cable?
A: Yes – optional SST armor with FEP jacket
Q: Is calibration required?
A: Factory-calibrated; field verification recommended
Q: Difference between FEP and PFA cables?
A: PFA handles higher temps (260°C vs 177°C)
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
