Bently Nevada | 3300 XL Standard Extension Cable 330130-045-00-BR

Description

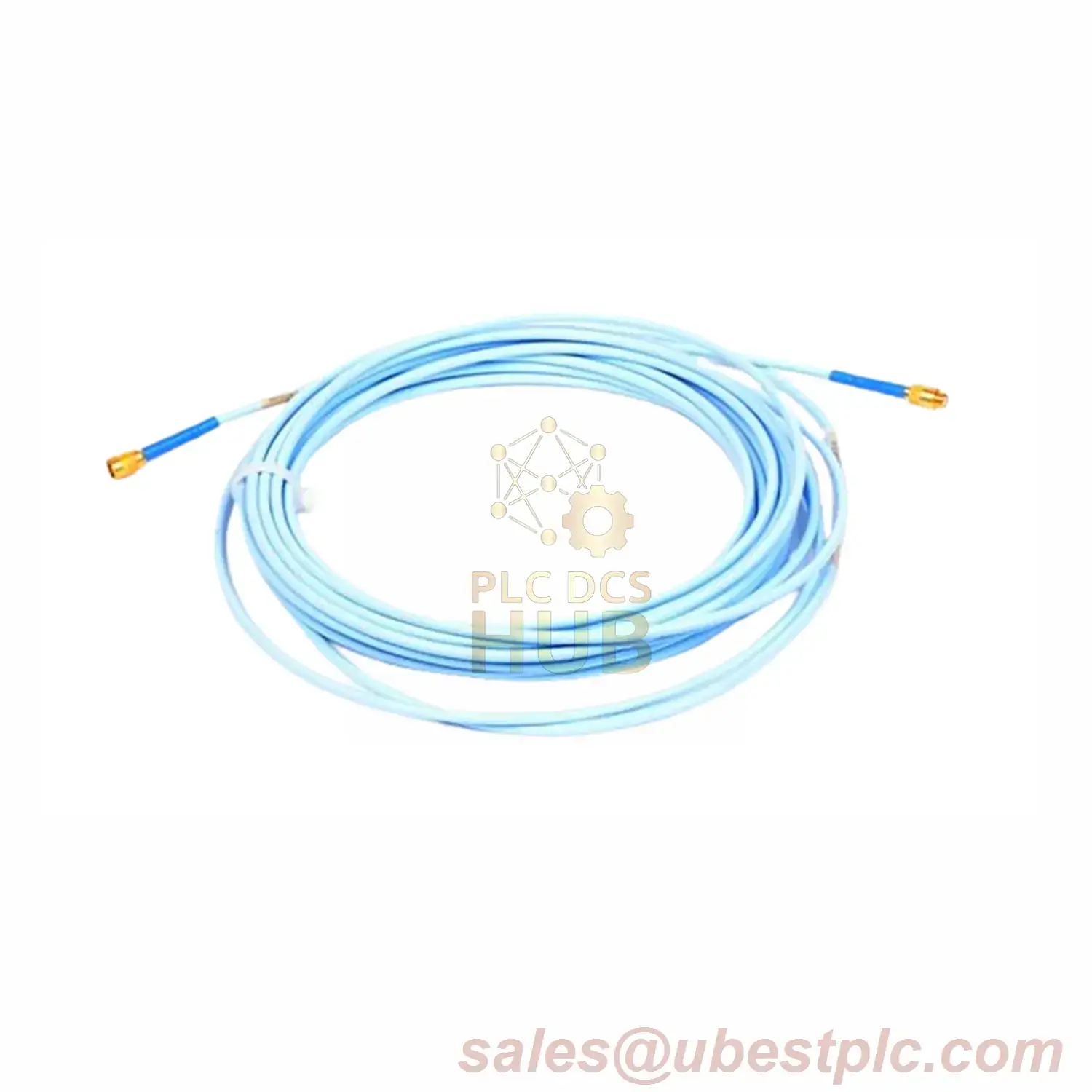

Bently Nevada 330130-045-00-BR – 4.5m Standard Extension Cable (Brazil-Approved)

Model Code Breakdown

330130-045-00-BR
├─ 330130 = 3300 XL extension cable
├─ 045 = 4.5m (14.8ft) length
├─ 00 = Standard (non-armored) cable
└─ BR = Brazil-specific approvals

Key Features at a Glance

• ⚖️ Lightweight: 34g/m (0.4oz/ft) – 0.204kg total
• ⚡ Low Resistance: 0.99Ω ±0.15Ω (center), 0.30Ω ±0.06Ω (shield)
• ???? Stable Signal: 69.9pF/m (21.3pF/ft) capacitance
• ????️ Humidity Tough: <3% scale factor change @93% RH (56 days)

Brazil-Specific Applications

• ???? Sugar Mills: Connect sensors in clean, low-stress processing areas
• ⚡ Hydropower Plants: Monitor turbine sensors in non-corrosive environments
• ???? Agricultural Machinery: Link probes in dust-free control cabinets

Technical Performance

• ???? Field Wiring: 0.2-1.5mm² (16-24AWG) triad cable (max 305m)
• ???? Power: -17.5V to -26Vdc (12mA max) – works with 3300 XL probes
• ???? Linear Range: 0.25-2.3mm (10-90 mils) with 3300 XL systems

Installation Tips

• ⚠️ Oil Zones: Avoid silicone tape (included) – use connector protectors instead
• ???? Bend Radius: Keep >25.4mm (1.0in) to prevent signal loss
• ???? Includes: Silicone tape (for non-oil use), quick-start guide

Shipping & Warranty

• ???? Fast Delivery: FedEx/UPS/DHL
• ????️ Warranty: 12 months factory coverage
