Bently Nevada 330101-00-11-15-12-CN | Durable 3300 XL 8mm Proximity Probe

Description

Industrial-Grade 8mm Vibration Sensor

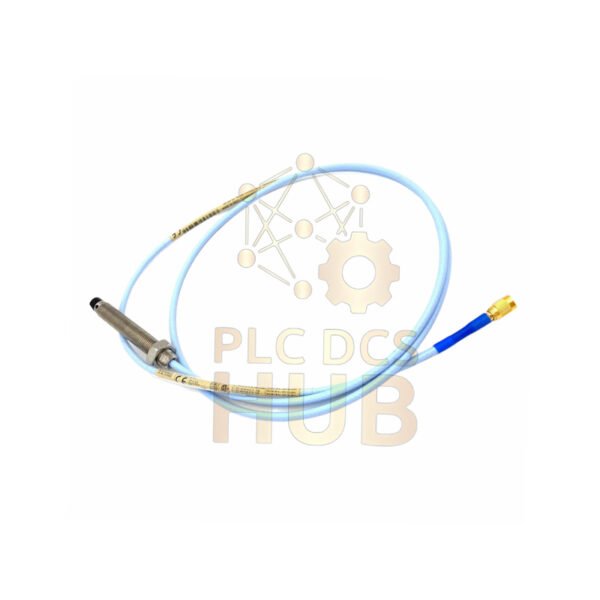

This is the Bently Nevada 330101-00-11-15-12-CN proximity probe. It is part of the rugged 3300 XL 8mm Probes family. Designed for tough environments, it provides reliable machine health monitoring. Made in the U.S.A.

Product Configuration: What Each Code Means

• 330101
  • Base: 3300 XL 8mm Probe
  • Thread: 3/8-24 UNF
  • Armor: Without armor
• 00
  • Unthreaded Length: 0.0 inches
• 11
  • Case Length: 1.1 inches
• 15
  • Cable Length: 1.5 meters (4.9 feet)
• 12
  • Connector: Mini ClickLoc
  • Cable Type: Special FluidLoc cable
• CN
  • Approval: Country-specific certifications

Core Specifications & Benefits

• Superior Strength: Features patented TipLoc and CableLoc designs. Cable pull strength is 330 N (75 lbf).
• Leak Prevention: FluidLoc cable stops oil and liquids from leaking along the cable core.
• Rugged Design: 8mm body and thicker tip encapsulation for maximum physical durability.
• Electrical Data:
  • Probe Resistance (1.5m): 7.73 ± 0.50 Ω
  • Linear Range: 2 mm (80 mils)
  • Recommended Gap: -9 Vdc (~1.27 mm / 50 mils)
  • Scale Factor: 7.87 V/mm (200 mV/mil)
• Robust Materials:
  • Tip: Molded PPS plastic
  • Case: AISI 303/304 Stainless Steel
  • Seal: Viton® O-ring
• Environmental Limits:
  • Operating Temp: -52°C to +177°C (Standard)
  • Extended Range: Up to +218°C for the tip.
  • Warning: Avoid long periods below -34°C.
  • Humidity: Less than 3% ASF change at 93% RH.
• Installation:
  • Torque: 11.2 N•m (100 in-lbf)
  • Max Thread Engagement: 0.563 inches
• Cable & Wiring:
  • Field wiring up to 305 meters (1000 feet).
  • Use 3-conductor shielded triad cable.

Expert FAQ & Guidance

What is the key advantage of the FluidLoc cable (Option 12)?

It prevents fluid ingress. In gearboxes or compressors, oil can travel inside the cable to the connector. FluidLoc blocks this path, protecting your monitoring system from damage and false readings.

When should I choose an 8mm probe over a smaller one?

Choose the 330101-00-11-15-12-CN for harsh conditions. Its thicker body and tip resist impact and abrasion better. It is ideal for machines with high vibration or risk of physical contact.

What does “Country Specific (CN)” approval mean for my order?

This probe is built to meet certification rules for specific countries. Please confirm your local safety requirements (like NEPSI in China) with our team before purchase to ensure compliance.

How does the extended temperature range benefit me?

It allows reliable operation near hot equipment like steam turbines or gas compressors. The probe tip can handle up to 218°C, reducing thermal drift and signal error in high-heat areas.

What is your after-sales support?

We offer a 12-month warranty. We ship worldwide via FedEx, UPS, and DHL for speed and reliability. For technical help, contact us on WhatsApp: +86 158 8020 0923.
