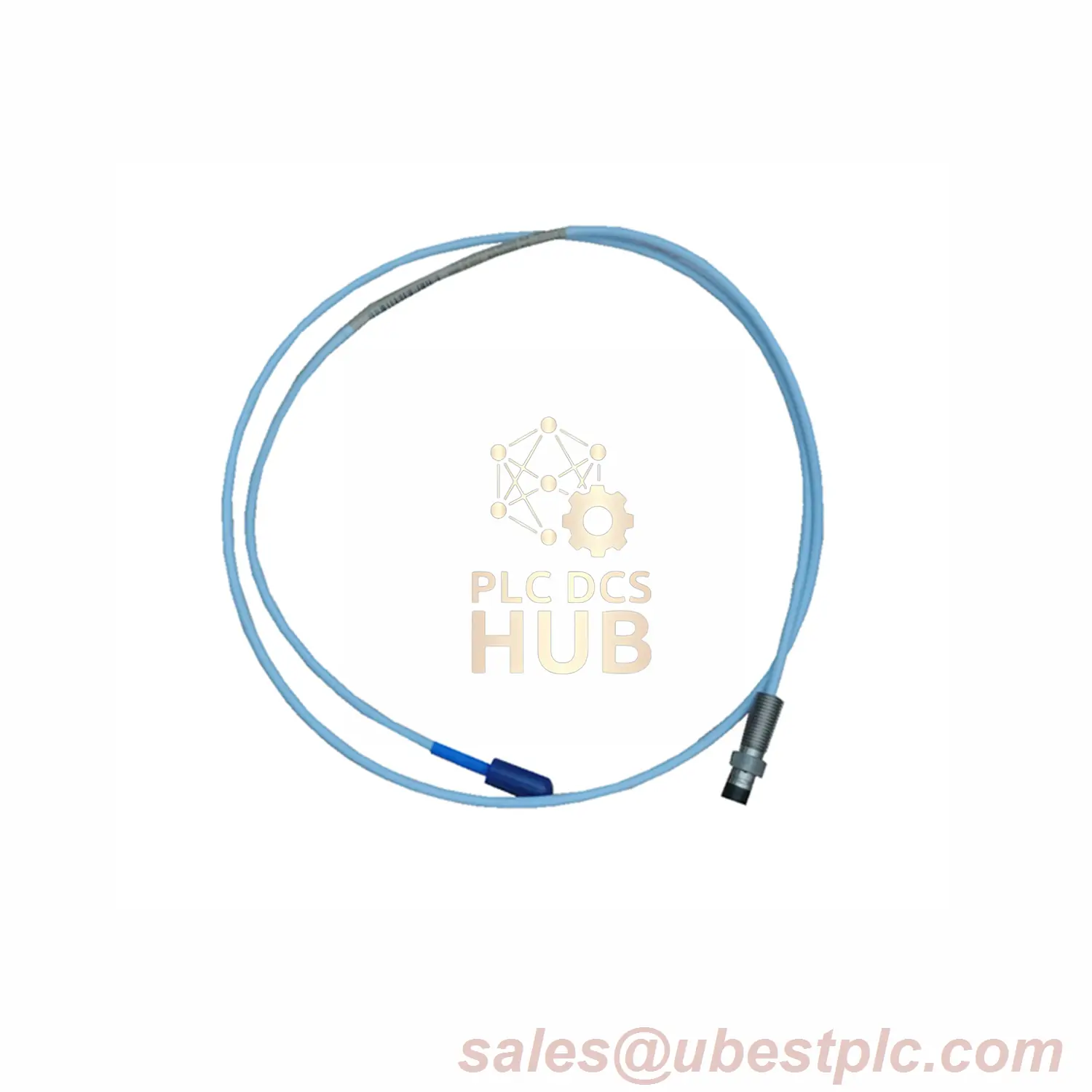

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-15-20-02-05) is a high-performance vibration monitoring sensor designed for rugged industrial environments. Featuring a 3/8-24 UNF thread and 8 mm tip, it offers enhanced durability with patented TipLoc and CableLoc technologies for secure connections.
Technical Data
- Brand: Bently Nevada
- Model: 330101-00-15-20-02-05
- Suffix Details: Unthreaded Length (00), Case Length 1.5″ (15), Total Length 2.0m (20), ClickLoc Connector (02), CSA/ATEX/IECEx (05)
- Range: 2 mm (80 mils), linear from 0.25 mm (10 mils)
- Accuracy: ±5% (Standard), ±6.5% (Extended Temp)
- Output: 7.87 V/mm (200 mV/mil)
- Operating Temp: -52°C to +177°C (Standard), up to +218°C (Extended)
- Material: PPS tip, AISI 303/304 stainless steel case
Installation Guide
- Mount using 3/8-24 UNF thread.
- Ensure CableLoc provides 330 N pull strength.
- Avoid temperatures below -34°C to prevent seal damage.
Certifications
- CSA, ATEX, IECEx approved.
Packaging & Warranty
- Includes: Probe
- Warranty: 1-year limited warranty.
Application Cases
- Monitor turbine, compressor, or pump vibrations.
- Used in oil/gas, power generation, and heavy machinery.
