Product Highlights

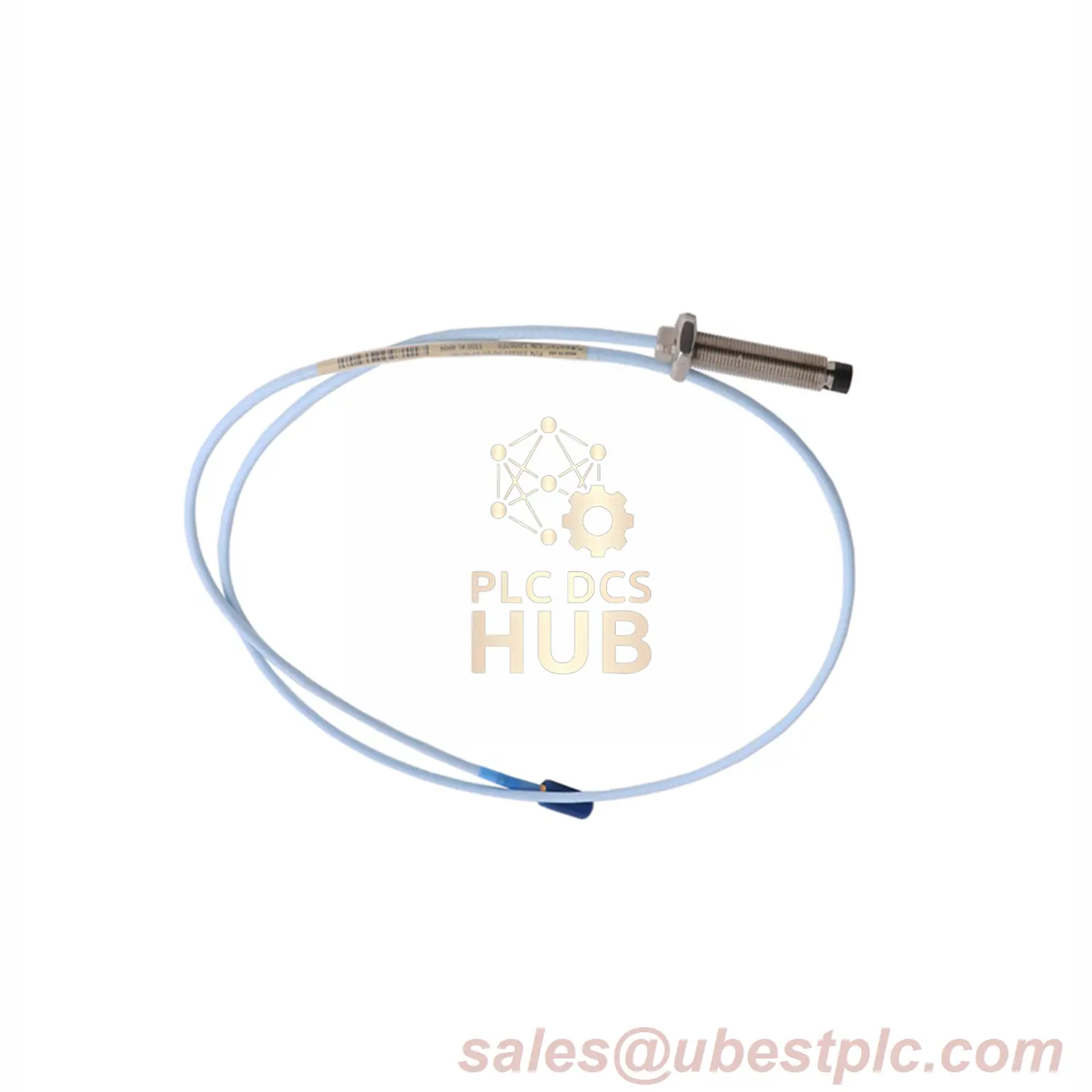

Bently Nevada 3300 XL 8 mm Probe (Model: 330101-00-32-10-02-CN) delivers precision vibration monitoring with a rugged design. Built in the U.S.A with a 3.2-inch stainless steel case and FluidLoc leak-proof cable option, it’s ideal for extreme industrial environments.
Key Specifications
- Brand: Bently Nevada
- Full Model: 330101-00-32-10-02-CN (00=0.0in unthreaded, 32=3.2in case, 10=1.0m cable, 02=ClickLoc connector, CN=country approvals)
- Material: PPS tip, AISI 303/304 stainless steel case
- Weight: 323 g/m (11.4 oz)
Performance Data
- Measurement Range: 0.25 mm to 2.3 mm (10–90 mils)
- Accuracy: ±0.025 mm (1 mil) for 1/5m systems
- Humidity Resistance: <3% ASF change at 93% RH (56 days)
- Cable Pull Strength: 330 N (75 lbf)
- Pressure Seal: Viton® O-ring (custom testing available)
Electrical Features
- DC Resistance: 7.59 Ω ±0.50 (1.0m cable)
- Capacitance: 69.9 pF/m (21.3 pF/ft)
- Output Signal: 7.87 V/mm (200 mV/mil)
- Max Cable Length: 305 meters (1,000 feet)
Extreme Durability
- Temp Range: -52°C to +218°C (probe tip)
- Cable/Connector Temp: -51°C to +260°C
- Warning: Avoid storage below -34°C (-30°F)
Industrial Applications
- Steam turbine shaft alignment monitoring
- Paper mill roller vibration analysis
- Mining conveyor belt motor diagnostics
- Hydroelectric generator health checks
What’s Included?
- 8 mm probe with 1.0m cable
- ClickLoc connector
- Optional COO certificate
