Description
Product Overview

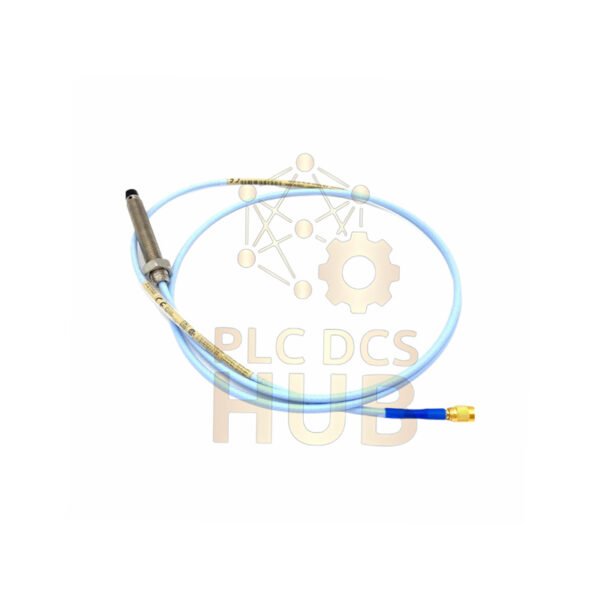

The Bently Nevada 330101-00-36-05-02-05 is a high-performance 3300 XL 8mm Probe
designed for vibration and position monitoring in rotating machinery.
Model Structure (Indented Code Tree)
- 330101
- 00 – Unthreaded length: 0.0 in
- 36 – Case length: 3.6 in
- 05 – Probe length: 0.5 m (1.6 ft)
- 02 – Miniature ClickLoc coax connector
- 05 – CSA / ATEX / IECEx approvals
Mechanical Design Strength
- 8 mm probe body for higher strength
- Thick PPS molded probe tip
- Stainless steel case (AISI 303 / 304)
- Resists shock and physical impact
Electrical Characteristics
- Nominal probe resistance: 7.45 Ω ± 0.50
- Linear range: 0.25 to 2.3 mm
- Output range: approx. -1 to -17 Vdc
- Recommended gap: -9 Vdc (1.27 mm)
Signal Performance
- Incremental scale factor: 7.87 V/mm
- Accuracy stable from 0°C to +45°C
- Low deviation across linear range
- Consistent output over long periods
Cable & Connector Features
- Patented TipLoc probe bonding
- CableLoc design with 330 N pull strength
- Miniature ClickLoc connector
- Secure signal transmission
Environmental Limits
- Standard temp range: -52°C to +177°C
- Extended tip temp: up to +218°C
- Cable temp rating: up to +260°C
- Humidity drift less than 3%
Pressure & Sealing
- Viton® O-ring pressure seal
- Designed for differential pressure
- Oil leak prevention capability
- Optional FluidLoc support
Why Choose 8mm Probes
- Higher durability than smaller probes
- Better resistance to machine vibration
- Longer service life
- Preferred for harsh environments
Packaging, Shipping & Warranty
- Original factory packaging
- Fully tested before shipment
- Shipping via FedEx, UPS, DHL
- 12-month warranty
Professional FAQ
- Is this probe suitable for high vibration machines?
Yes. The 8 mm body offers strong vibration resistance. - How do I choose between standard and extended temperature?
Choose extended if surface temps exceed 177°C. - Can this probe prevent oil leakage?
Yes. FluidLoc option blocks fluid paths. - Is ClickLoc better than threaded connectors?
Yes. It locks faster and reduces signal loss. - What should I check before ordering?
Confirm length code and connector type.
