Description

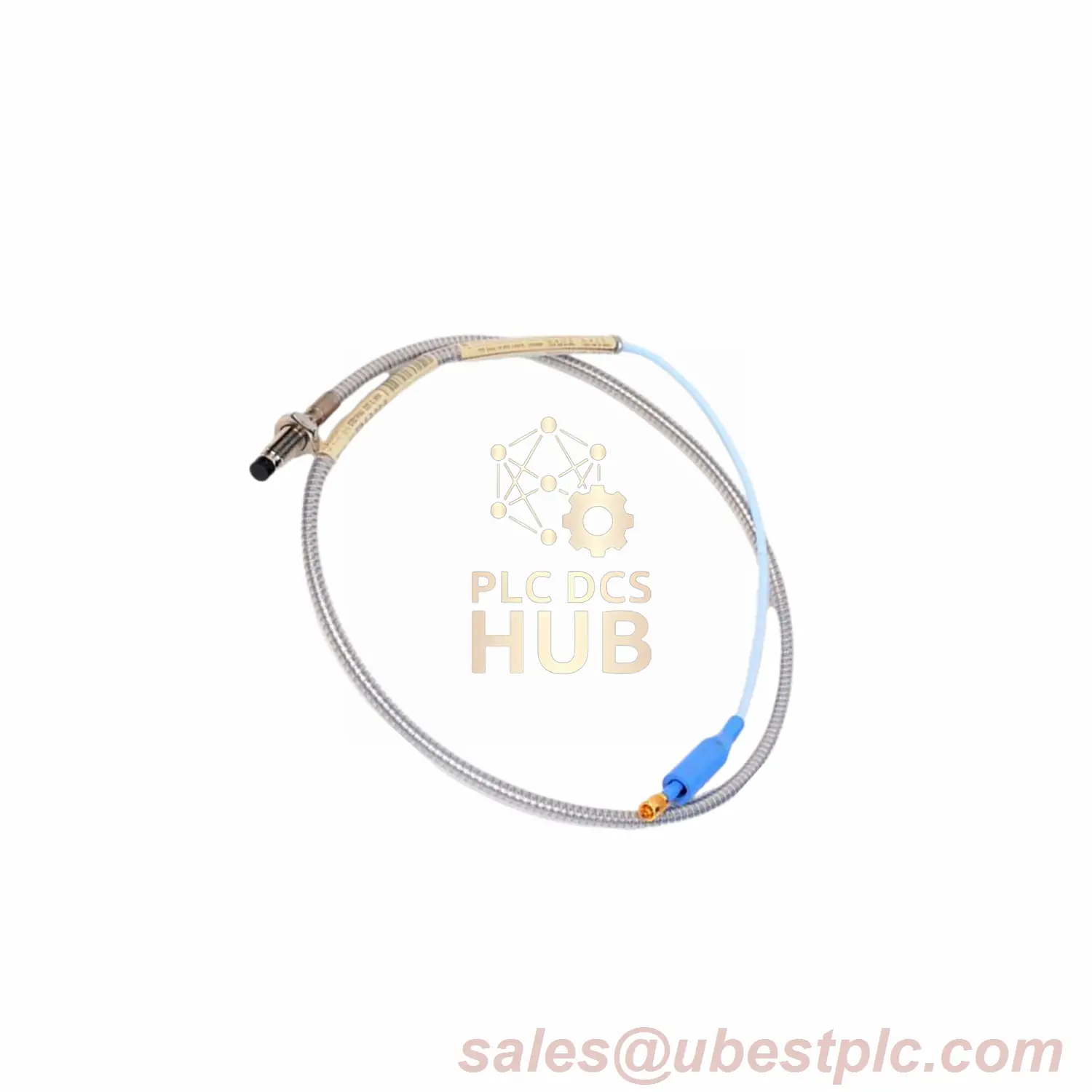

Bently Nevada 3300 XL 8 mm Proximity Probe
Model: 330103-00-03-05-02-05
Configuration Details
- Base Code: 330103 (8 mm Probe, M10x1 Thread)
- 00: Unthreaded Length = 0 mm
- 03: Case Length = 30 mm
- 05: Cable = 0.5 m (1.6 ft)
- 02: ClickLoc Miniature Connector
- 05: Certifications = CSA, ATEX, IECEx
Critical Specifications for 330103-00-03-05-02-05
Measurement Range: 0.25–2.3 mm (10–90 mils)
Output Signal: -1 to -17 Vdc
DC Resistance: 7.45 Ω ±0.50 @ 0.5 m
Output Signal: -1 to -17 Vdc
DC Resistance: 7.45 Ω ±0.50 @ 0.5 m
Temperature Limits:
– Standard: -52°C to +177°C
– Extended: +260°C (Cable)
Weight: 323 g/m (11.4 oz)
– Standard: -52°C to +177°C
– Extended: +260°C (Cable)
Weight: 323 g/m (11.4 oz)
Certifications & Safety
- ATEX/IECEx: Zone 0 (AEx/Ex ia IIC T5-T1 Ga)
- CSA: Compliant for North American hazardous locations
- Humidity Resistance: <3% ASF drift @ 93% RH (IEC 68-2-3)
Industrial Use Cases
Offshore Oil Rig Compressors: Monitors shaft vibration in Zone 1 hazardous areas with ATEX compliance.
Wind Turbine Gearboxes: 30 mm compact case fits narrow housings; operates at -30°C to +80°C.
Installation Notes
- Thread Engagement: M10x1 (Max 15 mm)
- Wiring: 16–24 AWG shielded triad cable (up to 305 m)
- Pressure Seal: Viton® O-ring (custom testing available)
Contact Support: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
