Description
Multi-Certified Industrial Sensor

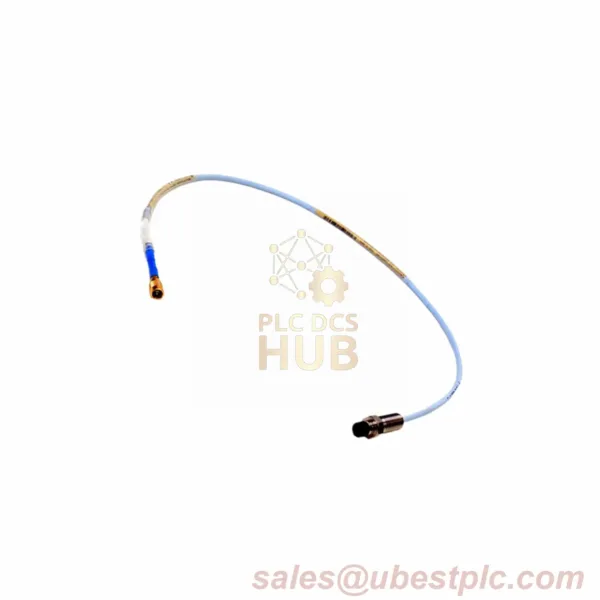

The Bently Nevada 330103-00-10-10-01-05 integrates a 100mm stainless steel housing with enhanced connector protection for critical infrastructure monitoring. Designed with triple agency certifications and M10x1 threading, this 8mm proximity probe withstands chemical exposure while maintaining ±0.25% linearity in explosive environments.
Technical Parameters
- Full Suffix: 00-10-10-01-05
- 00: Full-threaded installation
- 10: 100mm ruggedized case
- 01: ClickLoc + IP69K protector
- 05: Global explosion certifications
- Dynamic Response:
- Rise time: 8μs (10-90% scale)
- Bandwidth (-3dB): DC to 25kHz
Certification Details
- ATEX: II 1G Ex ia IIC T4
- IECEx: Ex ia IIC T4 Ga
- CSA: Class I, Div 1, Groups A-D
Installation Specifications
- Mounting torque: 14 Nm ±10% (dry threads)
- Cable strain relief: 50N minimum pull strength
- EMC compliance: MIL-STD-461G RE102
Sector-Specific Applications
Petrochemical Reactors
Monitors catalyst bed vibrations in API 670-compliant systems exposed to H2S concentrations up to 10,000 ppm.
Aerospace Test Rigs
Measures turbine blade tip clearance during 15,000 RPM bench tests with ±2μm repeatability.
Certified Drawings: Request via sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
