Description

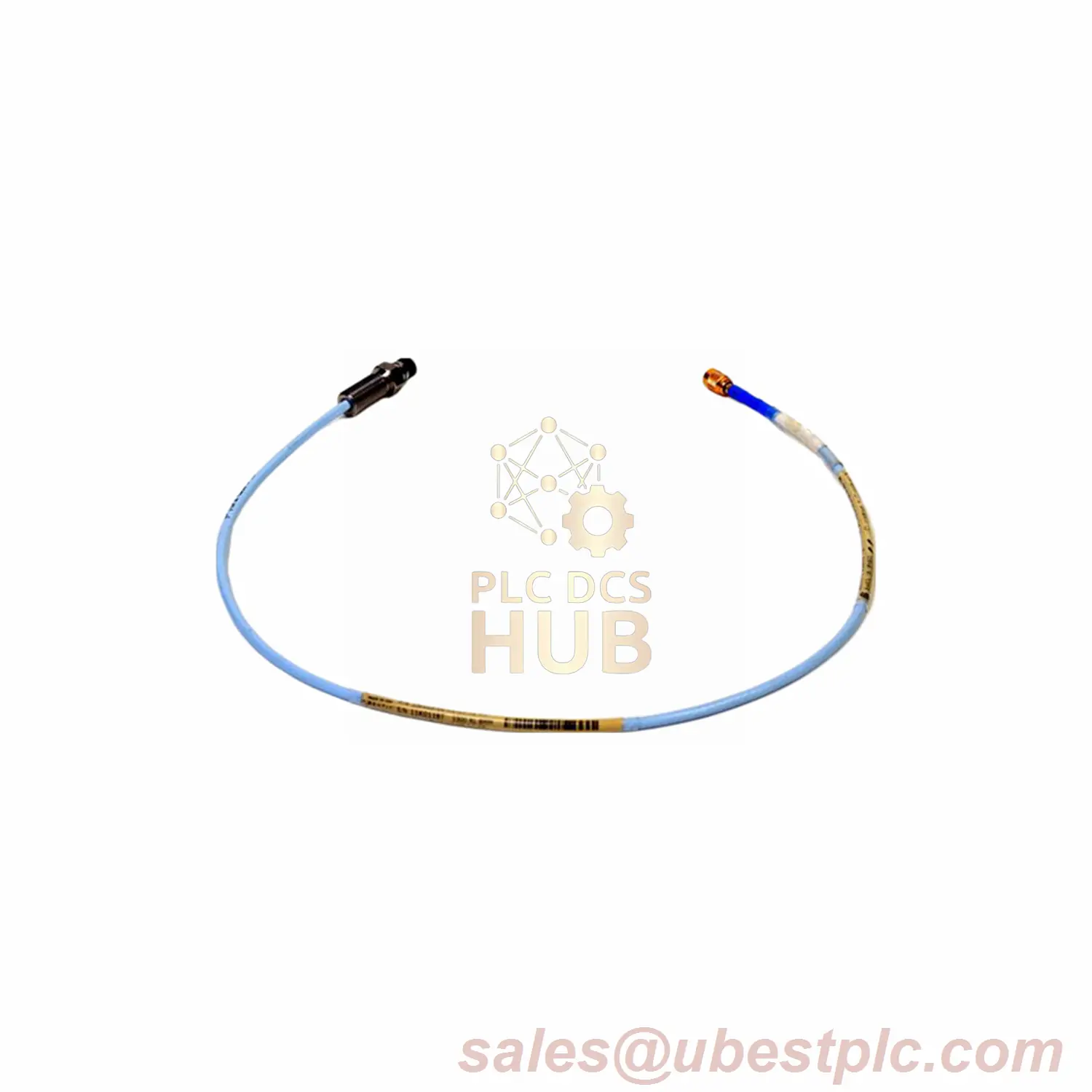

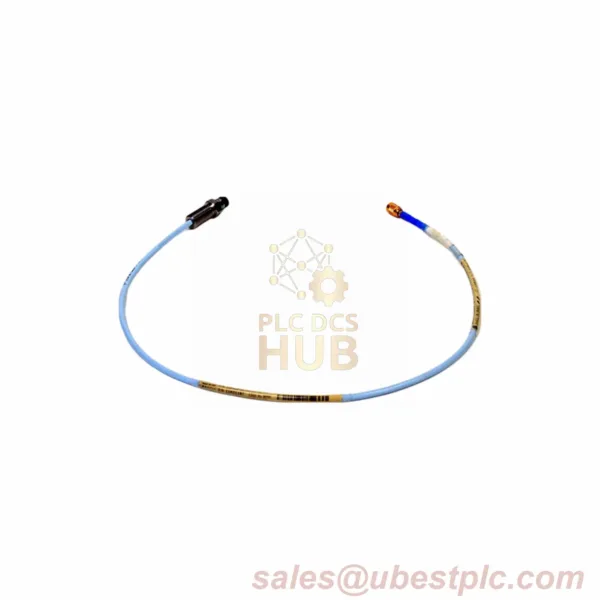

Bently Nevada 3300 XL 8mm Proximity Probe (330103-00-10-10-02-CN)
330103-00-10-10-02-CN: Extended-length industrial sensor with 100mm stainless steel housing, designed for deep-mount applications in extreme environments.
◉ Model Configuration
Suffix Analysis:
00: Zero unthreaded length
10: 100mm case dimension
10: 1.0m (3.3ft) cable
02: ClickLoc + standard cable
CN: China-specific certification
Advanced Technical Parameters
Electrical Characteristics:
Rise Time: 2μs (10-90% response)
Insulation Resistance: >100MΩ @ 500VDC
Transient Protection: ±100V surge immunity
Mechanical Performance:
Housing Straightness: 0.05mm/m tolerance
Thread Runout: <0.03mm TIR
Axial Load Capacity: 200N maximum
Environmental Specifications
Sealing & Protection:
IP69K rating (connector engaged)
Pressure Cycling: 50,000 cycles @ 2MPa
Chemical Compatibility: Resists SKYDROL 500B-4
Performance:
Thermal Shock: 50 cycles (-54°C↔+150°C)
Thermal EMF: <1μV/°C
Heat Dissipation: 0.8W max @ 25°C
Certification & Compliance
Regional Approvals:
GB3836-2010 Ex ia IIC T4 Gb
CCC-CNEx Certification
RoHS 3 (China GB/T 26572-2011)
Industry Standards:
API 670 5th Edition compliant
DIN EN ISO 10817-1 certified
NEMA 250 Type 4X rating
Application Example
Implements in steel rolling mill gearboxes monitoring 1,200 RPM bearing vibrations with ±0.8% linearity under continuous 150°C operation and heavy particulate contamination.
Contact: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
