Description

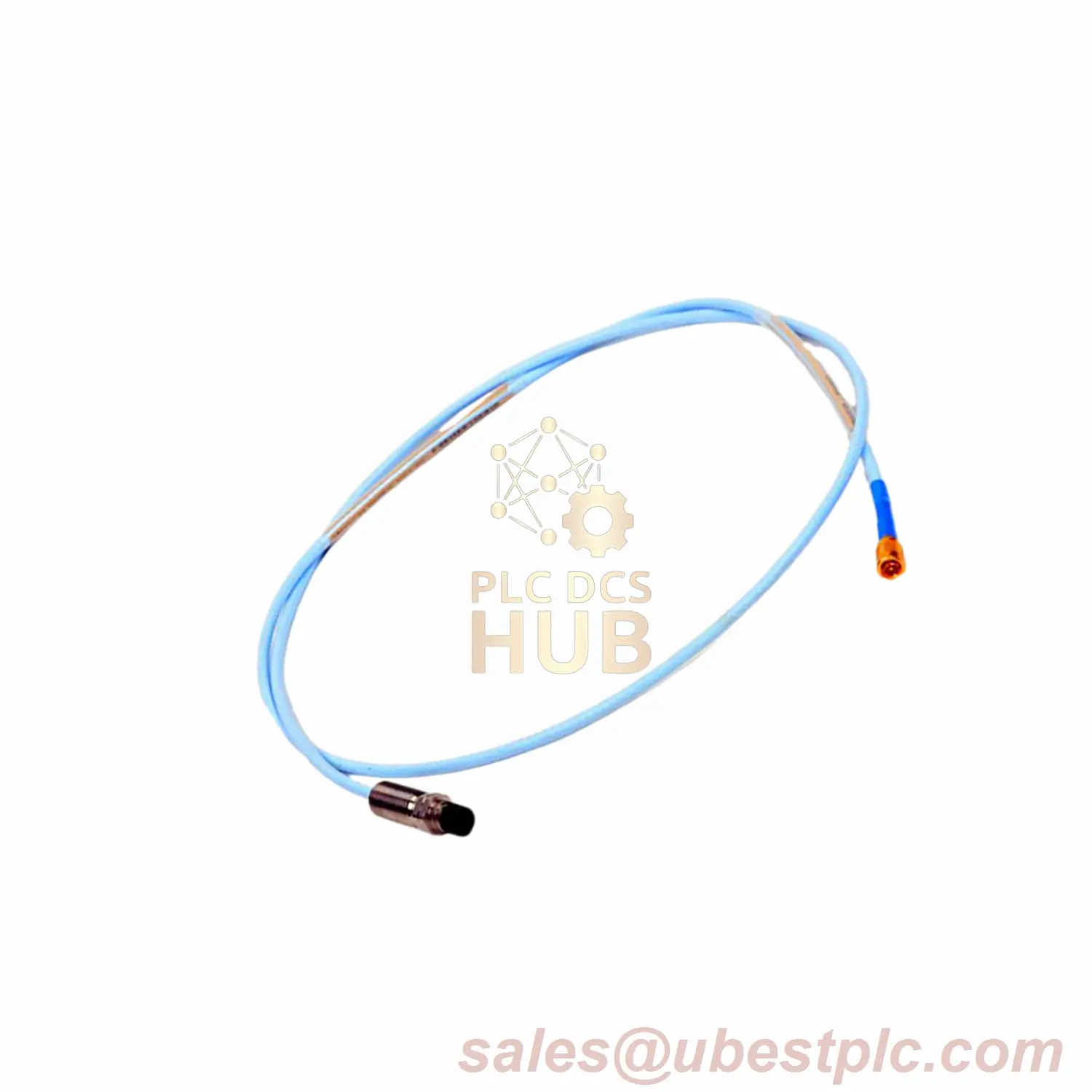

Bently Nevada 330106-05-30-15-12-00 Industrial Probe with FluidLoc
Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Model Number | 330106-05-30-15-12-00 | Cable Type | 75Ω Triaxial FluidLoc |
| Cable Length | 1.5m (4.9 ft) | Thread Size | M10×1 |
| Electrical Resistance | 7.73Ω ±0.50 | Weight | 485g (17.1 oz) |
| Tip Material | PPS Plastic | Case Material | 304 Stainless Steel |
| Max Cable Pull | 330N (75 lbf) | Min Temp Warning | -34°C (-30°F) |
Model Number Explained
- 330106: Probe series
- 05: Mounting style
- 30: Sensing range
- 15: 1.5m cable
- 12: FluidLoc connector
- 00: Country approvals
Environmental Ratings
- Temperature:
- Probe tip: -52°C to +218°C
- Cable: -51°C to +260°C
- Humidity: 93% for 56 days (IEC 68-2-3)
- Pressure Seal: Viton® O-ring design
Installation Guide
- Max thread depth: 15mm
- Do not install below -34°C
- Keep cable bends > 25mm radius
- Max connector pull: 270N (60 lbf)
Shipping & Warranty
- 12-month defect warranty
- Global shipping: FedEx, UPS, DHL
- Delivery time: 2-4 business days
- Tracking provided for all orders
Technical Questions
Q: When should I choose FluidLoc?
A: Essential for submerged applications without protective sleeves
Q: Cable insulation options?
A: Standard FEP or high-temp PFA versions available
Q: Can I get armored cable?
A: Optional stainless steel armor with FEP jacket
Q: Humidity tolerance?
A: Certified <3% variance after 8 weeks at 93% humidity
