Description

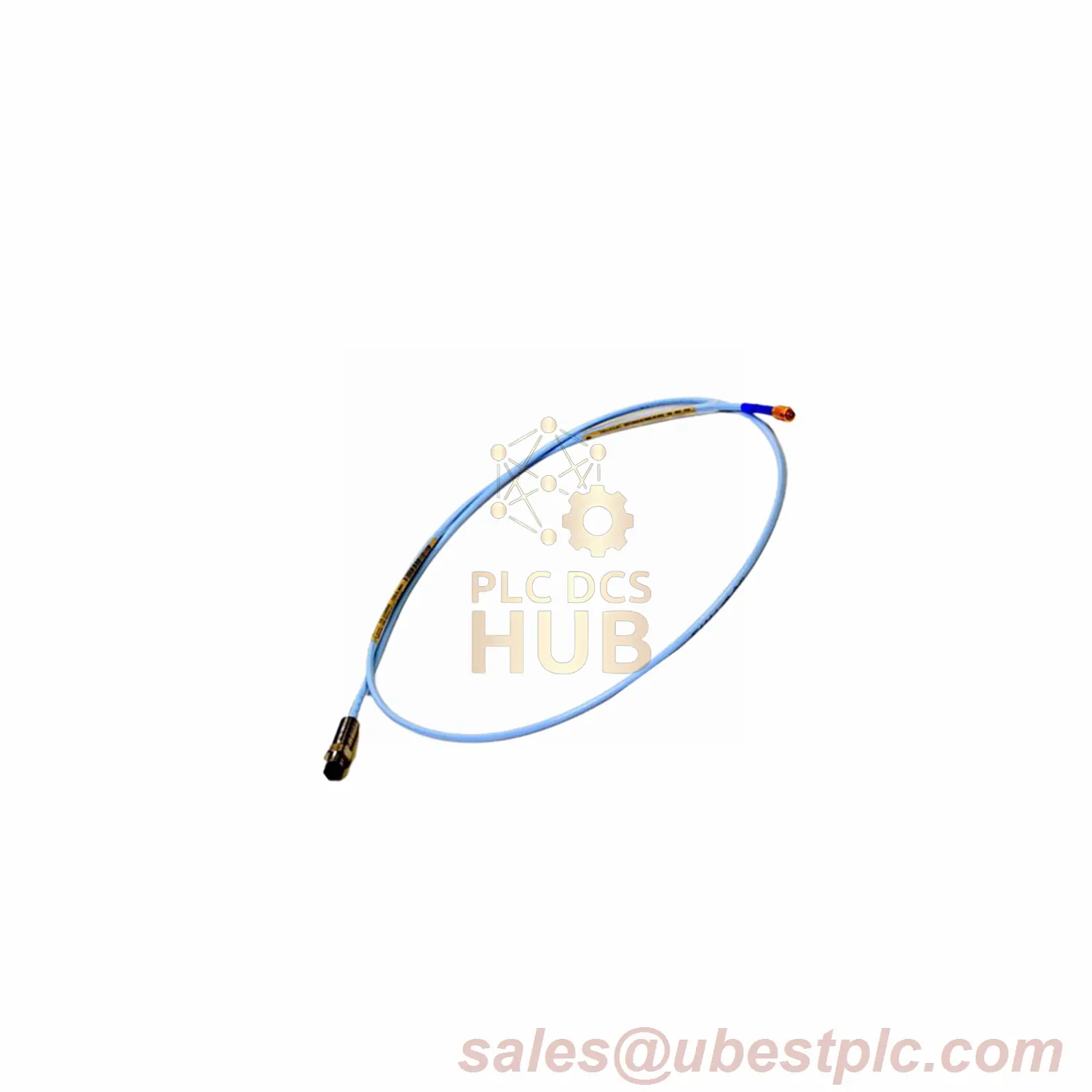

Bently Nevada 330106-05-30-20-12-00 Long-Reach Monitoring Probe
Key Advantages
- Extended 2.0m FluidLoc cable for hard-to-reach locations
- Heavy-duty 304 stainless steel construction
- Industrial temperature range: -52°C to +260°C
- Viton® O-ring pressure sealing technology
Technical Specifications
| Product Code | 330106-05-30-20-12-00 |
| Cable Length | 2.0 meters (6.6 ft) |
| Electrical Resistance | 7.88Ω ±0.50 |
| Total Weight | 646g (22.8 oz) |
| Thread Specification | M10×1 (15mm max depth) |
| Insulation Type | FEP Standard / PFA High-Temp |
Model Number Breakdown
- Base Model: 330106 (8mm Reverse Mount)
- Configuration: 05 (Mounting Option)
- Range Code: 30 (Measurement Range)
- Length: 20 (2.0m Cable)
- Connection: 12 (FluidLoc Connector)
- Certification: 00 (No Special Approvals)
Performance Metrics
- Temperature Limits:
- Tip: -52°C to +218°C
- Cable: -51°C to +260°C
- Humidity Resistance: <3% variance at 93% RH (56 days)
- Mechanical Strength:
- 330N pull force at probe case
- 270N at cable connectors
Installation Guide
- Max thread engagement: 15mm
- Critical temperature threshold: -34°C
- Minimum bend radius: 30mm
- Optimal cable slack: 10-15% extra length
Support & Services
- 12-month performance guarantee
- Global shipping: FedEx International, UPS Worldwide, DHL Express
- Standard delivery: 3-5 business days
