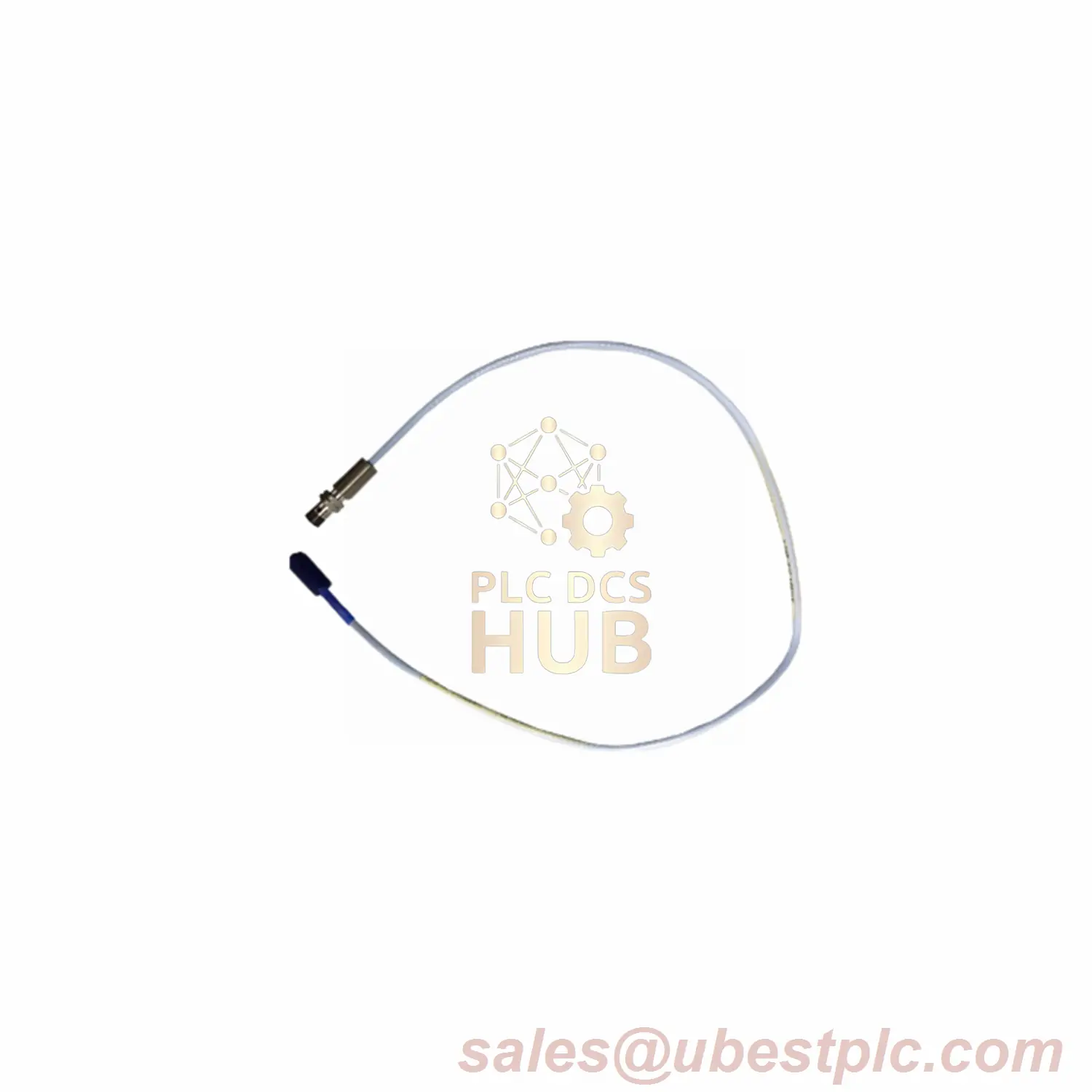

Bently Nevada – 330106-05-30-30-12-00 Reverse Mount Probe

Description

Bently Nevada 330106-05-30-30-12-00 – Heavy Duty Vibration Sensor

Industrial-Grade Machinery Protection

Precision 8mm reverse mount probe for tough conditions. Made in USA. 12-month warranty. Ships worldwide via FedEx, UPS, DHL.

Key Specifications

• Electrical Performance:
  • DC Resistance: 8.17Ω ±0.5
  • Cable Type: 75Ω triaxial with FEP insulation
  • Impedance: 75Ω
• Physical Build:
  • Case Material: Stainless steel (AISI 303/304)
  • Tip Material: PPS thermoplastic
  • Weight: 323 g/m (11.4 oz/ft)
• Environmental Rating:
  • Operating Temp: -52°C to +177°C
  • Max Thread Engagement: 15mm
  • Humidity Tolerance: <3% ASF change at 93% RH
• Connector System:
  • Type: Miniature ClickLoc coaxial
  • Cable: FluidLoc triaxial
  • Contacts: Gold-plated brass/copper

Installation Guide

• Thread Type: M10x1 metric
• Max Cable Tension: 330N (75 lbf)
• Seal Material: Viton O-ring
• Pressure Rating: Differential pressure only

Product Identification

• Manufacturer: Bently Nevada
• Base Model: 330106
• Mount Type: -05 (Reverse mount)
• Cable Length: -30 (3.0 meters)
• Connector: -12 (ClickLoc with FluidLoc)
• Certifications: -00 (Not required)

Warranty & Shipping

• 12-month manufacturer warranty
• Express global shipping: FedEx, UPS, DHL
• Tracking provided within 24 hours
• No customs delays

Technical Questions

Q: When should I choose FluidLoc cable?
A: Only for direct fluid exposure applications. Most installations don’t need it.

Q: Can this probe handle steam environments?
A: Yes, rated for high humidity and temperatures up to 177°C.

Q: Difference between standard and extended temp cable?
A: PFA-insulated cable handles +260°C vs FEP’s +177°C.

Q: Is pressure testing available?
A: Not standard. Contact us for custom pressure-sealed options.
