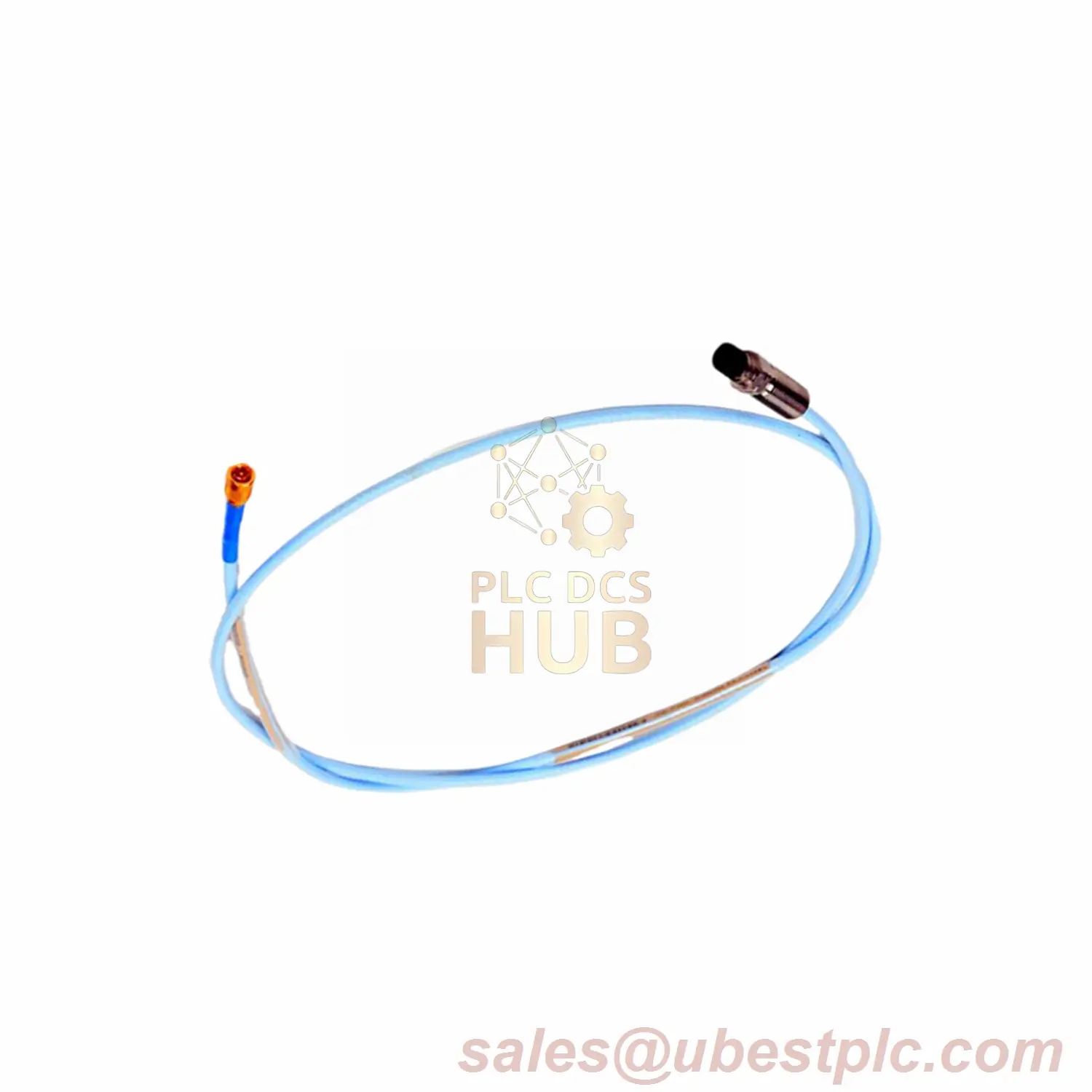

Bently Nevada – 330106-05-30-90-02-CN Reverse Mount Probe

Description

Bently Nevada Long-Reach Vibration Probe – 9m Industrial Sensor

Product Configuration

Full Product Code: 330106-05-30-90-02-CN
• 330106 = 8mm Reverse Mount Base
• 05-30 = Mechanical Configuration
• 90 = 9.0 meter cable
• 02 = ClickLoc Connector
• CN = Country Certifications

Core Measurements

• Resistance: 9.87 ± 0.50 Ω (9m length)
• Signal Output: 75Ω triaxial
• Temp Range: -52°C to +177°C
• Cable Pull Strength: 330N at probe
• Thread Spec: M10x1 (15mm max)

Enhanced Specifications

• Frequency Response: 0-12 kHz (±3dB)
• Cable Capacitance: 98 pF/m
• Insulation Resistance: >1000 MΩ at 25°C
• Shock Resistance: 100g for 11ms
• Vibration Limit: 20g (10-2000 Hz)

Installation Details

• Thread engagement: ≤15mm
• Cable bend radius: ≥25mm
• Storage temp: >-34°C
• Mounting torque: 15-25 N•m
• Humidity limit: 93% RH continuous

Package Includes

• Probe with 9m cable
• ClickLoc connector set
• Installation documentation
• 12-month performance warranty
