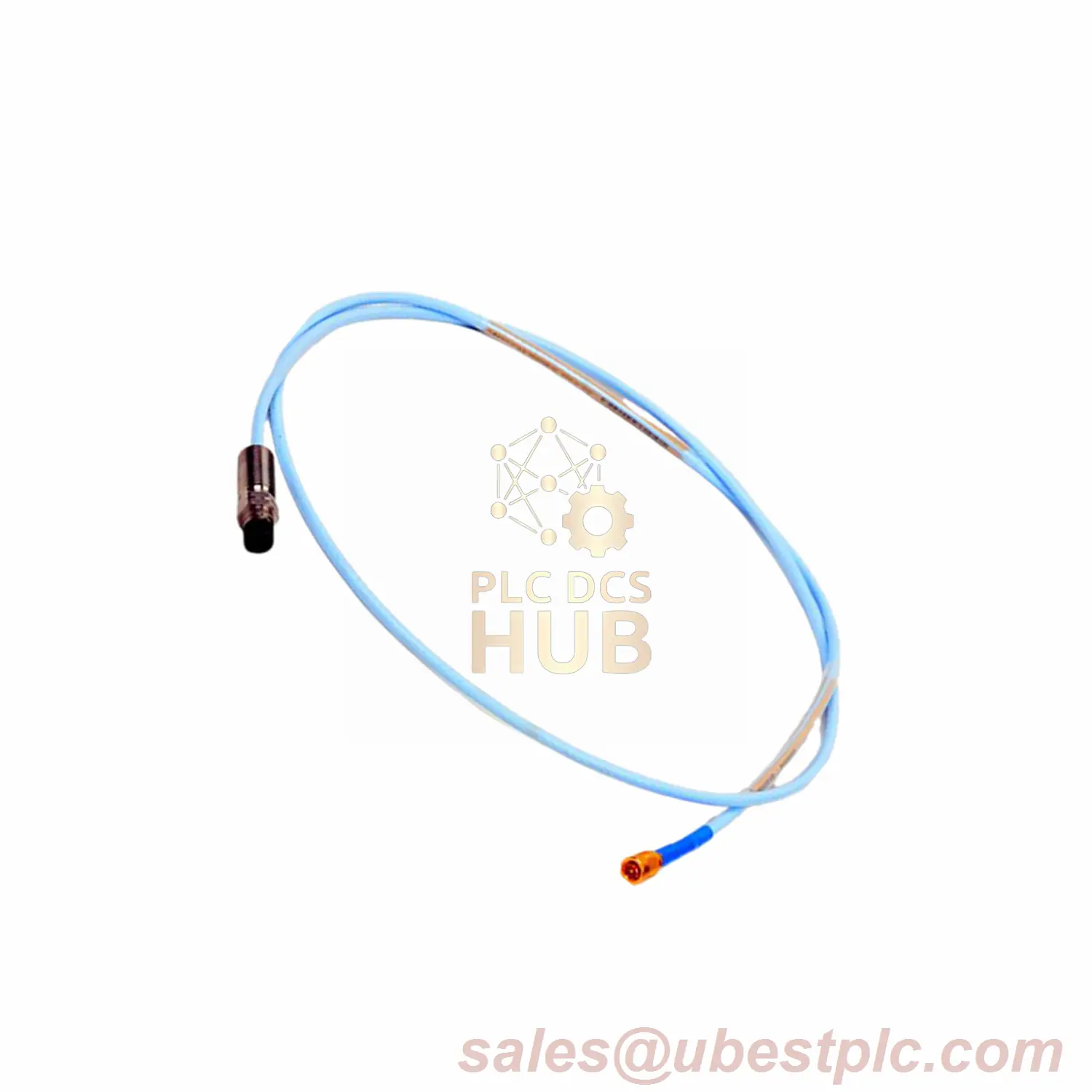

Bently Nevada Hazardous Area Vibration Probe – 9m Certified Solution
Technical Specifications
| Electrical Properties | Mechanical Properties |
| Resistance: 9.87 ± 0.50 Ω | Thread: M10x1 |
| Cable Type: 75Ω Triaxial | Max Engagement: 15mm |
| Signal Stability: ±0.1% | Weight: 2.9 kg (9m) |
| Environmental Ratings | Performance Data |
| Temp Range: -52°C to +177°C | Response Time: <2 ms |
| Humidity: 93% RH stable | Linearity: ±1% full scale |
| Seal Material: Viton® O-ring | Frequency Range: 0-15 kHz |
Configuration Details
- Full Model: 330106-05-30-90-12-05
- Cable Length: 9.0 meters (29.5 ft)
- Connector: FluidLoc™ ClickLoc
- Certifications: CSA, ATEX, IECEx
Installation Guide
- Thread engagement limit: 15mm
- Cable bend radius: 30mm minimum
- Storage temperature: >-34°C (-30°F)
- Mounting torque: 20-30 N•m
- Seal protection: Avoid petroleum-based cleaners
Certification Details
ATEX II 1G Ex ia IIC T4 Ga
IECEx Ex ia IIC T4 Ga
CSA Class I, II, III Div 1 Groups A-G
Shipping Information
FedEx Hazardous Materials | UPS Hazmat | DHL Excepted Quantity
Certified dangerous goods shipping available
