Product Description

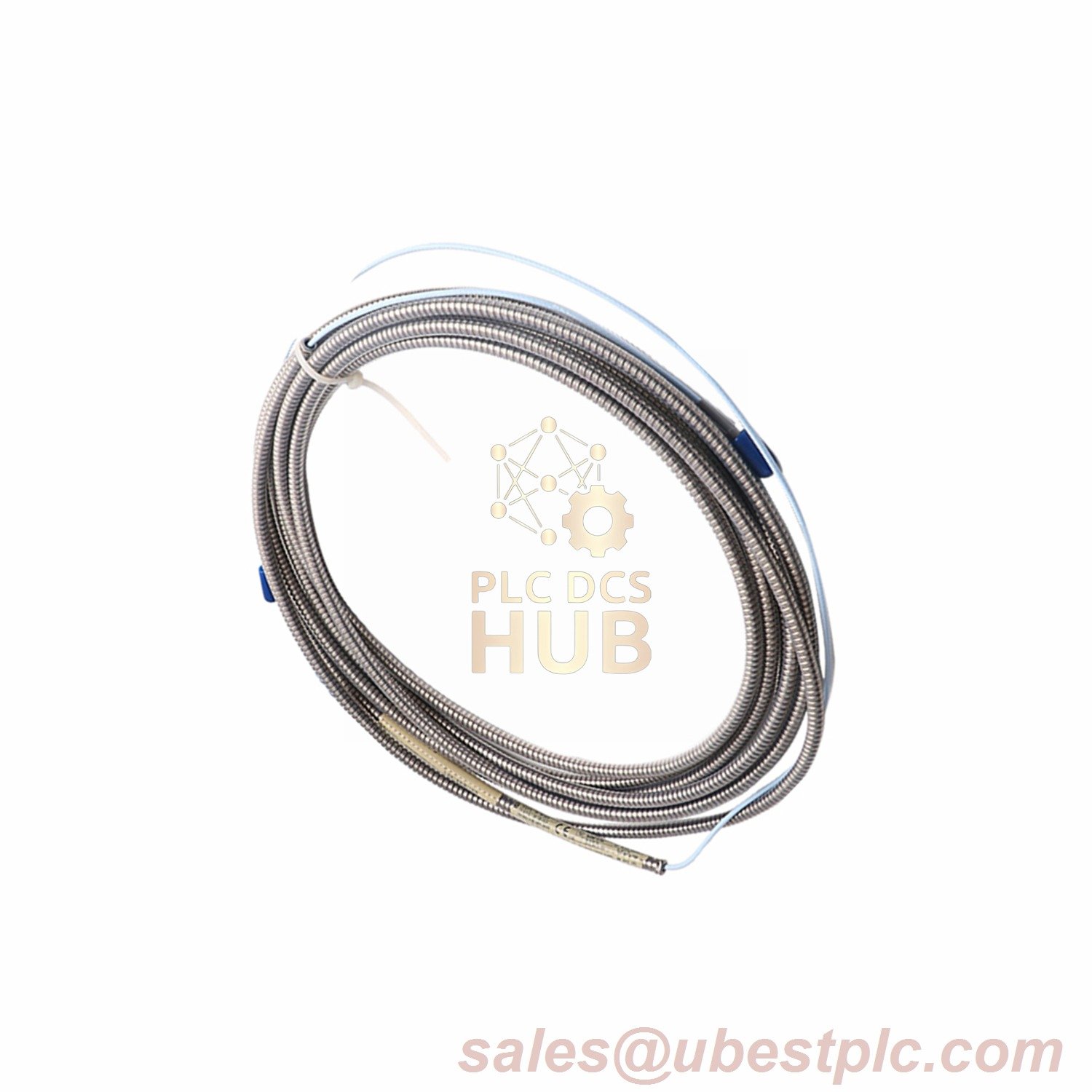

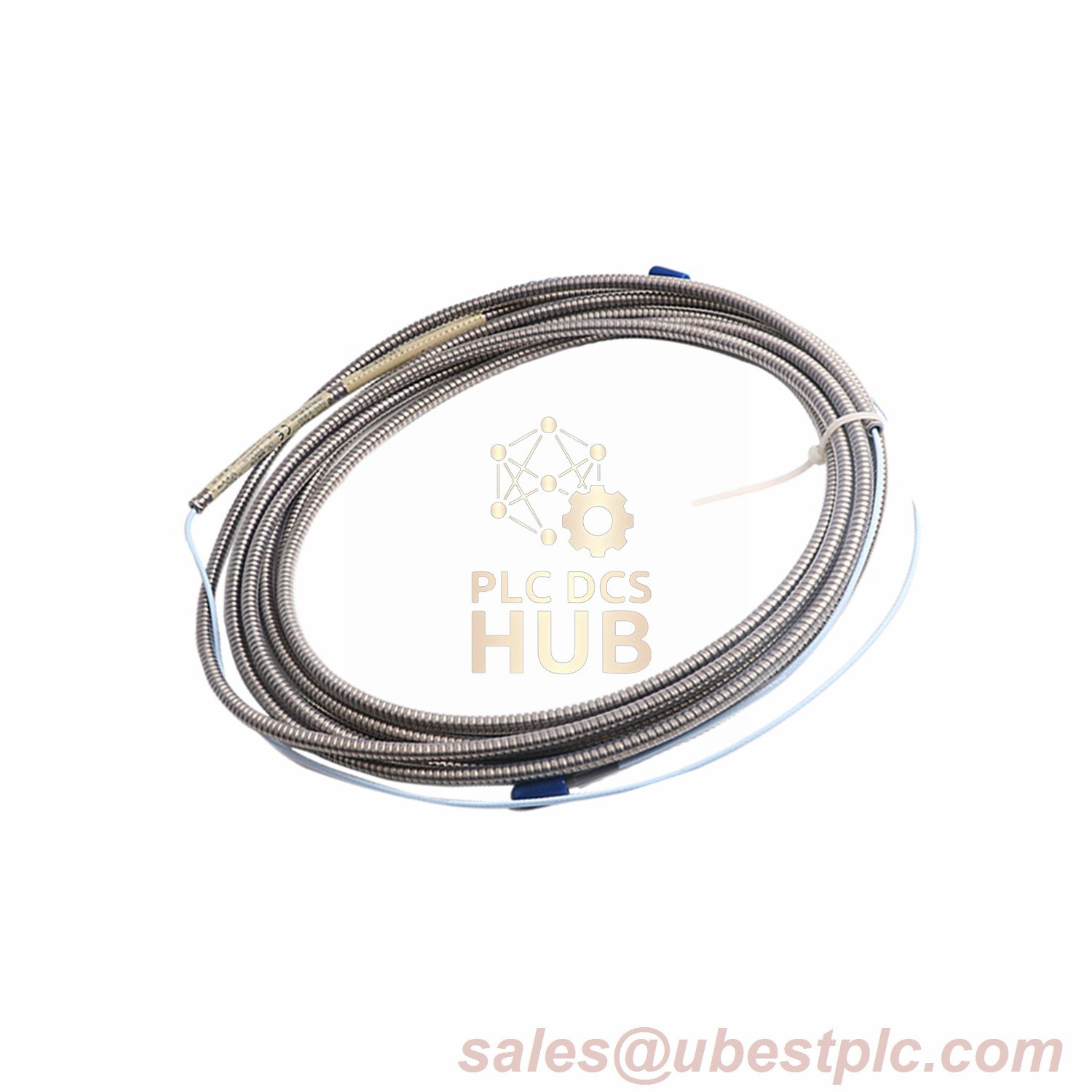

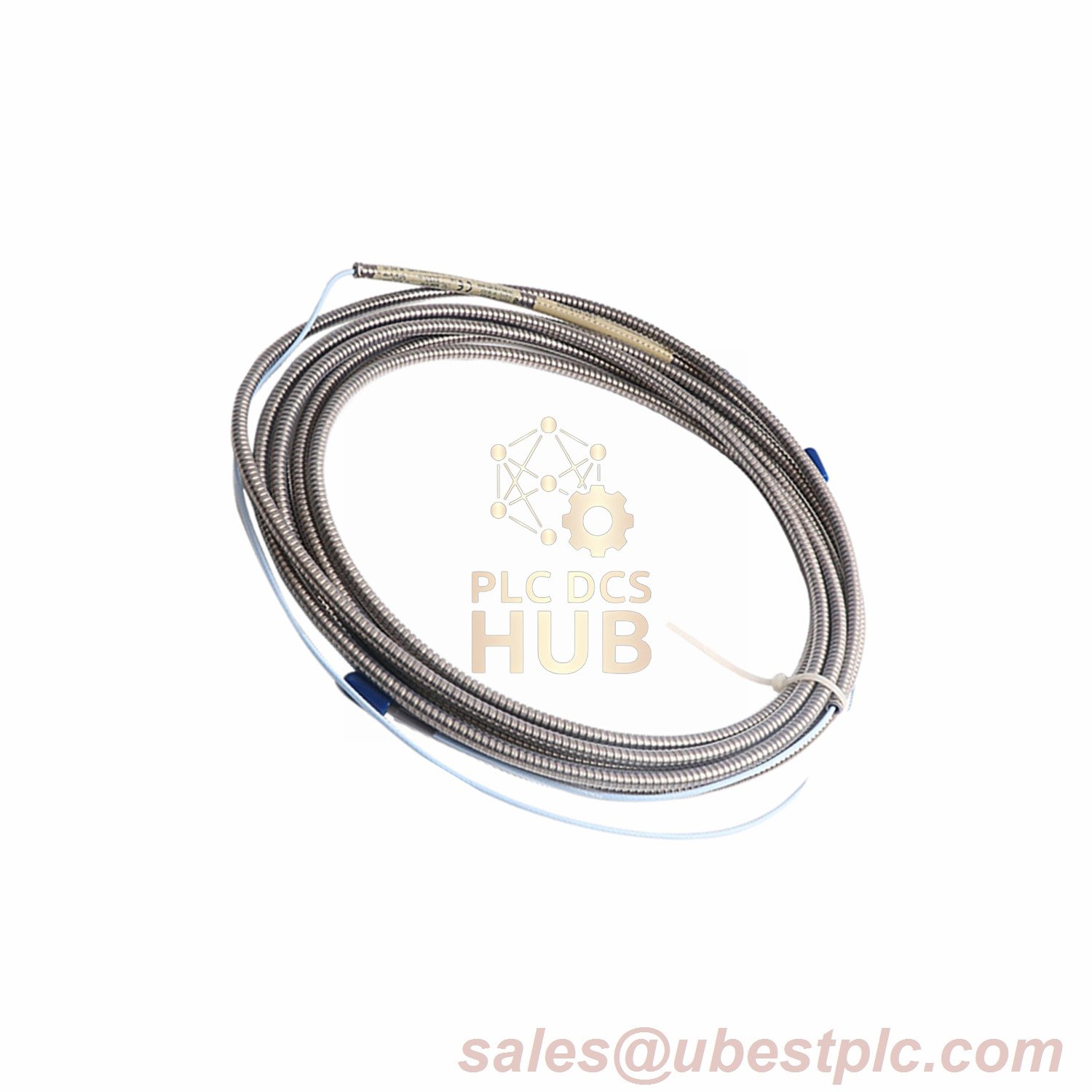

The Bently Nevada 330130-060-01-00 is a high-performance extension cable designed for use with 3300 XL 8mm Proximity Probes and Proximitor Sensors. This armored cable ensures reliable signal transmission while providing superior protection in industrial environments. Featuring gold-plated ClickLoc™ connectors, it ensures secure connections with excellent corrosion resistance.
Technical Specifications
- Part Number: 330130-060-01-00
- Length: 6.0 meters (19.7 feet)
- Cable Type: Armored
- Weight: 103 g/m (1.5 oz/ft) | 0.618 kg total
- Capacitance: 69.9 pF/m (21.3 pF/ft)
- Nominal DC Resistance:
- Core (RCORE): 1.32 ± 0.21 Ω
- Jacket (RJACKET): 0.39 ± 0.08 Ω
- Operating Voltage: -17.5 Vdc to -26 Vdc
- Supply Sensitivity: <2 mV change per volt input variation
- Output Resistance: 50 Ω
- Field Wiring: 0.2 to 1.5 mm² (16-24 AWG)
