Description
Product Description

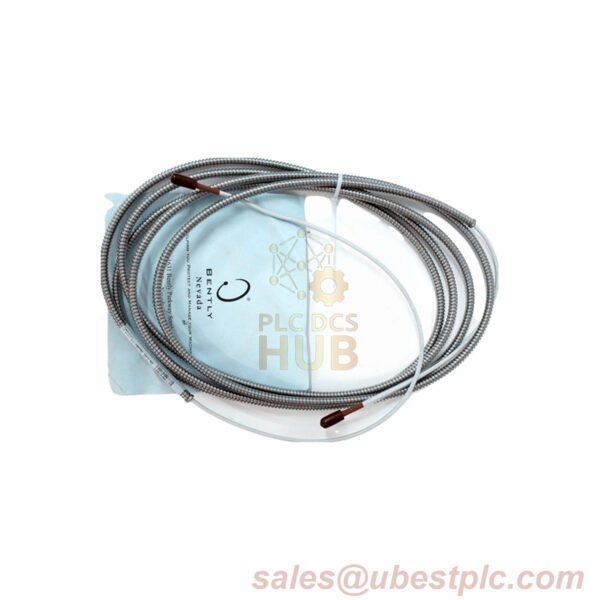

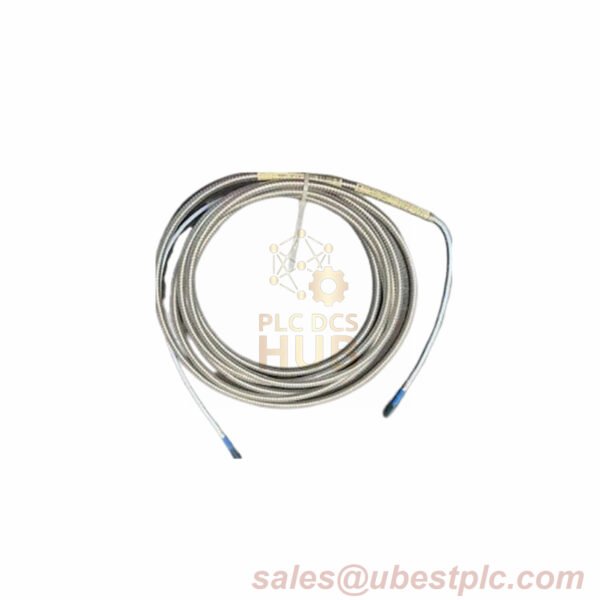

The Bently Nevada 330130-060-03-05 is a heavy-duty Extension Cable designed for industrial applications requiring precision and durability. This armored cable features gold-plated ClickLoc® connectors for corrosion resistance and includes a connector protector. Ideal for integration with 3300-series 5 mm, 8 mm, or 3300 XL 8 mm Proximity Probes, it ensures reliable signal transmission in harsh environments. The FluidLoc® option (if selected) prevents fluid ingress, making it suitable for oil-exposed applications. Silicone tape is included for temporary sealing, though not recommended for turbine oil environments.
Technical Data
- Brand: Bently Nevada
- Model: 330130-060-03-05 (Suffix: 060=6.0m, 03=Armored+Protector, 05=CSA/ATEX/IECEx)
- Input Compatibility: 3300-series 5 mm, 8 mm, or 3300 XL 8 mm Probes
- Power Supply: -17.5 Vdc to -26 Vdc (12 mA max), -23 Vdc to -26 Vdc with barriers
- Output Resistance: 50 Ω
- Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
- Core Resistance (RCORE): 1.32 Ω ±0.21 (6.0m cable)
- Jacket Resistance (RJACKET): 0.39 Ω ±0.08 (6.0m cable)
- Pull Strength: 330 N (75 lbf) via patented CableLoc® design
- Humidity Resistance: <3% ASF change at 93% humidity (56 days)
- Certifications: CSA, ATEX, IECEx
Contact Information: For technical or commercial inquiries, email sales@ubestplc.com.
