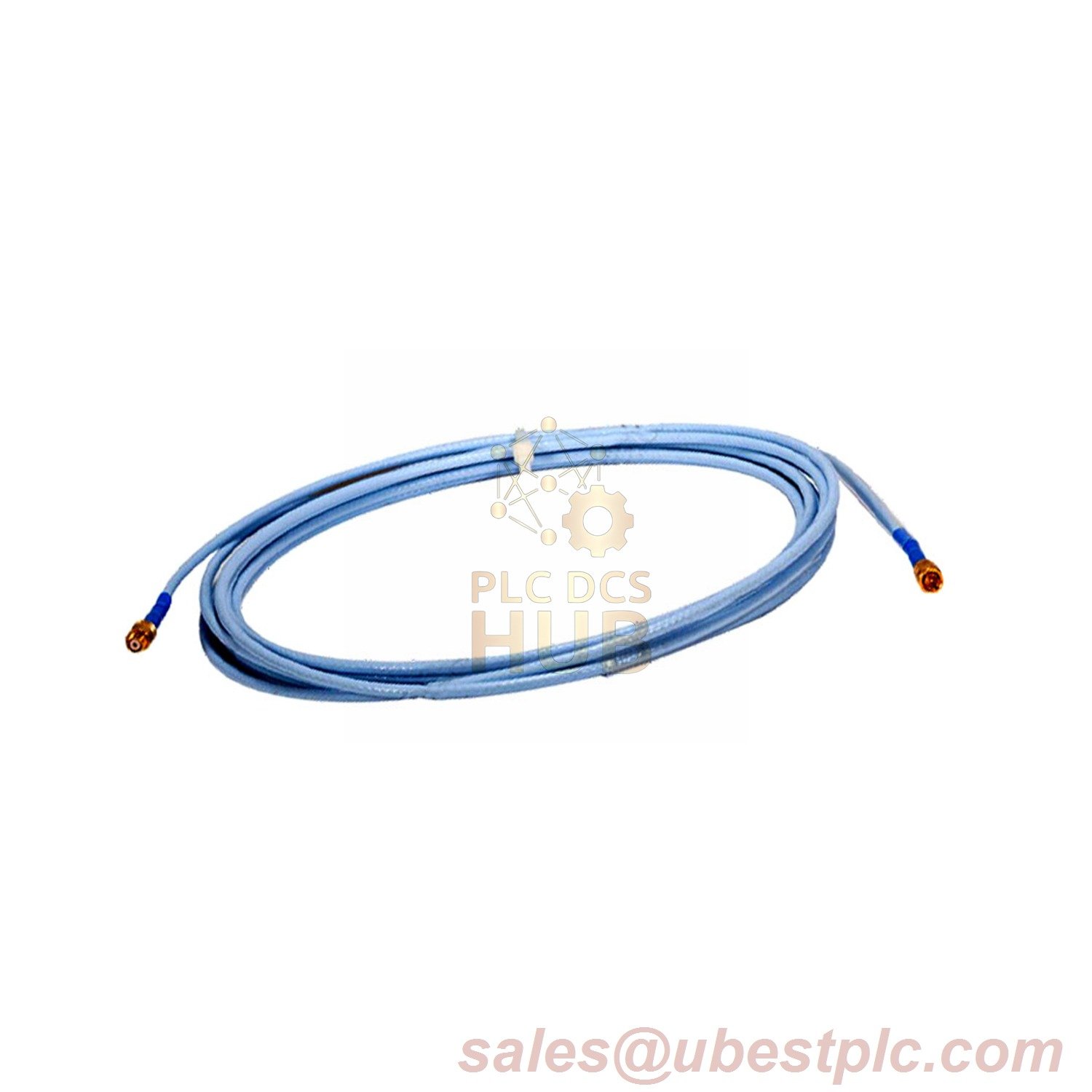

Bently Nevada 3300 XL Series Extension Cable
Enhance your industrial machinery monitoring with the 330130-060-12-00 Extension Cable, engineered for high durability and precision in demanding environments. Designed for seamless integration with 3300-series 5 mm, 8 mm, and XL 8 mm proximity probes, this FluidLoc-equipped cable prevents fluid ingress and ensures reliable performance in oil-exposed applications.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL Extension Cable
- 330130-060-12-00 Suffix Breakdown: 060 (6.0m length) | 12 (FluidLoc cable + protector) | 00 (no approvals)
- Voltage Range: -17.5 Vdc to -26 Vdc (non-incendive), -23 Vdc to -26 Vdc (with barriers)
- Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
- Core Resistance (RCORE): 1.32 Ω ±0.21 @6m
- Jacket Resistance (RJACKET): 0.39 Ω ±0.08 @6m
- Pull Strength: 330 N (75 lbf) via CableLoc design
- Humidity Resistance: <3% ASF change @93% humidity (56-day test)
Key Features
- Gold-plated ClickLoc connectors for corrosion resistance
- Includes silicone tape as connector protection alternative
- Sealed with Viton® O-ring for differential pressure containment
- Compatible with AISI 4140 steel targets at 1.27mm gap
Contact: For technical specifications or bulk orders, email sales@ubestplc.com.
