Bently Nevada 330130-080-03-00 3300 XL Standard Extension Cable

Description

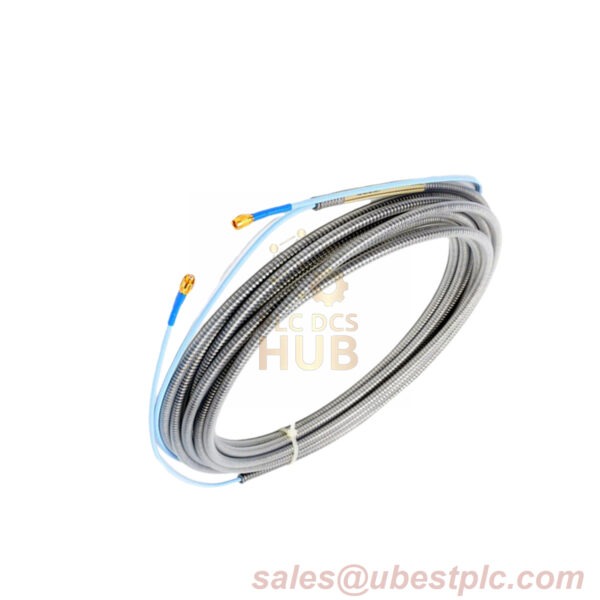

Bently Nevada 330130-080-03-00: Industrial-Grade Armored Extension Cable

Product Description

Premium 8.0-meter armored extension cable from Bently Nevada. Features military-grade protection and patented CableLoc technology with 330N pull strength. Made in USA. Ideal for turbine monitoring and harsh industrial environments. Includes silicone tape for non-oil applications.

Technical Specifications

• Brand: Bently Nevada
• Full Model: 330130-080-03-00 (080=8.0m, 03=Armored, 00=No approvals)
• Range: 2mm linear range (0.25-2.3mm from target)
• Accuracy: Core resistance: 1.76Ω ±0.26Ω | Jacket: 0.53Ω ±0.11Ω
• Output: 50Ω resistance
• Power: -17.5Vdc to -26Vdc
• Temp Range: +18°C to +27°C (tested at 2000m altitude)
• Weight: 0.824 kg (armored)
• Cable Length: 8.0 meters / 26.2 ft

Installation Notes

• Total length = Probe + Extension cable.
• Critical: Never use silicone tape in oil-exposed applications.
• Use connector protector for turbine oil environments.

Compatibility

Works with all 3300 XL 8mm Proximitor Sensors. Requires AISI 4140 steel target for optimal accuracy.

Package Includes

• 1× Armored Extension Cable (8.0m)
• Silicone tape (non-oil use only)
• Warranty: 12 months

Shipping Options

Global delivery via FedEx, UPS, DHL with tracking.

Frequently Asked Questions

Q: Oil-resistant?
A: Use FluidLoc option – silicone tape NOT for turbine oil.

Q: Max wiring distance?
A: 305 meters (1000 ft) sensor-to-monitor.

Q: Armor protection?
A: Yes! “03” suffix = armored + connector protector.

Specs valid at +18°C/+27°C with -24Vdc supply & AISI 4140 steel target.
