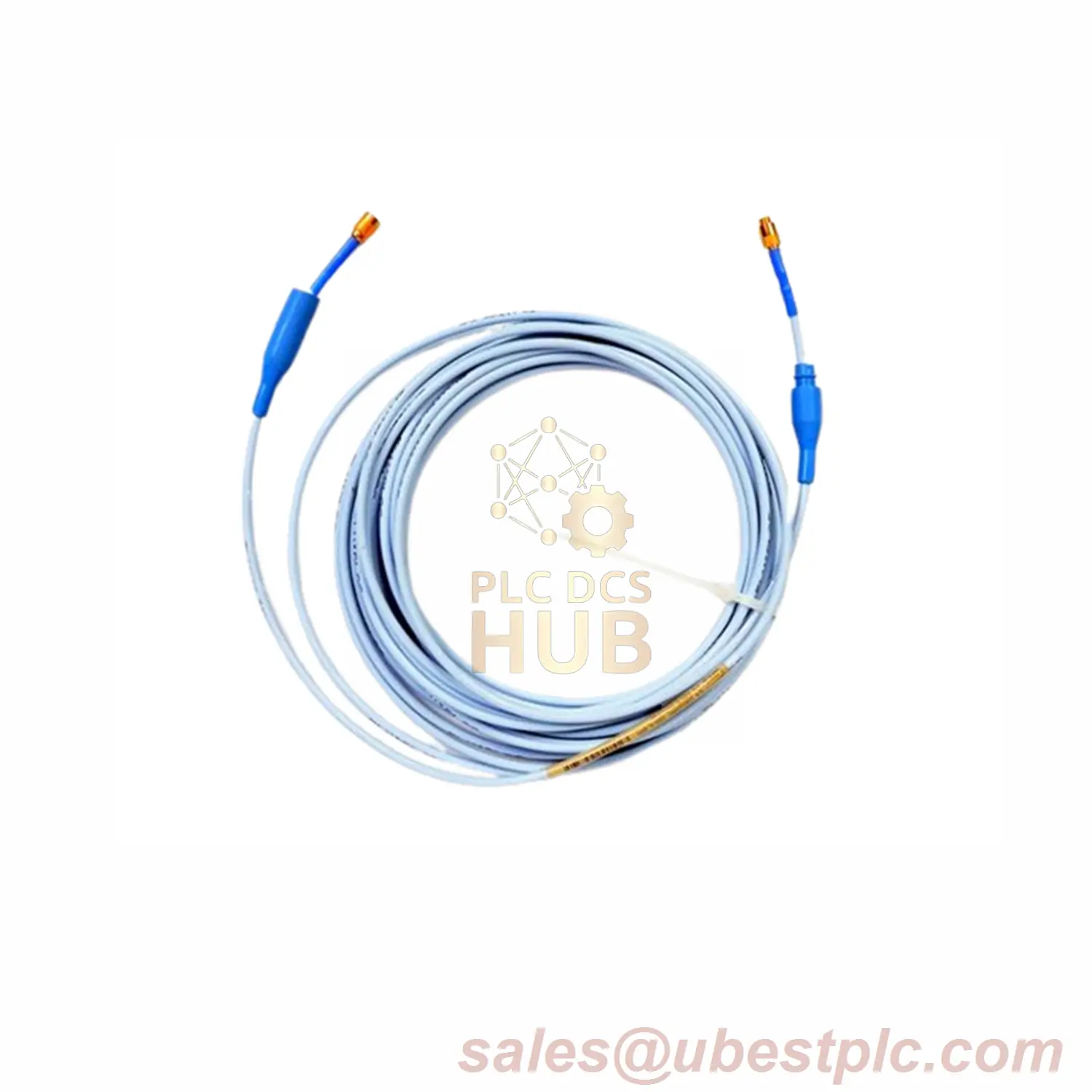

Bently Nevada Standard Sensor Cable: Reliable Connection for Industrial Monitoring
Product Highlights
- 8.5m length – Fits more installation points
- Made in USA quality
- Low resistance for accurate signals
- 330N pull strength – Secure connections
Cable Specifications
| Part Number: | 330130-085-00-00 |
| Length: | 8.5m (27.9 ft) |
| Type: | Standard cable (no armor) |
| Weight: | 0.289 kg |
| Core Resistance: | 1.87Ω ±0.28Ω |
| Jacket Resistance: | 0.56Ω ±0.11Ω |
| Temperature Range: | 18°C-27°C (64°F-80°F) |
Suffix Breakdown
330130 - [Base Model] ├── 085 - Cable length (8.5 meters) ├── 00 - Cable type (Standard) └── 00 - Approvals (None required)
Performance Data
- Power Input: -17.5Vdc to -26Vdc
- Output Resistance: 50Ω
- Measurement Range: 0.25-2.3mm
- Humidity Resistance: <3% change (93% RH)
- Current Draw: 12mA max
Model Comparison
| Model | Length | Features | Weight | Best For | Details |
|---|---|---|---|---|---|
| This Model | 8.5m | Standard cable | 0.289kg | General industrial | N/A |
| 330130-080-12-05 | 8.0m | FluidLoc® seal | 0.272kg | Oil environments | ATEX approved |
| 330130-080-13-00 | 8.0m | Armored + FluidLoc® | 0.824kg | Harsh conditions | Heavy protection |
Installation Tips
- 1. Calculate total length: Probe + Cable
- 2. Use included connector protector
- 3. Never use tape in oil areas
- 4. Max distance to monitor: 305m
- 5. Use shielded triad cable (16-24 AWG)
Package Includes
- 8.5m extension cable
- Connector protector
- Silicone tape
- Shipping: FedEx, UPS, or DHL
- Warranty: 12 months
Expert Q&A
Q: Why choose 8.5m over 8m?
A: Extra 0.5m helps in tight spaces – reduces tension at connections.
Q: Difference between standard/armored?
A: Standard: lighter (0.289kg). Armored: 3x heavier but crush-resistant.
Q: Can I use in high humidity?
A: Yes! <3% signal change at 93% humidity for 8 weeks.
Q: Minimum voltage requirement?
A: Keep above -23.5Vdc for full measurement range.
Q: Pressure rating for probes?
A: Viton® seals handle pressure differences (custom tests available).
