Description

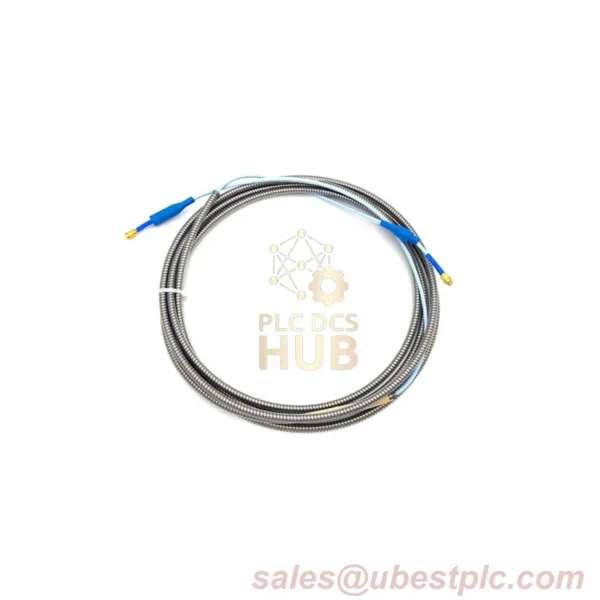

Bently Nevada 330130-085-03-05 Armored Extension Cable
Premium 8.5-meter armored extension cable designed for industrial vibration monitoring systems. Made in USA with ATEX/IECEx approvals.
Technical Data
| Brand | Bently Nevada |
| Model | 330130-085-03-05 |
| Length | 8.5m (27.9ft) |
| Resistance (Core) | 1.87Ω ± 0.28Ω |
| Resistance (Jacket) | 0.56Ω ± 0.11Ω |
| Capacitance | 69.9 pF/m |
| Weight | 0.875 kg |
| Approvals | CSA, ATEX, IECEx |
| Temperature Range | +18°C to +27°C |
Installation Guide
- Total cable length = Probe length + Extension length
- Use connector protectors in oil-exposed areas
- Max field wiring: 305m (1000ft)
- Use shielded triad cable (16-24 AWG)
- Avoid silicone tape in turbine oil applications
Diagnostics & Maintenance
- Check resistance values quarterly
- Inspect armor for physical damage
- Test pull strength at connections
- Monitor for oil wicking (use FluidLoc™ if needed)
Packaging Includes
- 1x Extension cable
- Silicone tape set
- Installation leaflet
Shipping
Global delivery via: FedEx • UPS • DHL
FAQ
Q: Is this explosion-proof?
A: Yes, ATEX/IECEx certified for hazardous areas
Q: Can I use in oil environments?
A: Use connector protectors or optional FluidLoc™
Q: Warranty period?
A: 12 months manufacturer warranty
Q: Pressure sealing?
A: Features Viton® O-ring (contact for pressure testing)
