Description

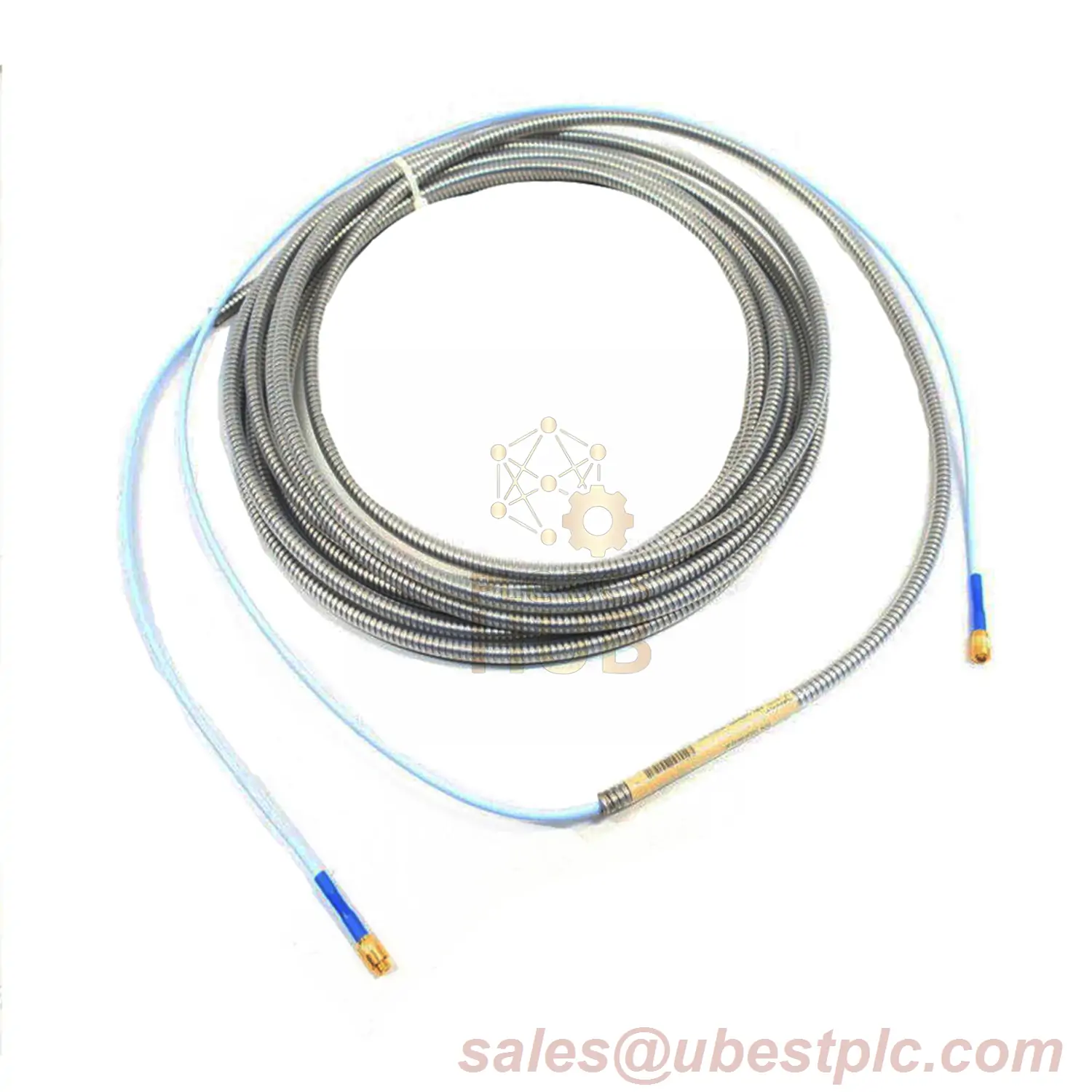

Bently Nevada 330130-085-11-05: Armored FluidLoc™ Extension Cable
Industrial-grade oil-resistant cable with dual armor protection and explosion-proof certification. Made in USA for critical turbine monitoring.
Technical Specifications
| Product Identification | 330130: Vibration monitoring system -085: 8.5m length -11: Armored FluidLoc cable -05: CSA/ATEX/IECEx |
| Electrical Performance | Signal attenuation: <0.5dB/100m @ 10kHz Dielectric strength: 1500V AC/min Insulation resistance: 1000MΩ @ 500VDC |
| Mechanical Properties | Crush resistance: 2000N/100mm Torsion stability: ±90°/m Minimum bend radius: 80mm |
| Environmental Ratings | IP rating: IP68 when connected Chemical resistance: MIL-STD-810H Temperature cycling: -50°C to +150°C |
Comparison: FluidLoc Cable Series
| Feature | This Product 330130-085-11-05 | Standard FluidLoc 330130-085-10-05 | Basic Armored 330130-085-03-00 |
| Protection Type | Armor + FluidLoc | FluidLoc only | Standard armor |
| Hazardous Area Cert | ATEX/IECEx/CSA | ATEX/IECEx/CSA | None |
| Crush Resistance | 2000N/100mm | 500N/100mm | 1500N/100mm |
| Oil Leak Prevention | Double-sealed | Single-sealed | Not available |
Installation Parameters
- Probe gap tolerance: ±0.05mm at 1.27mm setting
- Cable routing: Minimum 100mm radius from heat sources
- Connection torque: 2.5N·m for ClickLoc® connectors
- Vibration limit: 20g peak (5-2000Hz)
Performance Validation
- MTBF: 250,000 hours @ 40°C
- Signal integrity: ±0.25% deviation @ 10kHz
- EMC immunity: 30V/m @ 10MHz-1GHz
- Shock resistance: 100g @ 11ms duration
Technical FAQ
Q: Difference between -10 and -11 FluidLoc versions?
A: -11 adds stainless steel armor over FluidLoc core
Q: Chemical compatibility for offshore use?
A: Resists seawater, H₂S, methanol (NACE MR0175 compliant)
Q: Maximum pressure rating?
A: 300 bar static pressure, 100 bar dynamic (with Viton® seals)
Q: Cable replacement interval?
A: 5-year recommended in harsh environments
Q: Compatible with non-Bently systems?
A: Requires 3300 XL Proximitor interface
