Description
Description

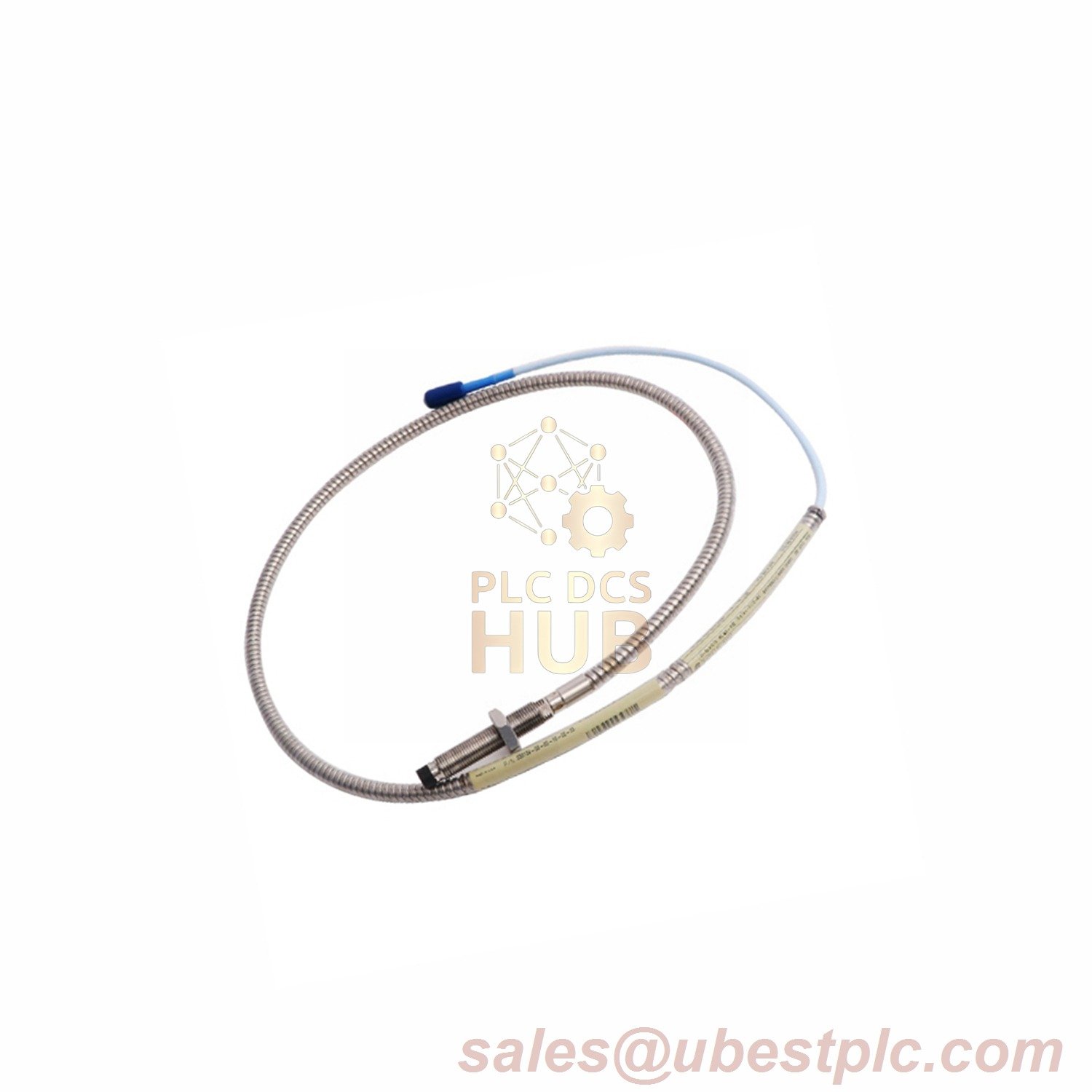

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330140-08-15-11-00) is a rugged, high-precision sensor designed for industrial machinery monitoring. Featuring a 1.5-meter FluidLoc cable and ClickLoc connector, this probe prevents fluid ingress and ensures reliable performance in harsh environments. Its 8 mm stainless steel casing and PPS probe tip deliver exceptional durability and accuracy.
Technical Data
- Brand: Bently Nevada
- Model: 330140-08-15-11-00
- Suffix Breakdown:
- Case Length: 08 (0.8 in)
- Cable Length: 15 (1.5 m / 4.9 ft)
- Connector/Cable: 11 (Miniature ClickLoc + FluidLoc)
- Agency Approval: 00 (Not required)
- Probe Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 303/304 Stainless Steel
- Operating Temp: -52°C to +177°C (-62°F to +350°F)
- Scale Factor: 7.87 V/mm ±5% (0°C to +45°C)
- Pressure Seal: Viton® O-ring (not pre-tested)
- Humidity Resistance: <3% ASF change at 93% RH for 56 days
FAQ
Q: Is the probe pressure tested before shipment?
A: No. Probes rely on Viton® O-rings for sealing but are not pre-tested.
Q: What is the minimum operating temperature?
A: -52°C, but exposure below -34°C may damage the pressure seal.
Contact Us: For pricing or technical details, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
