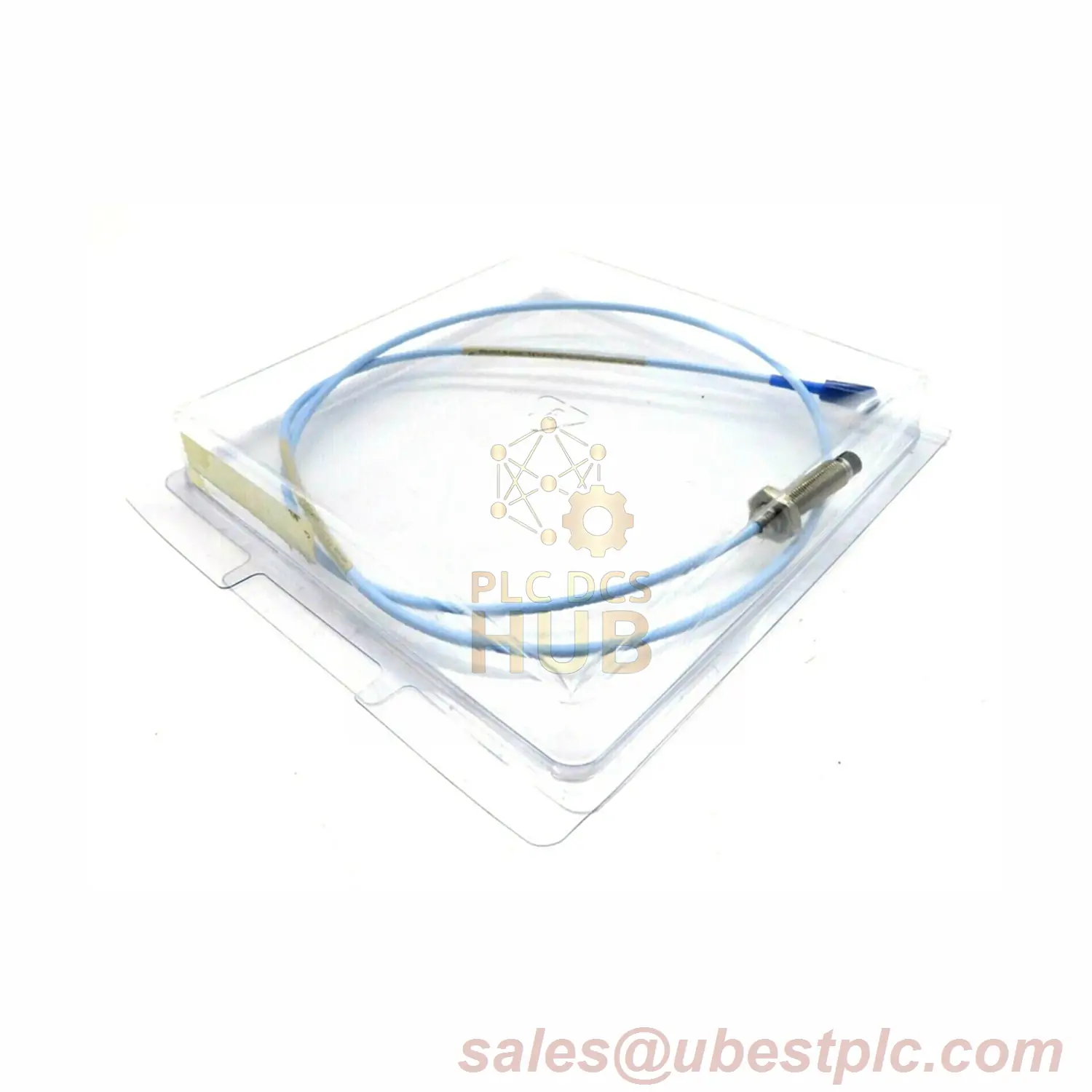

Bently Nevada 330171-00-08-90-01-05 Without Armor 5mm Probe

Description

Bently Nevada 3300 Series 5mm Probe: Your Machinery’s Vital Sign Monitor

Precision-engineered in USA for critical gap measurement. Withstands +177°C temperatures in turbines, compressors, and motors. Essential for preventing unplanned downtime.

Complete Model Configuration

Precision Performance Data

• Power Range: -17.5 to -26 VDC
• Temp Resilience: -35°C to +177°C
• Output Stability: <2mV change per volt input
• Cable Resistance: 9.87Ω ±0.90 (center to outer)
• Max Torque: 7.3 N·m (65 in-lb)
• Bend Radius: 25.4mm minimum

Rugged Construction

• Tip: PPS polymer (chemical resistant)
• Body: AISI 304 stainless steel
• Cable: 75Ω triaxial FEP insulation
• Connector: Gold-plated ClickLoc
• Seal: Pressure-rated (avoid < -34°C)

Installation Guide

• Thread: 1/4-28 UNF
• Tap Drill: #3 or larger required
• Max Engagement: 0.375 in (9.5mm)
• Torque: 5.1 N·m optimal (45 in-lb)

Order & Delivery

• Includes: Probe with ClickLoc connector
• Warranty: 12 months
• Shipping: FedEx/UPS/DHL (2-5 days)

Expert Answers

• Q: Minimum install temperature?
  A: -35°C but seal risk below -34°C
• Q: Works with existing 3300 systems?
  A: Yes – compatible with all 3300 monitors
• Q: Max cable pull force?
  A: 222N (50 lbf) at connectors
• Q: Hazardous area certified?
  A: Yes – multiple approvals (suffix 05)
