Bently Nevada 330180-92-05 | Proximity Sensor

Description

Description

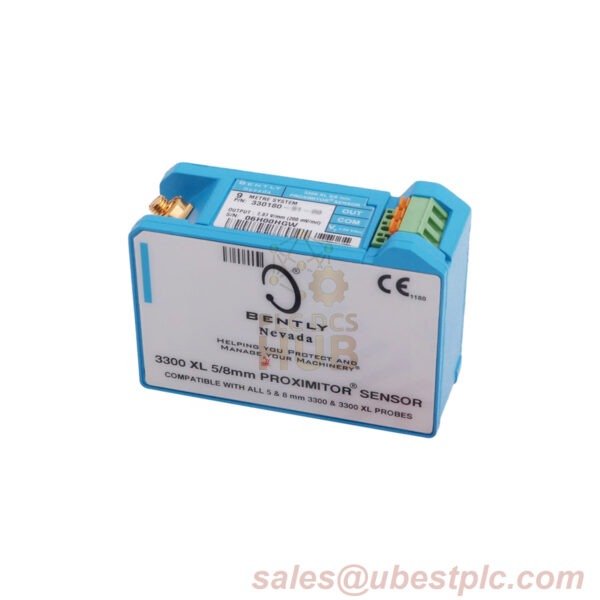

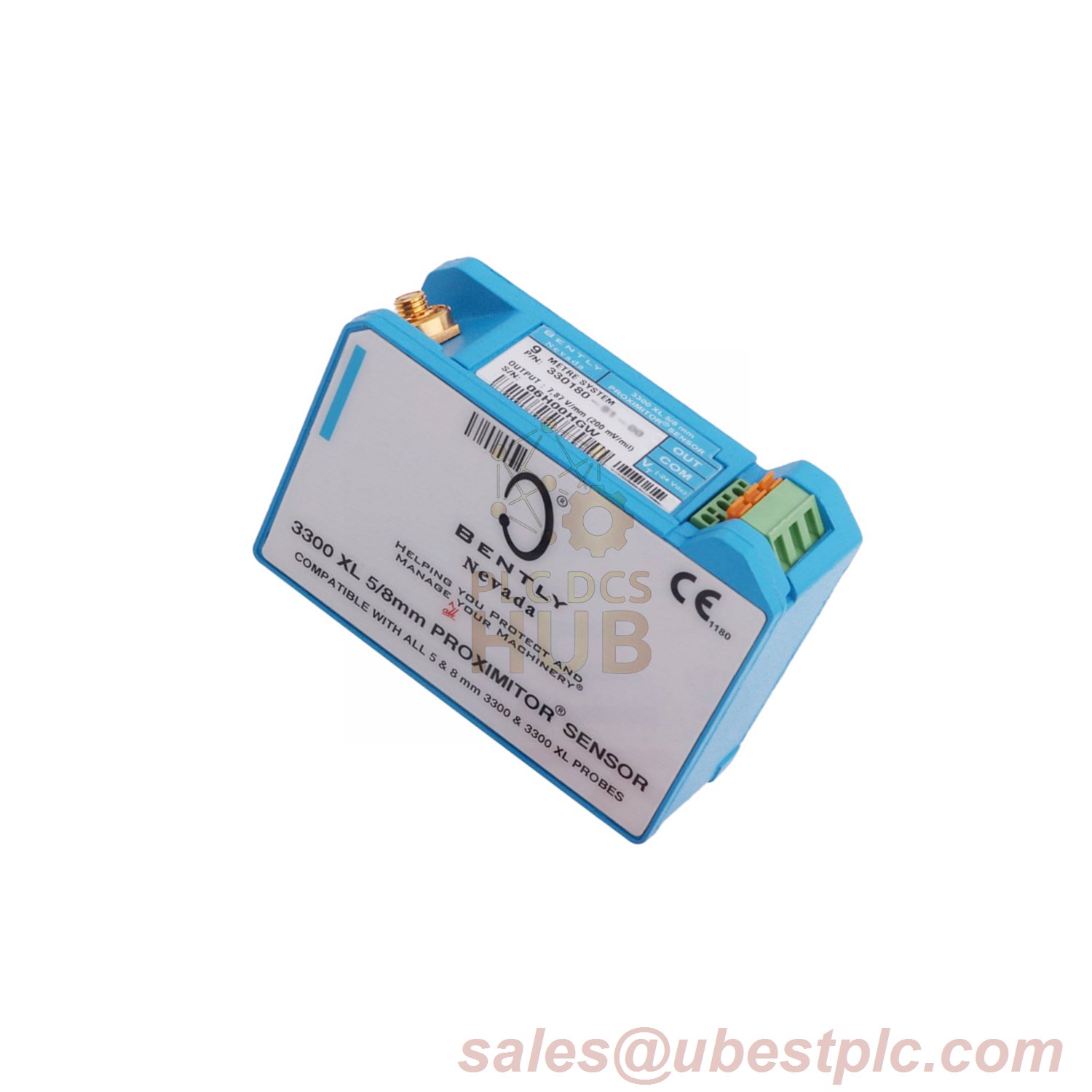

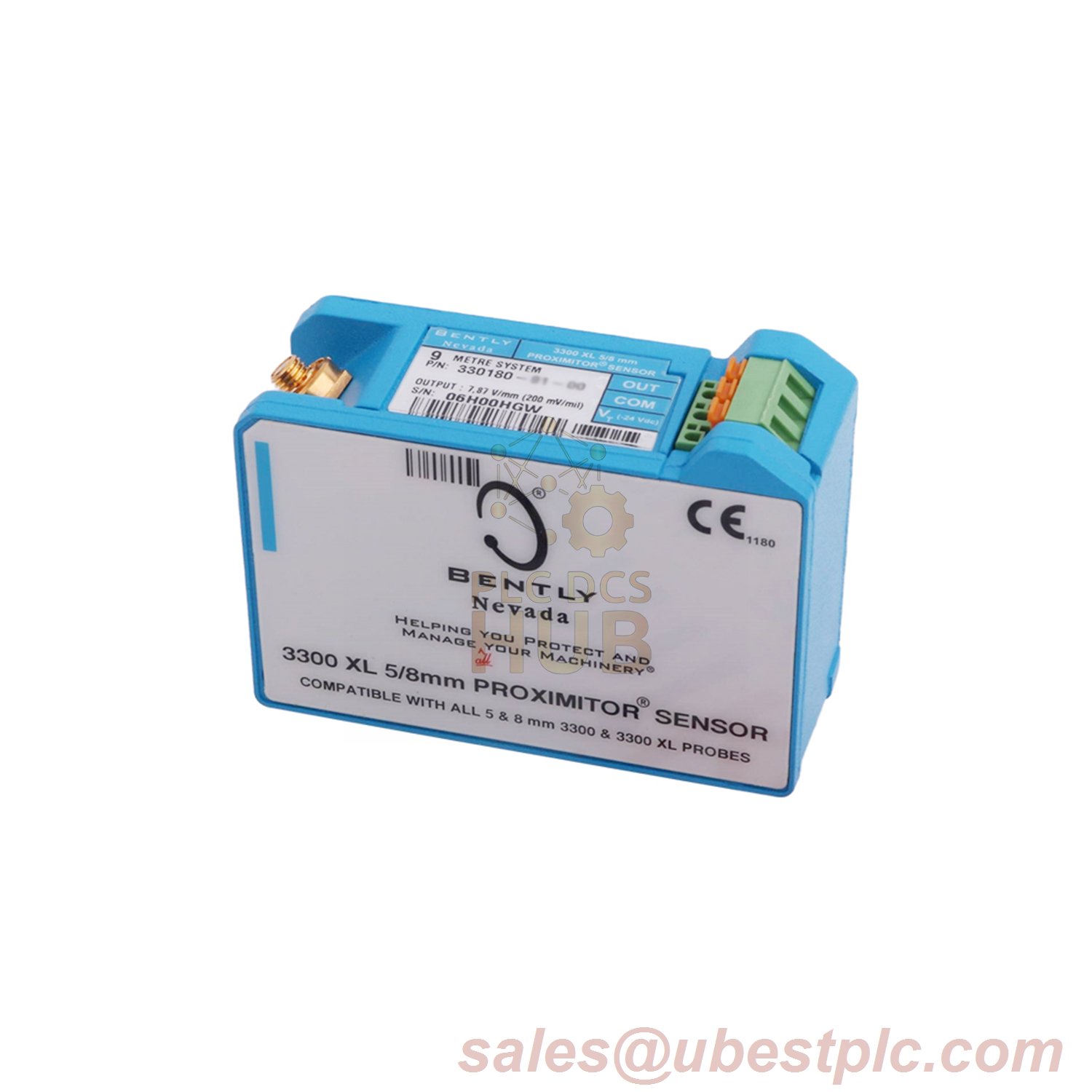

The Bently Nevada 330180-92-05 3300 XL Proximitor Sensor is a certified industrial-grade solution for hazardous environments. With a 9.0-meter (29.5 ft) cable and CSA/ATEX/IECEx approvals, this sensor is designed for long-range monitoring in explosive atmospheres. Featuring SpringLoc terminals and RFI/EMI immunity, it simplifies installations in high-risk zones without shielded conduit.

Technical Data

• Model: 330180-92-05
• Length: 9.0 m (29.5 ft) system length
• Mounting: No hardware included (DIN-rail/panel compatible)
• Certifications: CSA, ATEX, IECEx
• Input Compatibility: 3300-series 5mm & 8mm probes
• Power: -17.5 Vdc to -26 Vdc (12 mA max)
• Output Resistance: 50 Ω
• Weight: 246 g (8.67 oz)
• Temperature Range:
  • Operating: -52°C to +100°C (-62°F to +212°F)
  • Storage: -52°C to +105°C (-62°F to +221°F)
• Materials:
  • Housing: A308 aluminum
  • Connectors: Gold-plated brass/beryllium copper
