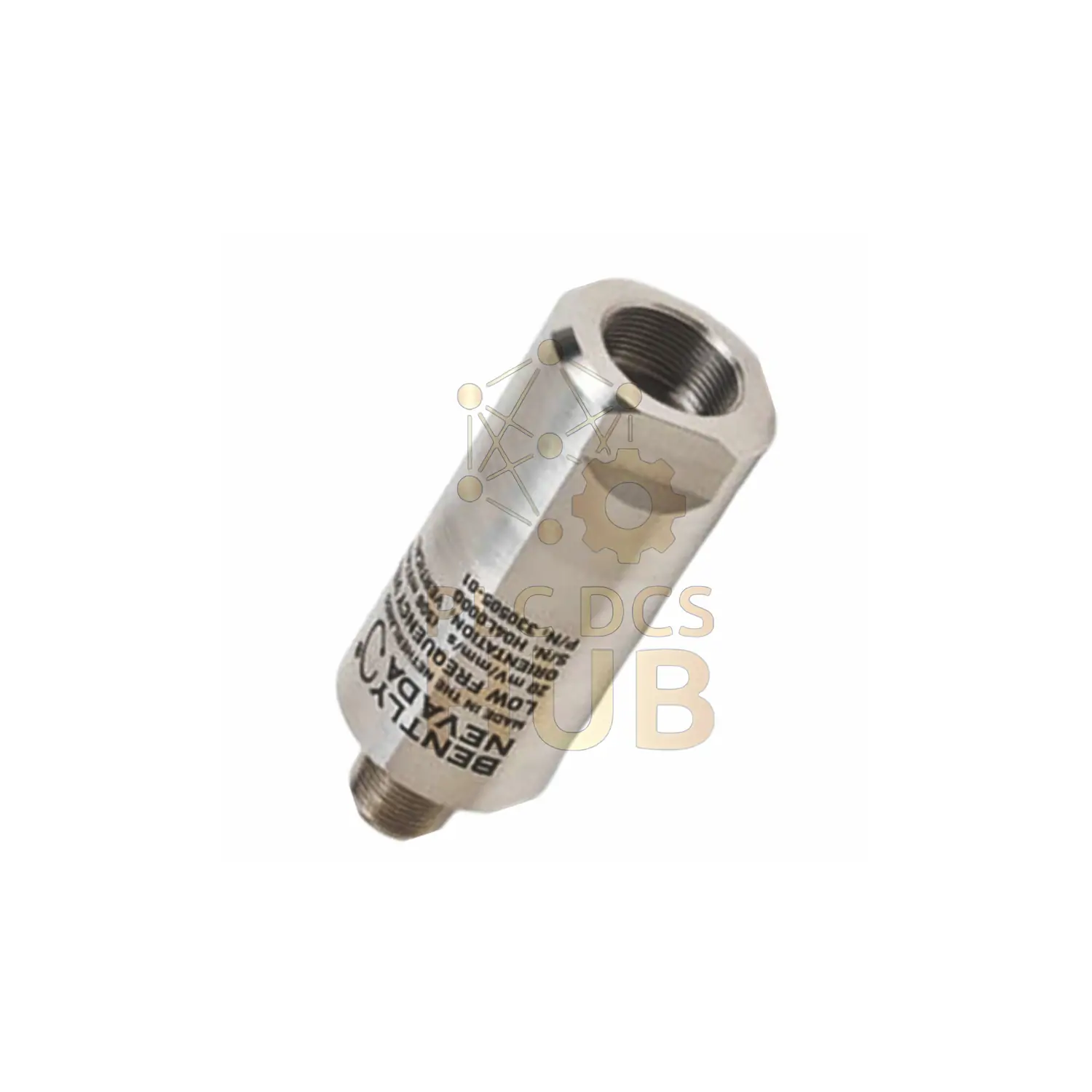

Bently Nevada 330505-02-02-07 Vibration Sensor – Universal Industrial Monitor
New factory-sealed sensor with 3/8-16 UNC adapter for versatile mounting. Perfect for pumps, motors, and conveyors. Detects machine problems early.
Complete Suffix Information
- Base Model: 330505
- Mounting Angle: 02 = 90° ±5°
- Internal Thread: 02 = 3/8-24 UNF-2B
- Adapter: 07 = 3/8-16 UNC
Precision Specifications
- Frequency coverage: 30-60,000 CPM
- High accuracy zone: 60-12,000 CPM (±0.9dB)
- Vibration measurement: 0-4 in/s peak
- Output sensitivity: 508 mV/in/s ±10%
- Bias voltage: -12VDC ±1V
Environmental Durability
- Temperature range: -40°F to 212°F
- Shock resistance: 100g peak survivability
- Sealing: Hermetic – 100% humidity safe
- Cable length: 1000 feet maximum
Installation Parameters
- Adapter type: 3/8-16 UNC
- Maximum torque: 40 in-lb
- Polarity: Pin A+ for upward movement
- Surface temperature: 212°F max
Packaging & Warranty
- New in original factory packaging
- 12-month manufacturer warranty
- Global shipping: FedEx, UPS, DHL
Technical Questions
Q: What’s unique about the 3/8-16 UNC adapter?
A: Standard thread size for North American industrial equipment
Q: Minimum RPM detection capability?
A: Detects vibrations starting at 30 CPM (0.5 Hz)
Q: Cable length effect on signal?
A: No degradation up to 1000 ft with compatible systems
Q: Vibration measurement method?
A: Measures velocity in mm/s or in/s peak
