Description

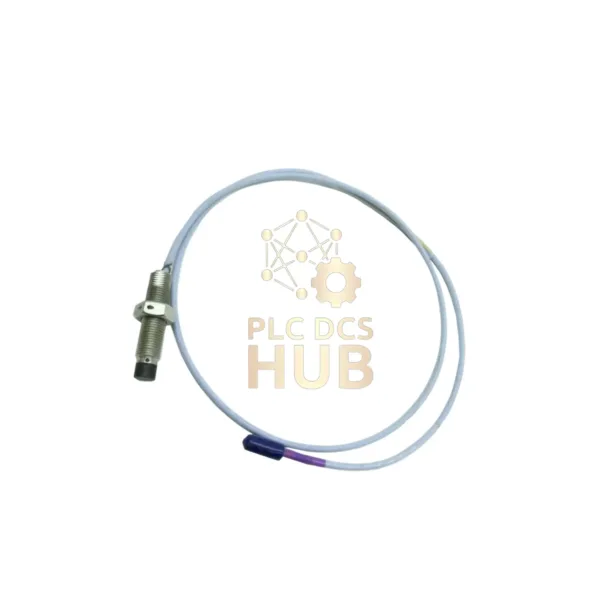

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Vibration Monitoring
Professional-grade vibration sensor for industrial machinery protection. Made in USA with Certificate of Origin (COO) available. Measures shaft displacement with extreme temperature resilience (-51°C to +177°C). Features corrosion-resistant stainless steel body and chemical-proof PPS tip.
Key Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Part No: 330701-00-10-10-01-00
- Cable Length: 1.0 meter (3.3 feet)
- Thread Type: 1/2-20 UNF
- Case Length: 1.0 inch
- Output Signal: 75 Ω triaxial
- Probe Resistance: 5.9 ± 0.5 ohms
- Operating Temp: -51°C to +177°C (-60°F to +351°F)
- Connector: Miniature coaxial ClickLoc with protector
Critical Installation Details
- Max Thread Engagement: 0.750 inch (19mm)
- Case Torque: 15.2 N•m recommended (45.2 N•m max)
- Connector Torque: Finger tight (0.565 N•m max)
- Cable Bend Radius: Minimum 25.4mm (1.0 inch)
- Pressure Seal: Viton O-ring (contact for pressure testing)
Construction & Compatibility
- Tip Material: Chemical-resistant PPS plastic
- Case Material: AISI 304 Stainless Steel
- Cable Insulation: FEP fluoropolymer
- Compatible with all 3300 XL monitoring systems
- Standard triaxial connection for easy integration
Packaging & Support
- Shipping Weight: 0.17 kg
- Warranty: 12 months manufacturer guarantee
- Shipping: FedEx, UPS, DHL worldwide
- Package Includes: Probe assembly with connector protector
Probe FAQ
- Q: Pressure rating?
A: Seals differential pressure – contact for custom testing - Q: Minimum operating temp?
A: Rated to -51°C but avoid below -34°C for seal longevity - Q: Cable length options?
A: Also available in 5m and 9m versions
Download Resources
Get full installation and specification details:
