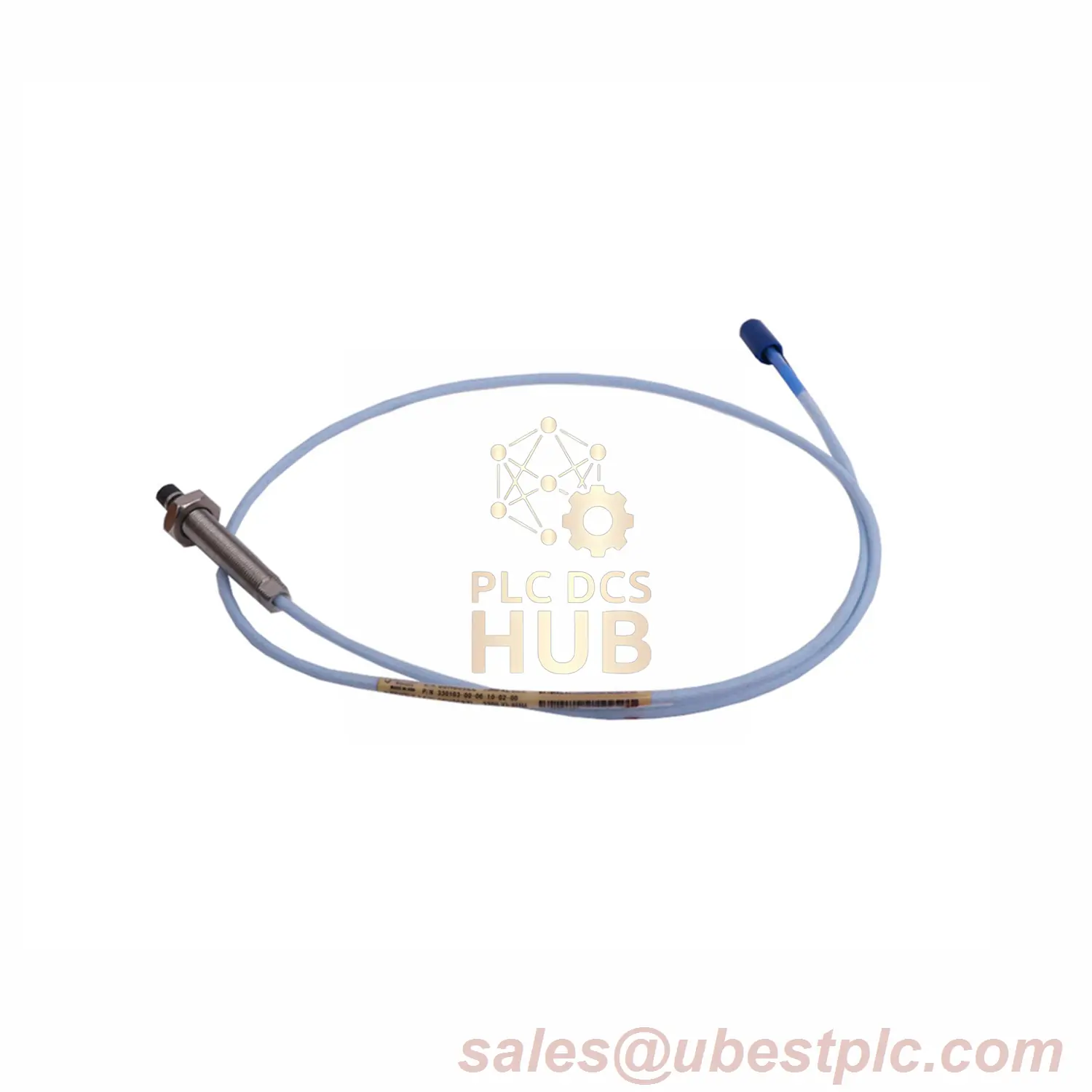

Bently Nevada 3300 XL 11mm Proximity Probe – Premium Vibration Monitoring Solution
Monitor machinery vibration with precision using the Bently Nevada 330701-00-24-50-01-05 proximity probe. This 11mm sensor features a 5-meter cable and stainless steel construction for reliable performance in industrial environments.
Key Features
- 11mm sensing diameter for accurate vibration measurement
- 5-meter cable length (16.4 feet) for flexible installation
- Wide temperature range: -51°C to +177°C
- 304 stainless steel case with 1/2-20 UNF threading
- Compatible with 5-meter Proximitor Sensors only
- Includes Miniature coaxial ClickLoc connector
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Part Number: 330701-00-24-50-01-05
- Probe Resistance: 7.2 ± 0.8 ohms
- Cable Type: 75Ω triaxial with FEP insulation
- Thread Size: 1/2-20 UNF
- Maximum Torque: 45.2 N•m (400 in•lb)
- Recommended Torque: 15.2 N•m (133 in•lb)
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 stainless steel
- Connector Type: Miniature coaxial ClickLoc with protector
- Warranty: 12 months
Installation Guide
- Ensure proper thread engagement (max 0.750 in)
- Apply recommended torque of 15.2 N•m (133 in•lb)
- Maintain minimum bend radius of 25.4mm (1.0 in)
- Keep connector torque below 0.565 N•m (5 in•lb)
- Avoid temperatures below -34°C to preserve seal
Compatibility
Designed exclusively for use with 5-meter Proximitor Sensors. Not compatible with other cable length systems.
Certifications
This probe carries multiple agency approvals (Option 05). Certificate of Origin (COO) available upon request.
What’s Included
- 3300 XL 11mm Proximity Probe (5m length)
- Miniature coaxial ClickLoc connector
- Connector protector
- Standard cable
Shipping Information
Weight: 0.17kg. Ships worldwide via FedEx, UPS, or DHL. Contact us for expedited options.
FAQ
- Q: What’s the maximum temperature?
A: +177°C (351°F) operating and storage - Q: Can I use this with 9m systems?
A: No, compatible only with 5m Proximitor Sensors - Q: Is the cable armored?
A: No, this model has standard cable without armor
