Product Overview: Premium Imperial Sensor

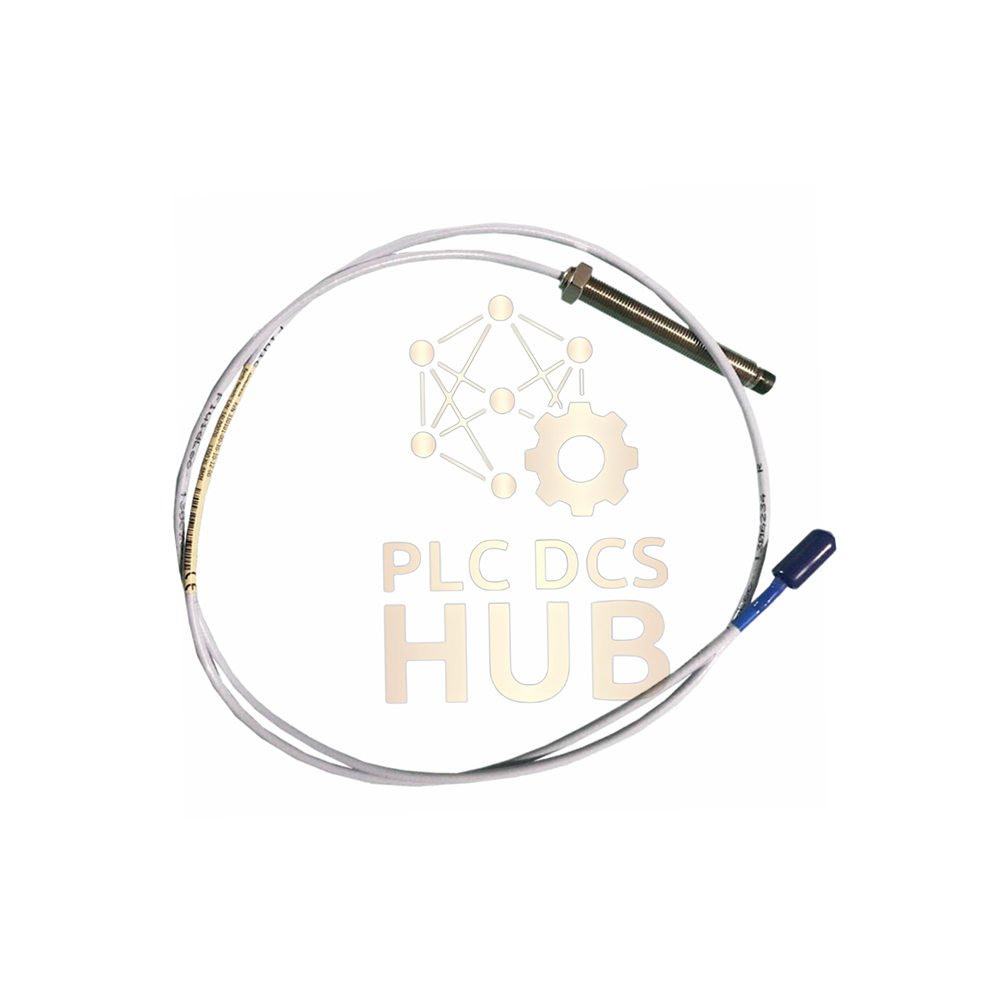

Discover the Bently Nevada 330702-00-26-10-02-00. This is a genuine 3300 XL 11 mm Proximity Probe. It features a 1/2-20 UNF thread for imperial installations. The probe is new, made in the USA, and includes a 12-month warranty.
Your Model Number Explained
- Core Product
- 330702: 11 mm Proximity Probe with armor, 1/2-20 UNF thread.
- Detailed Configuration
- 00: Unthreaded part length is 0.0 inches.
- 26: Total case length is 2.6 inches.
- 10: Cable measures 1.0 meter (3.3 feet).
- 02: Fitted with Miniature ClickLoc connector.
- 00: No special agency approvals required.
Key Technical Data
- Electrical & Physical Specs
- DC Resistance (1m cable): 5.9 Ω ± 0.5 Ω.
- Thread Type: 1/2-20 UNF.
- Max Thread Engagement: 0.750 inches.
- Tip Material: Polyphenylene sulfide (PPS).
- Case Material: AISI 304 Stainless Steel.
- Installation & Handling
- Installation Torque (1/2-20):
- Maximum: 45.2 N•m.
- Recommended: 15.2 N•m.
- Connector Torque: Finger tight only (max 0.565 N•m).
- Minimum Cable Bend Radius: 25.4 mm (1.0 inch).
- Installation Torque (1/2-20):
- Environmental Ratings
- Operating Temperature: -51°C to +177°C.
- Seal Warning: Avoid below -34°C to prevent damage.
- Pressure Seal: Viton O-ring (not factory pressure-tested).
Order & Support Information
- Product ships in original factory packing.
- Includes 12-month manufacturer warranty.
- We ship worldwide via FedEx, UPS, and DHL.
- Have a technical question? Chat with us on WhatsApp for expert advice.
Pro FAQ & Selection Tips
Q: What machines need a 1/2-20 UNF threaded probe?
A: The 330702-00-26-10-02-00 is for machinery with imperial mounting holes. It is common in older or US-made equipment. Check your machine’s specs.
Q: Is the probe’s pressure seal tested before shipping?
A: No. Standard probes are not pressure-tested. The seal uses a Viton O-ring. For high-pressure needs, contact us for custom solutions.
Q: How do I connect the cable without causing damage?
A: Hand-tighten the ClickLoc connector only. Do not use tools. Overtightening can break the connector.
Q: Can I bend the cable tightly around a corner?
A: No. Keep bends wider than 1 inch (25.4 mm). Sharp bends can damage the internal wires and affect performance.
Q: What if my application involves very low temperatures?
A: The probe works down to -51°C. But, do not store it below -34°C for long periods. This can harm the seal and shorten its life.
