Bently Nevada 330702-00-30-10-11-05 | FluidLoc Armored Probe | 3300 XL Sensor

Description

Premium Armored Probe with Chemical-Resistant Cable

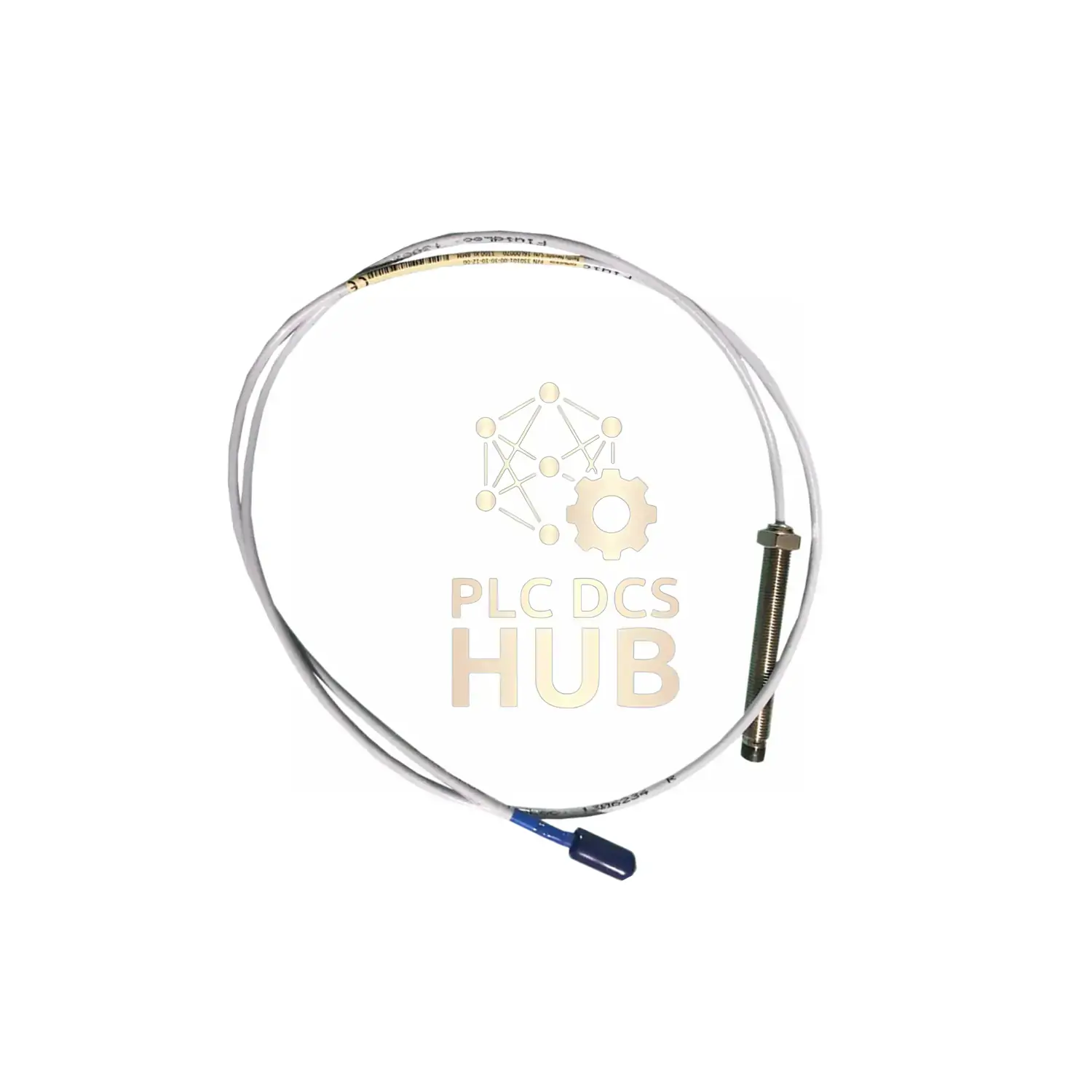

Discover the Bently Nevada 3300 XL 11 mm Proximity Probe, part number 330702-00-30-10-11-05. This new, original sensor combines a 3-inch armored case with a FluidLoc cable for harsh environments. Features a 1/2-20 UNF thread for imperial systems. Delivered with factory packing, a 12-month warranty, and expedited shipping options.

Product Configuration & Specs

• Manufacturer: Bently Nevada (USA Made)
• Product Family: 3300 XL 11 mm Proximity Probes
• Model Number Analysis: 330702-00-30-10-11-05
  • → 330702: Armored Probe, 1/2-20 UNF Thread.
    → 00: Unthreaded Length = 0.0 inch.
    → 30: Case Length = 3.0 inches.
    → 10: Cable Length = 1.0 meter.
    → 11: Connector/Cable = ClickLoc + Protector, FluidLoc.
    → 05: Agency Approvals = Multiple.
• Robust Construction:
  • Tip: Durable PPS plastic.
  • Housing & Armor: 304 Stainless Steel.
  • Seal: Reliable Viton O-ring.
• Electrical Specifications:
  • Probe DC Resistance: 5.9 ± 0.5 ohms.
  • Cable: 75-ohm triaxial with FluidLoc jacket.
  • Minimum Bend: 25.4 mm (1.0 inch).
• Mechanical Installation (Imperial):
  • Thread Size: 1/2-20 UNF.
  • Max Engagement: 0.750 inch.
  • Install Torque: 15.2 N·m (133 in·lb).
  • Max Torque: 45.2 N·m (400 in·lb).
  • Connector Torque: Hand tight only.
• Environmental Limits:
  • Operating Range: -51°C to +177°C.
  • Storage Advisory: Keep above -34°C to preserve seal integrity.

Quick Installation Tips

• Designed for standard 1/2-20 UNF threaded mounting holes.
• The 3-inch case provides a common installation length.
• Use a torque wrench. Set to 15.2 N·m.
• The FluidLoc cable resists oils and chemicals.
• Connect the ClickLoc connector by hand until snug.

Value Package for Buyers

• Seamless Compatibility: For Bently Nevada 3300 XL monitoring systems.
• Package Contents: One factory-fresh probe. Shipping weight 0.17 Kg.
• Warranty Assurance: Covered by a comprehensive 12-month warranty.
• Fast Global Shipping: Available via FedEx, UPS, and DHL.
• Low Maintenance: Built for reliability with minimal upkeep.

Ideal Use Cases

• Monitoring pumps and compressors in oil & gas facilities.
• Applications where cables are exposed to lubricants or coolants.
• Critical machinery protection in chemical and manufacturing plants.
• Detects key machine faults:
  • Imbalance
  • Misalignment
  • Bearing wear
  • Shaft deflection

Expert Q&A

Technical Features

• Q: What is the advantage of the FluidLoc cable (option 11)?
• A: The FluidLoc cable has a special jacket that resists degradation from oils, fuels, and many chemicals. This makes the 330702-00-30-10-11-05 ideal for wet or dirty environments.
• Q: Why choose a 3.0-inch case length?
• A: The 3.0-inch case is a versatile, mid-length option. It provides good thread engagement and stability in a wide range of standard mounting configurations.

Purchasing & Logistics

• Q: My site requires sensors with specific safety certifications. Does this model have them?
• A: Yes. The “05” suffix means this 330702 probe holds multiple international agency approvals, simplifying compliance for regulated sites.
• Q: How do I initiate a warranty claim if needed?
• A: The 12-month warranty covers defects. Please contact our support team via WhatsApp with your order information. We will provide clear instructions for a quick resolution.
• Q: Can I track my shipment of the 330702-00-30-10-11-05 probe?
• A: Absolutely. Once shipped via FedEx, UPS, or DHL, you will receive a tracking number to monitor your delivery in real-time.
