Product Description

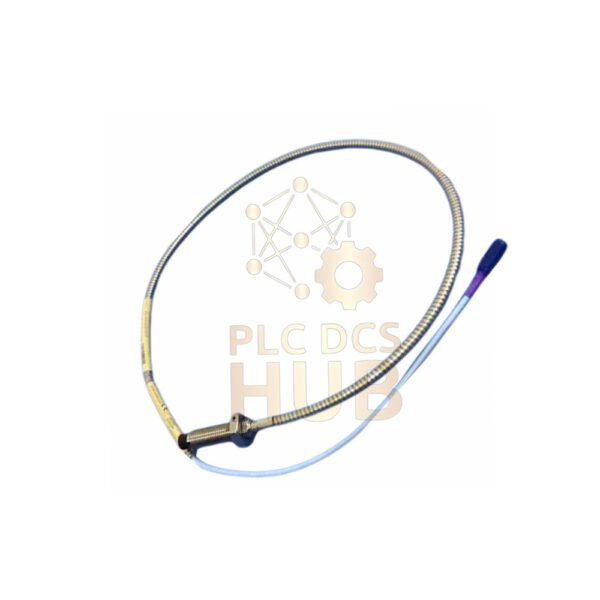

The Bently Nevada 330704-000-030-50-02-00 is a factory-new, premium proximity probe. It is part of the renowned 3300 XL 11 mm Proximity Probes series. This metric system probe delivers precise vibration and position measurement for industrial machinery. It ensures reliable monitoring of critical assets. The probe comes with a full 12-month manufacturer warranty.
Key Features & Benefits
- High-Accuracy Sensing: Provides reliable data for predictive maintenance.
- Robust Construction: Stainless steel case and durable PPS tip for harsh environments.
- Easy Installation: Standard M14x1.5 thread and ClickLoc connector.
- Extended Temperature Range: Operates from -52°C to +177°C.
- 5-Meter System Ready: Optimized for use with 5-meter Proximitor sensors.
Complete Technical Specifications
- Brand: Bently Nevada
- Model: 330704-000-030-50-02-00
- 330704: 3300 XL 11 mm Probe, M14 x 1.5 thread, with armor
- 000: Unthreaded Length = 00 mm
- 030: Overall Case Length = 30.0 mm
- 50: Total Cable Length = 5.0 meters (16.4 feet)
- 02: Connector = Miniature coaxial ClickLoc, standard cable
- 00: Agency Approval = Not required
- Core Measurement Data
- Probe DC Resistance (RPROBE): 7.2 Ω ± 0.8 Ω @ 5.0m length
- Magnetic Field Immunity (60 Hz): Up to 300 Gauss
- Output: 0.001 mil pp/gauss @ 0.5 mm gap
- Output: 0.009 mil pp/gauss @ 2.5 mm gap
- Output: 0.027 mil pp/gauss @ 4.6 mm gap
- Physical & Material Specs
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Cable Specification: 75 Ω triaxial, FEP insulated
- Case Thread: M14 x 1.5
- Max Thread Engagement: 21 mm
- Mechanical & Environmental Limits
- Installation Torque (M14x1.5):
- Maximum: 63.3 N•m (560 in•lb)
- Recommended: 21.1 N•m (187 in•lb)
- Temperature Range:
- Operating/Storage: -52°C to +177°C (-62°F to +351°F)
- Note: Avoid below -34°C to protect pressure seal.
- Temperature Classifications (Example):
- EPL Ga/Gc: T2 (-55°C to +177°C)
- EPL Dc: T225°C @ Ta (-55°C to +177°C)
- Installation Torque (M14x1.5):
Installation & Compatibility Guide
- Installation Notes: Use the recommended torque. Ensure clean, full thread engagement up to 21 mm.
- Sensor Compatibility: Designed specifically for use with 5-meter Bently Nevada Proximitor sensors.
- System Integration: Ideal for integration into Bently Nevada 3300 XL monitoring systems.
Certifications & Package Details
- Agency Approvals: Standard model (00) for general industrial use.
- Factory Packaging: New and original unit in sealed factory packing.
- Warranty: Full 12-month manufacturer warranty against defects.
- Shipping: Fast global delivery via FedEx, UPS, or DHL.
Typical Applications & Diagnostic Power
This probe is vital for condition monitoring on rotating machinery like turbines, compressors, pumps, and fans. It accurately measures shaft vibration, axial position, and eccentricity. This data enables early fault detection, preventing unplanned downtime and costly repairs.
Frequently Asked Questions (FAQ)
Product & Selection Guide
Q: What is the main use of this probe?
A: It measures shaft vibration and position in industrial machines for predictive maintenance.
Q: How do I choose the right cable length?
A: The 330704-000-030-50-02-00 has a fixed 5m cable. Select other model suffixes (e.g., -90) for 9m cables.
Technical & Experience-Based
Q: Can I use this 5-meter probe with a 9-meter system?
A: No. This 5-meter probe (-50 suffix) is calibrated only for use with a matching 5-meter Proximitor sensor.
Q: What is the risk of installing the probe in a very cold environment?
A: While rated to -52°C, temperatures below -34°C may damage the internal pressure seal over time, leading to potential failure.
Q: What does the -02 suffix in the model number mean for installation?
A: It specifies a Miniature ClickLoc connector. This allows for quick, secure cable connection without special tools.
Need help selecting the right sensor? Contact our technical team via WhatsApp for expert advice.
