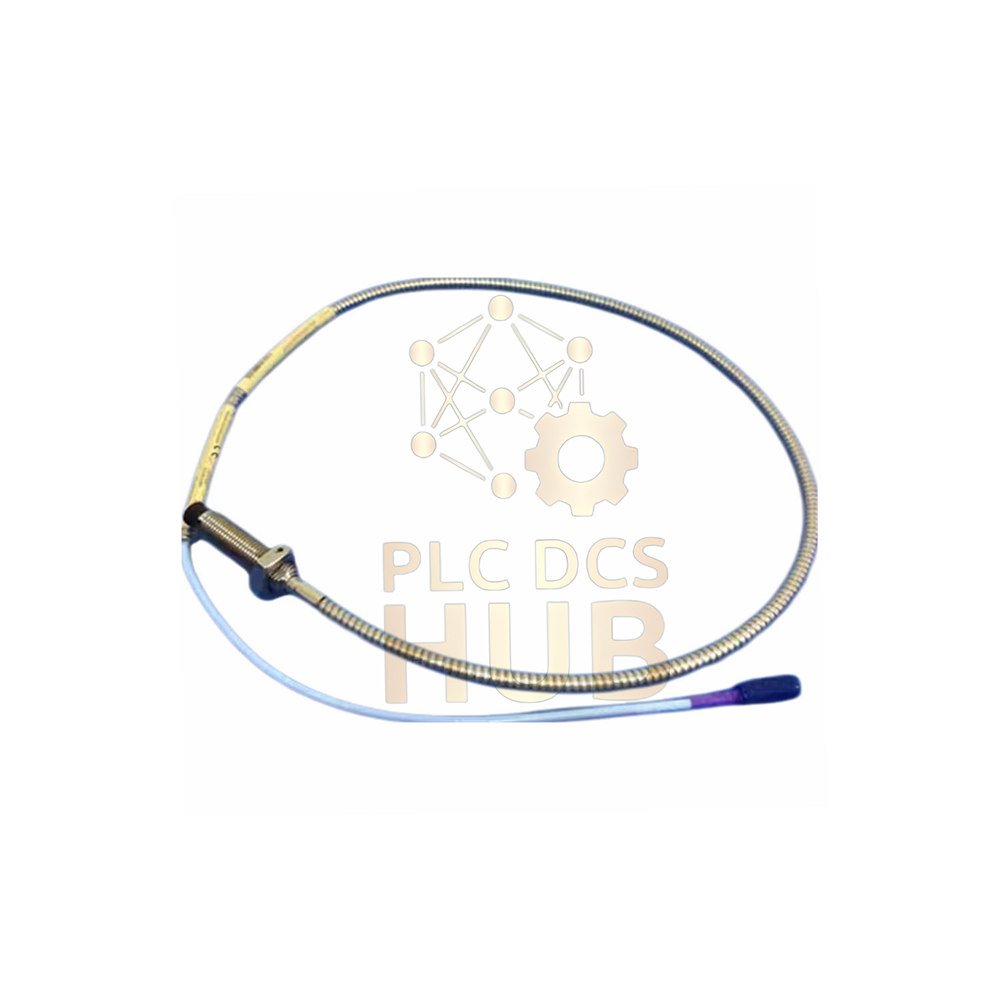

Bently Nevada 330704-000-100-10-01-05 11mm Proximity Probe

Description

Product Description

Discover the Bently Nevada 330704-000-100-10-01-05. This is a brand new, genuine 3300 XL 11 mm Proximity Probe in factory packaging. It offers precise vibration and position measurement for industrial machinery. The probe ensures reliable monitoring in demanding environments. It comes with a full 12-month manufacturer warranty.

Technical Specifications

• Brand & Model
  • Brand: Bently Nevada
  • Series: 3300 XL
  • Full Part Number: 330704-000-100-10-01-05
    • Model: 330704
    • Unthreaded Length: 000 (0 mm)
    • Case Length: 100 (100 mm)
    • Cable Length: 10 (1.0 meter / 3.3 feet)
    • Connector: 01 (Miniature Coaxial ClickLoc)
    • Agency: 05 (Multiple Approvals)
• Measurement & Performance
  • Sensing Range: Optimal for gaps up to 4.6 mm (180 mil)
  • Sensitivity: Defined by output voltage change per gap
  • Linearity: High within specified operating range
  • Resolution: Excellent for detecting minute displacement changes
  • Probe DC Resistance: 5.9 ± 0.5 ohms (for 1.0m cable)
• Environmental & Durability
  • Temperature Range: -52°C to +177°C (Operational & Storage)
  • Environmental Protection: Robust design for industrial settings
  • EMI Resistance: Low output shift in magnetic fields up to 300 Gauss
• Physical Construction
  • Tip Material: Polyphenylene sulfide (PPS)
  • Case Material: AISI 304 Stainless Steel
  • Case Thread: M14 x 1.5
  • Max Thread Engagement: 21 mm
  • Recommended Case Torque: 21.1 N•m (187 in•lb)
  • Cable: 75 Ω triaxial with FEP insulation, 1.0m length
  • Connector: Miniature coaxial ClickLoc with protector
• Certifications & Approvals
  • Complies with multiple international agency standards (Option 05)
  • Suitable for use in various hazardous location classifications (EPL Ga, Gc, Dc)

Installation & Compatibility

• Installation is straightforward. Use the M14x1.5 thread for mounting.
• Always follow the recommended torque of 21.1 N•m.
• This probe seamlessly integrates with Bently Nevada 3300 XL monitoring systems.
• It is compatible with systems using miniature coaxial ClickLoc interfaces.

Packaging & Warranty

• The probe arrives new and original in its factory packing.
• Package includes the probe with a 1.0-meter attached cable and connector protector.
• Your purchase is protected by a 12-month factory warranty.
• We ship worldwide via FedEx, UPS, and DHL.

Applications & Diagnostic Value

This probe is vital for predictive maintenance. It monitors radial vibration and axial position on turbines, compressors, pumps, and fans. The data helps detect unbalance, misalignment, and bearing issues early. This prevents unexpected downtime and costly repairs.

Frequently Asked Questions (FAQ)

What is the total length of this probe system?

The overall probe case is 100 mm. The attached cable adds 1.0 meter (3.3 feet).

Can this probe handle high-temperature environments?

Yes. Its operating range is -52°C to +177°C. Check the temperature schedule for specific hazardous area classifications.

What connector does it use?

It uses a sturdy miniature coaxial ClickLoc connector. A protector is included.

How do I choose the right probe length?

Consider your machine’s mounting depth and required cable reach. The 330704-000-100-10-01-05 has a 100mm case and 1.0m cable, ideal for standard applications.

From experience, what causes premature probe failure?

Exposing the seal to temperatures below -34°C can cause failure. Also, exceeding the maximum installation torque can damage the case.

Is this a genuine Bently Nevada part?

Absolutely. This is a new and original unit. It comes in factory packaging with full warranty support.

Need help selecting the right probe? Contact our technical team via WhatsApp for expert advice.
