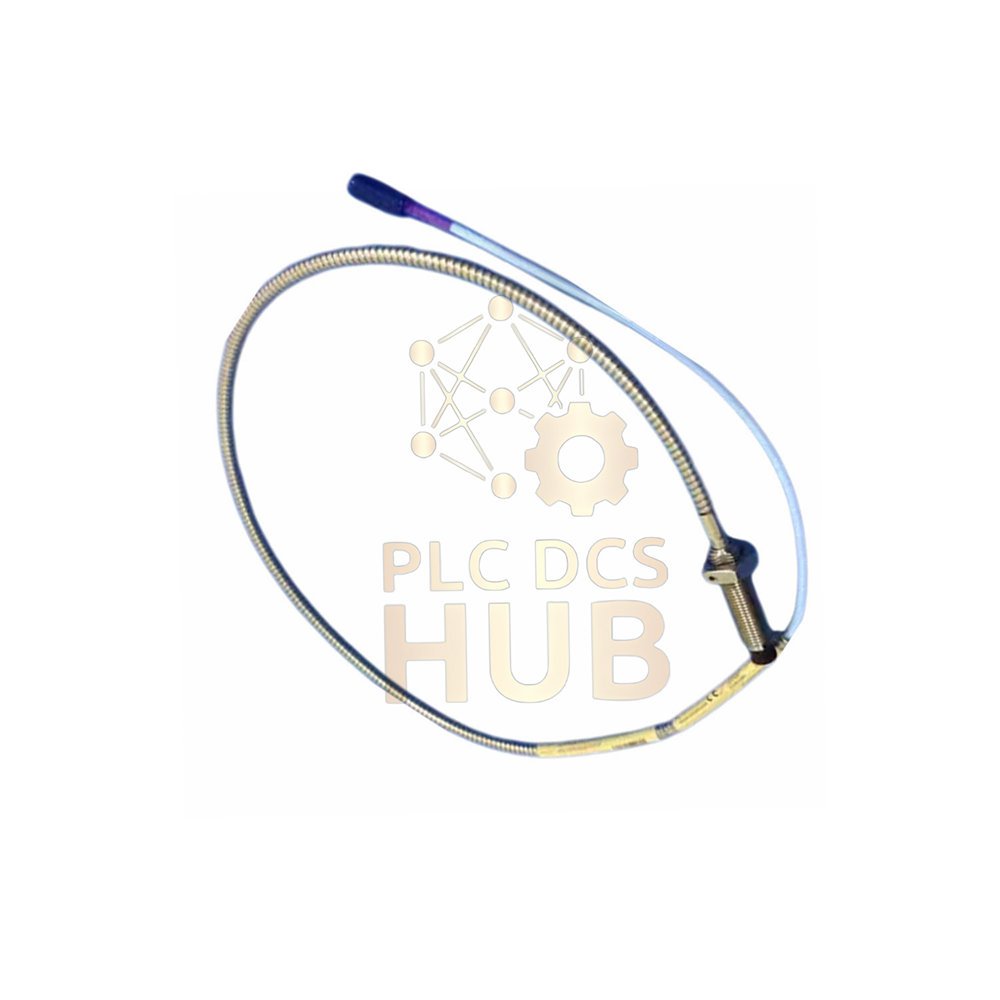

Bently Nevada 330704-010-050-10-01-05 3300 XL 11mm Proximity Probe

Description

Product Overview

This is a new, genuine Bently Nevada 3300 XL 11 mm Proximity Probe. The full part number is 330704-010-050-10-01-05. It comes in original factory packing with a 12-month warranty. This probe measures shaft vibration and position on rotating machinery.

For quick support on WhatsApp, message: +86 158 8020 0923.

Technical Specifications

• Core Identity
  • Brand: Bently Nevada
  • Base Model: 330704 (3300 XL 11 mm Probe, M14x1.5 thread, armored)
• Model Suffix Breakdown (330704-010–050–10–01–05)
  • -010: Unthreaded Length = 10 mm
  • -050: Overall Case Length = 50 mm
  • -10: Total Cable Length = 1.0 meter (3.3 feet)
  • -01: Connector = Miniature coaxial ClickLoc with protector
  • -05: Agency Approval = Multiple Approvals
• Performance Data
  • Measurement Range: Effective up to ~4.6 mm (180 mil) gap.
  • Sensitivity: Output varies with gap (e.g., 0.027 mil pp/gauss at 4.6mm).
  • Frequency Response: Designed for vibration monitoring.
  • Probe Resistance (1.0m): 5.9 Ω ± 0.5 Ω.
• Physical & Environmental
  • Temperature Range: -52°C to +177°C (Do not expose below -34°C for long).
  • Case Material: AISI 304 Stainless Steel.
  • Tip Material: Polyphenylene Sulfide (PPS).
  • Cable: 75 Ω triaxial, FEP insulated, 1.0 m long.
  • Thread & Torque: M14x1.5. Torque to 21.1 N•m (Max: 63.3 N•m).

Installation Guide

• Mount in an M14x1.5 threaded hole.
• Maximum thread engagement is 21 mm.
• Use a torque wrench. Apply 21.1 N•m (187 in•lb).
• Ensure the probe tip faces the target correctly.

Setup & Maintenance

• The ClickLoc connector makes setup easy.
• No routine maintenance is required.
• Check the cable for damage occasionally.

Compatibility

• Made for Bently Nevada 3300 XL monitoring systems.
• Works with modules supporting 11 mm probes.

Certifications

• This model (-05) carries multiple safety approvals.
• It meets standards for hazardous locations.

Package & Warranty

• One new probe in factory packing.
• Backed by a 12-month factory warranty.

Shipping

We ship globally via FedEx, UPS, and DHL. You will get a tracking number.

Applications & Diagnostics

• Use Cases: Perfect for turbines, compressors, pumps, and fans.
• Diagnostics: Helps find machine faults like unbalance and bearing wear.

Frequently Asked Questions (FAQ)

Understanding the Product

• Q: What do the numbers in the part code mean?
• A: Each set of numbers is an option. See the “Technical Specifications” section above for a clear breakdown.
• Q: How is this probe different from others?
• A: The suffix “-010-050-10-01-05” defines its exact size, length, connector, and certifications.

Installation Advice

• Q: What is the most critical installation step?
• A: Applying the correct torque. Too little can cause looseness; too much can damage the probe.
• Q: Can I cut and re-terminate the cable?
• A: No. The cable is integral. Order the correct length from the start.

Selection & Ordering

• Q: I need a 5-meter cable. What model should I order?
• A: You would need model 330704-010-050-50-01-05 (where “-50” = 5.0 meters). Contact us to confirm.
• Q: Is this the exact probe for my machine?
• A: Compare the full part number on your old probe. If it matches 330704-010-050-10-01-05, it is a direct replacement.

Buying Guide

• Step 1: Verify System. You need a compatible 3300 XL system.
• Step 2: Check Part Number. Match all suffix codes to your needs.
• Step 3: Confirm Lengths. The 50mm case and 1m cable must fit your site.
• Step 4: Contact for Help. Unsure? Message us: +86 158 8020 0923.
