Bently Nevada | 330709-000-060-90-02-00 Proximity Probe Metric

Description

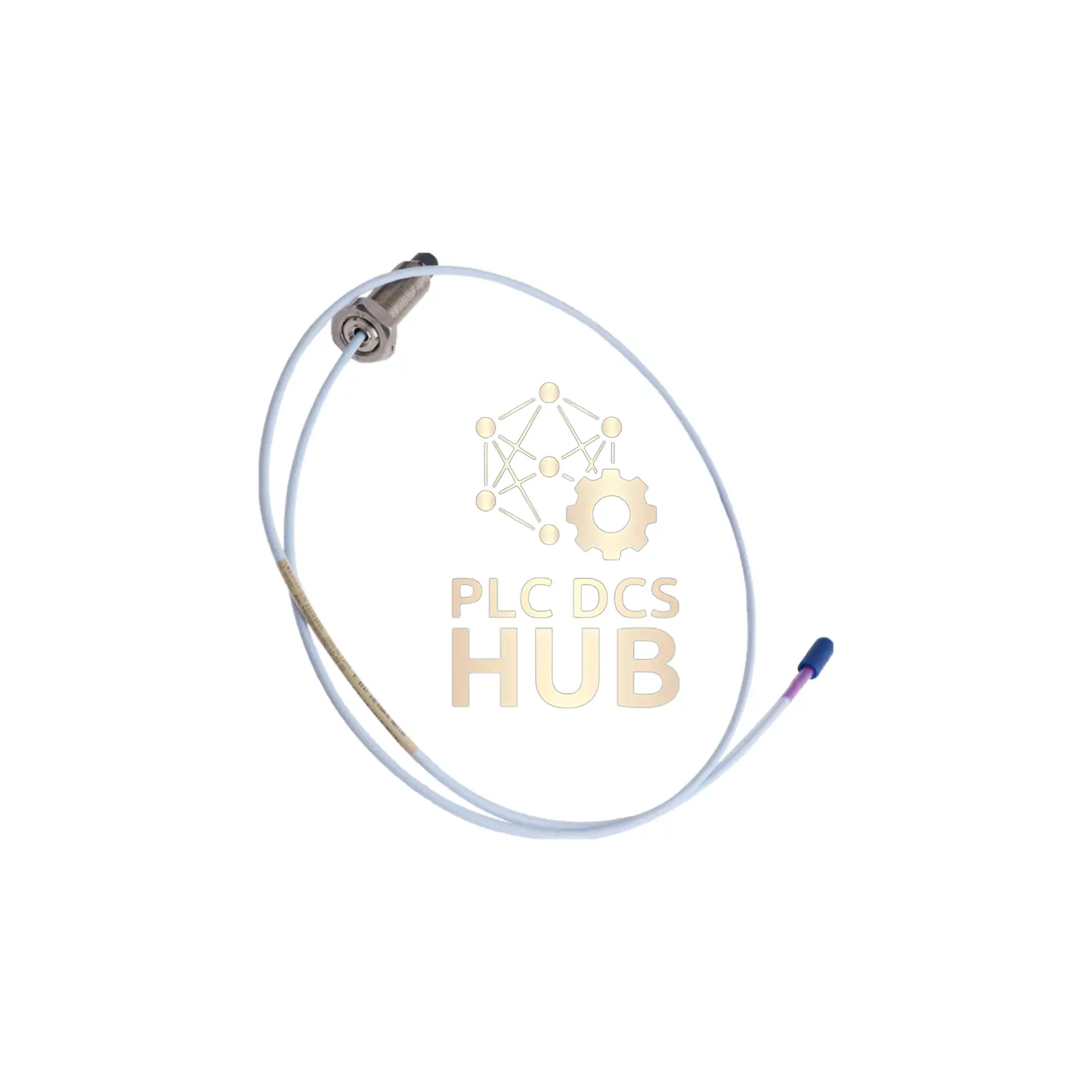

Bently Nevada 330709-000-060-90-02-00 Proximity Probe

Key Technical Parameters

• Measurement Range: 0-2 mm (vibration detection)
• Accuracy: ±1% full scale
• Output Signal: 75 Ω triaxial analog signal
• Operating Temperature: -34°C to +177°C (optimal performance)
• Frequency Response: 0.5 Hz to 10 kHz
• Output Voltage: -18 V to -24 V DC

Installation Guide for 330709-000-060-90-02-00

• Thread Torque: 63.3 N•m (M16x1.5 case)
• Mounting Distance: 1.5 mm from target surface
• Connector Torque: Finger tight (max 0.565 N•m)
• Cable Bend Radius: >25.4 mm (prevents damage)
• Pre-installation Check: Clean threaded surfaces, verify target material

Industrial Applications

• Gas Turbine Vibration Monitoring
• Centrifugal Pump Shaft Alignment
• Steam Turbine Overspeed Protection
• Motor Bearing Wear Detection
• Compressor Rotor Unbalance Analysis

Product Suffix Breakdown

• 330709: Base Model
• 000: 0mm Unthreaded Length
• 060: 60mm Case Length
• 90: 9m Cable (29.5 ft)
• 02: ClickLoc Coaxial Connector
• 00: No Agency Approval

Packaging & Support

• Contents: Probe, 9m FEP Cable, Installation Manual
• Warranty: 12 Months
• Shipping: FedEx/UPS/DHL (48h Global Delivery)
• Stock Status: Available (Same-Day Dispatch)
• Support: 24/7 Technical Hotline
