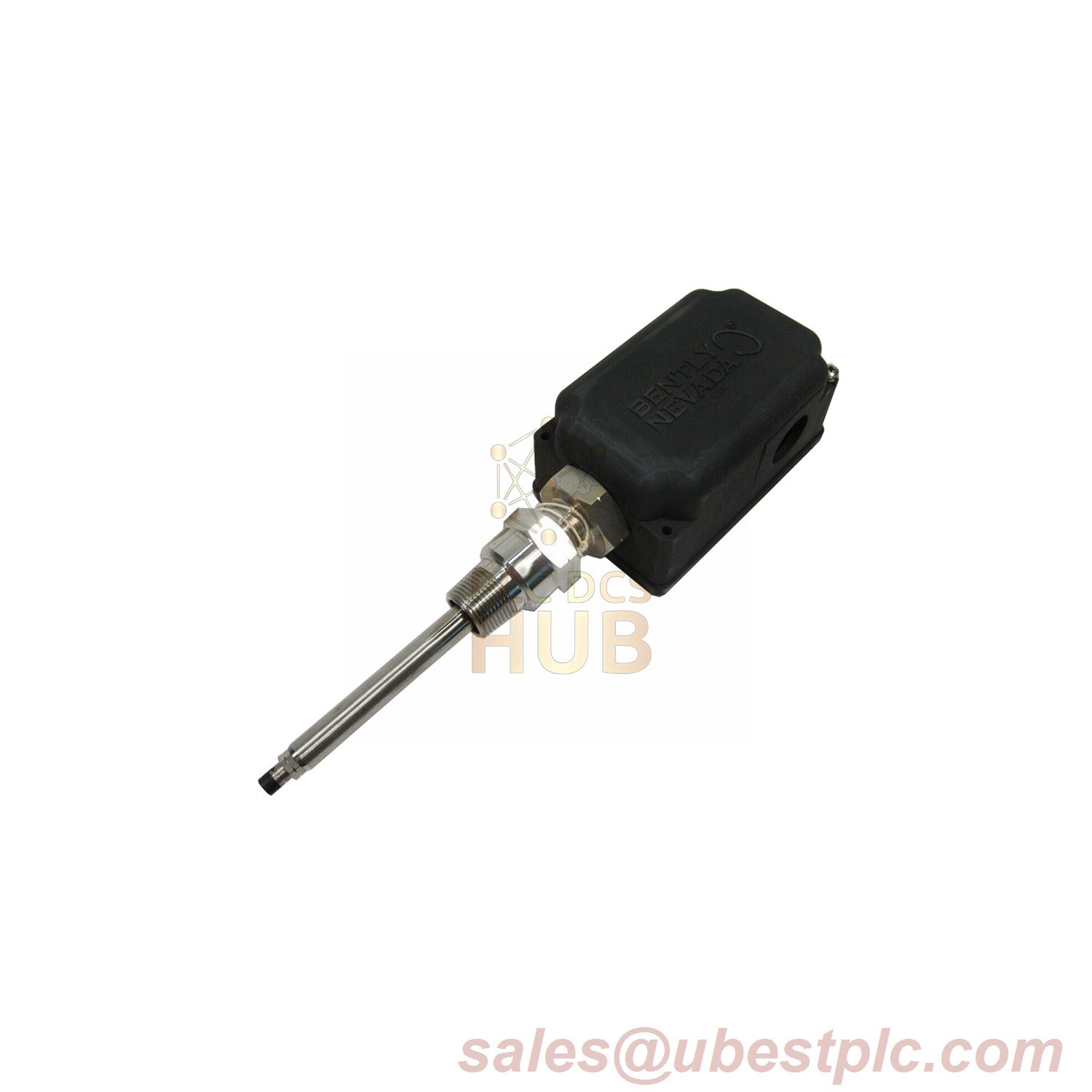

The 330881-16-00-385-06-02 features an ultra-long 385 mm probe penetration for deep machinery inspection, paired with a 3/4-14 NPT to 1/2-14 NPT stainless steel reducer. Designed for non-certified industrial environments, it operates in -51°C to +177°C extremes and includes IP66/BASEEFA-rated housing. Made in USA, COO available.
- Deep Inspection: 385 mm penetration for large-scale equipment monitoring.
- Adapter Flexibility: SST reducer enables multi-thread conduit compatibility.
- Robust Output: 7.87 V/mm ±5% incremental scale factor at 1.27 mm gap.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-16-00-385-06-02 |
| Suffix Codes | 16: 8 mm probe (no approvals) 00: No standoff adapter 385: 385 mm penetration 06: NPT reducer + plugs 02: 3/4-14 NPT thread |
| Voltage Range | -17.5 Vdc to -26 Vdc |
| Cable Specs | 1m FEP triaxial (75Ω), 50Ω output |
| Load Capacity | 912 N (205 lbf) @ 38 mm offset |
