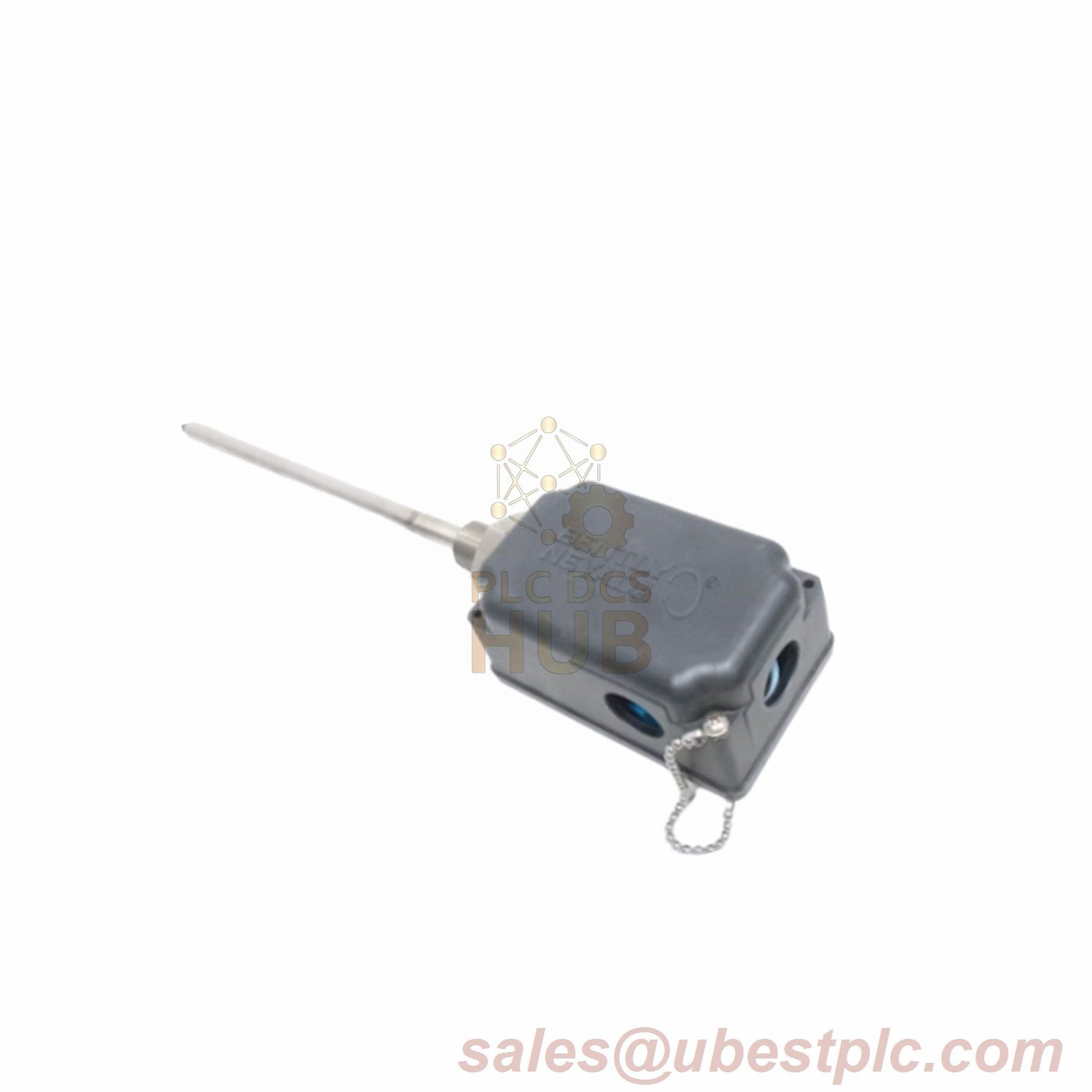

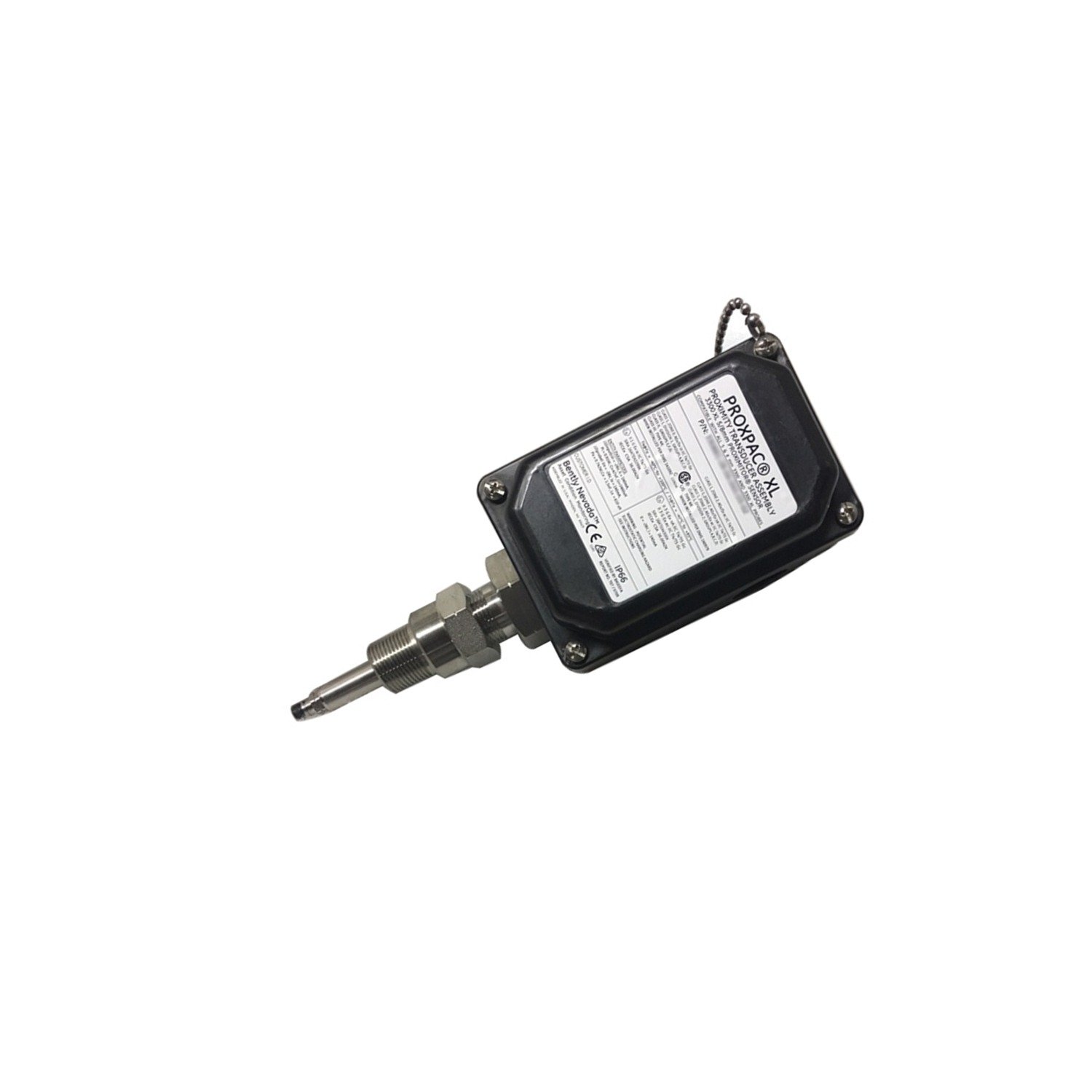

The 330881-28-04-105-00-02 is designed for deep penetration monitoring with a 105 mm probe and 40 mm standoff adapter. Certified to IP66/BASEEFA standards, it operates in extreme temperatures (-51°C to +177°C) and features a UV-resistant PPS housing. Made in USA with optional COO.
- High-Penetration Design: 105 mm probe reach for thick-walled machinery inspection.
- No Pre-Installed Fittings: “00” suffix enables custom conduit integration.
- Impact-Resistant: Withstands 7 J impacts at ambient temperatures.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-28-04-105-00-02 |
| Suffix Codes | 28: 8 mm multi-certified probe 04: 40 mm standoff adapter 105: 105 mm penetration 00: No fittings 02: 3/4-14 NPT thread |
| Voltage Range | -17.5 Vdc to -26 Vdc |
| Cable Specs | 1m FEP triaxial (75Ω), 50Ω output |
| Mechanical Load | 912 N (205 lbf) @ 38 mm offset |
