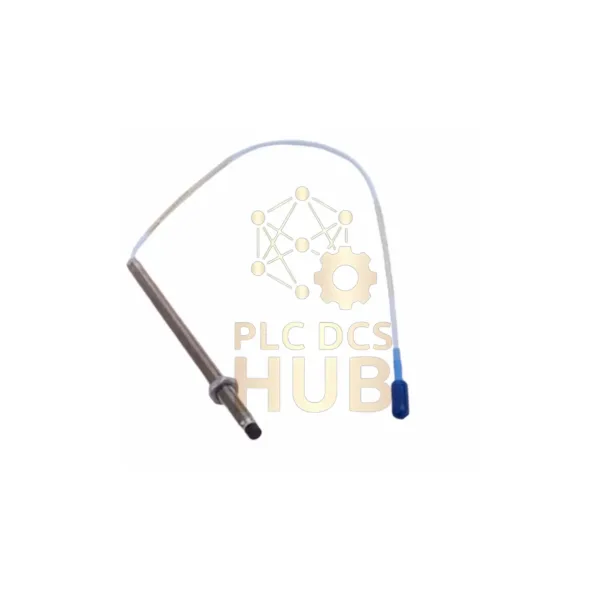

Bently Nevada 330903-00-12-05-02-CN Proximity Probe | 3300 NSv

Description

Product Overview

Genuine Bently Nevada 330903-00-12-05-02-CN. This is the latest 3300 NSv series proximity probe. It is designed for vibration and position monitoring on critical rotating machinery. This probe offers enhanced chemical resistance. It is compatible with older 3300 RAM probe systems for easy upgrade.

Detailed Technical Specifications

• Brand & Model: Bently Nevada 330903-00-12-05-02-CN (3300 NSv Series)
• Product Type: Proximity Eddy Current Sensor Probe
• Electrical Specifications:
  • Probe DC Resistance (0.5m): 4.0 Ω ± 0.5
  • Linear Range: 1.5 mm (60 mils), starts 0.25 mm from target
  • Recommended Gap Setting: 1.0 mm (40 mils)
  • Incremental Scale Factor (ISF): 7.87 V/mm (+12.5% / -20%)
  • Deviation from Straight Line (DSL): Less than ±0.06 mm
  • Frequency Response: 0-10 kHz (±3 dB), with up to 305m field wiring
• Mechanical & Physical Specs:
  • Thread Specification: M8 x 1
  • Unthreaded Length: 00 mm
  • Overall Case Length: 120 mm
  • Total Cable Length: 0.5 meters
  • Connector: Miniature Coaxial ClickLoc Connector
  • Probe Tip Material: Polyphenylene Sulfide (PPS)
  • Probe Case Material: AISI 304 Stainless Steel
• Environmental & Operating Conditions:
  • Operating Temperature: -52°C to +177°C
  • Storage Temperature: -52°C to +177°C
  • Pressure Seal: Viton O-ring (not factory pressure tested)
  • Minimum Bend Radius: 25.4 mm
  • Installation Torque: Finger tight / Max 0.56 N•m (5 in•lb)
• Target Requirements:
  • Minimum Target Diameter: 8.9 mm
  • Recommended Minimum Target Diameter: 13 mm (for axial position)

Ordering & Part Number Breakdown

Model: 330903–00–12–05–02–CN

• 330903: 3300 NSv Probe, M8x1 thread, without armor
• -00-: Unthreaded Length = 00 mm
• -12-: Overall Case Length = 120 mm
• -05: Total Cable Length = 0.5 meters
• -02: Connector Type = Miniature Coaxial ClickLoc
• -CN: Country Specific Approvals

Service & Delivery

• Warranty: Full 12-month manufacturer warranty.
• Condition: New & Original, in factory packaging. In stock.
• Shipping: Worldwide delivery via FedEx, UPS, DHL. Fast and reliable.

Frequently Asked Questions (FAQ)

Technical & Application

• What is the main difference between this 3300 NSv probe and the old 3300 RAM probe?
• The NSv probe has higher chemical resistance. It is better for harsh environments like chemical or process compressors. It also has superior side-view characteristics.
• What should I consider for axial position measurement on targets smaller than 13mm in diameter?
• Small shaft diameters can change the scale factor. Reduce the gap between probe and target to limit this effect. Refer to the calibration curves in the manual.

Installation & Commissioning

• What is the correct installation torque for the M8 threaded probe?
• Recommended torque is 5.1 N•m (45 in•lb). Maximum is 7.3 N•m (65 in•lb). “Finger tight” is often sufficient. Avoid over-tightening to prevent damage.
• Is the probe’s pressure seal factory tested?
• No, standard probes are not factory pressure tested. If your application requires certified pressure sealing, contact the manufacturer for custom testing.

Selection Guide

• How do I choose the correct probe cable length for my machine?
• Choose based on the actual distance from the mounting point to the junction box or proximitor. Allow some slack for routing, but avoid excessive length to prevent signal issues. Common lengths are 0.5m, 1m, 5m, and 9m.

Buyer’s Checklist

• Confirm your monitoring system (e.g., 3300 XL NSv) is compatible with this probe.
• Verify the mounting thread on your equipment is M8x1.
• Check if the 0.5m cable length is sufficient for your wiring distance.
• Evaluate if the operating environment has chemicals to benefit from NSv’s resistance.
• Have the correct ClickLoc mating connector and tool ready.
