Description

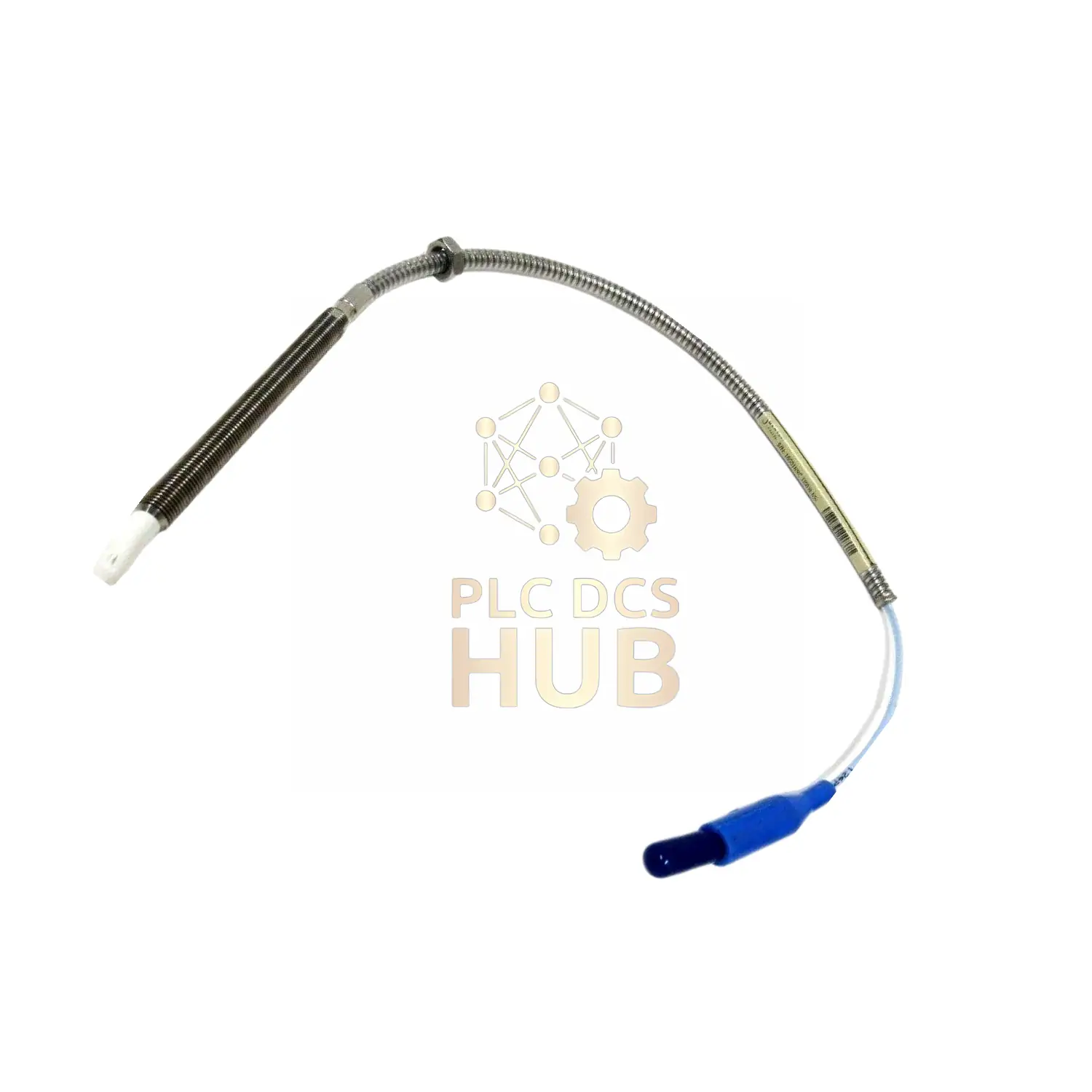

Bently Nevada 3300 NSv Probe: Precision Vibration Measurement
Factory-fresh vibration sensor with 1-year warranty. Ships worldwide via FedEx, UPS or DHL. Ready for industrial use.
Product Identification
- Full Part Number: 330904-00-15-70-11-00
- Suffix Breakdown:
- -00: 0mm unthreaded length
- -15: 150mm case length
- -70: 7.0 meter cable
- -11: FluidLoc® waterproof cable
- -00: No agency approvals
Core Specifications
- Range: 0.25-1.75mm detection
- Accuracy: ±0.06mm maximum error
- Temp Limit: -52°C to +177°C
- Response Speed: 0-10,000 Hz
- Waterproof: FluidLoc® sealed cable
- Thread Size: M8x1 with 12mm max depth
Installation Guide
- Set gap to 1.0mm (0.04in) from target
- Hand-tighten plus 1/4 turn maximum
- Keep cable bends over 25.4mm radius
- Use in dry environments only (no approvals)
Package Contents
- 3300 NSv Probe (7m FluidLoc® cable)
- ClickLoc connector with protector
- 12-month warranty card
Technical Questions
- Q: What does “no agency approvals” mean?
A: This model lacks safety certifications – suitable for non-regulated environments. - Q: Can I use this in oil submersion?
A: The Viton seal protects against splashes but not full pressure immersion. - Q: How long does shipping take to Europe?
A: 3-5 business days via DHL Express. - Q: Minimum shaft size for accurate readings?
A: 8.9mm diameter (13mm recommended). - Q: Can I cut the cable to custom length?
A: No – cutting voids warranty. Choose from 0.5m, 1m, 5m or 7m.
Download Full Specs:
Get Technical Manual (PDF)
