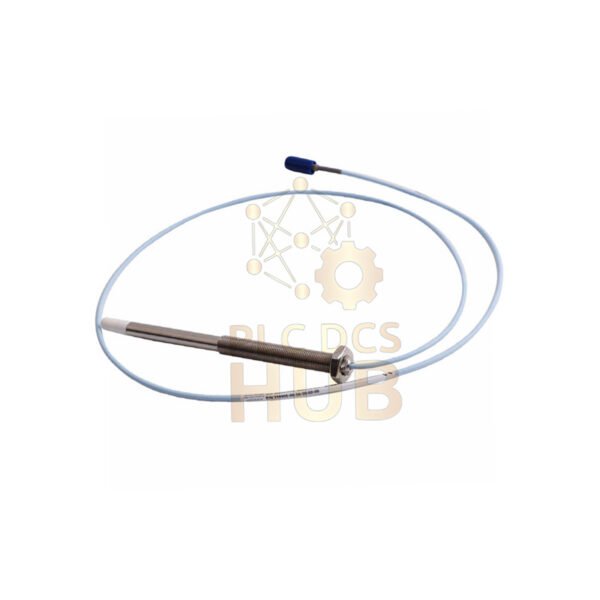

Bently Nevada 330905-00-05-10-02-05 | 3300 NSv Proximity Sensor M10x1

Description

Product Overview

Get genuine Bently Nevada 3300 NSv Proximity Probes. Our part 330905-00-05-10-02-05 is new and factory-sealed. It delivers precise vibration and position data for critical machines. This probe offers better chemical resistance than older models. Perfect for tough environments like process compressors. Need help? Chat now: +86 158 8020 0923.

Key Features & Benefits

• Authentic & New: Original Bently Nevada product with 12-month warranty.
• Direct Upgrade: Replaces older 3300 RAM probes easily.
• Robust Design: Stainless steel body and chemical-resistant PPS tip.
• Superior Performance: Excellent side-view for accurate gap measurement.
• Global Shipping: Fast delivery via FedEx, UPS, or DHL.

Detailed Technical Specifications

• Brand & Family: Bently Nevada 3300 NSv Series
  • Complete Part Number: 330905-00-05-10-02-05
  • Part Number Decoder:
    • 330905: Base Model (3300 NSv Probe, M10x1, No Armor)
    • -00: Unthreaded Shank Length (0 mm)
    • -05: Overall Case Length (50 mm)
    • -10: Total Cable Length (1.0 Meter / 39 Inches)
    • -02: Connector Type (Miniature Coaxial ClickLoc)
    • -05: Agency Approvals (Multiple Certifications)
• Core Measurement Parameters
  • Measuring Range: 1.5 mm (60 mils) linear range.
  • Recommended Gap: 1.0 mm (40 mils) from target.
  • Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil).
  • Linearity: Deviation less than ±0.06 mm.
  • Frequency Response: 0 to 10 kHz.
• Physical & Environmental Specs
  • Probe Tip: Polyphenylene Sulfide (PPS).
  • Probe Case: AISI 304 Stainless Steel.
  • Temperature Range: -52°C to +177°C.
  • Sealing: Viton O-ring for environmental protection.
  • Minimum Target: 8.9 mm diameter (13 mm recommended).
  • Cable Bend Radius: Minimum 25.4 mm (1 inch).
• Electrical Characteristics
  • Probe DC Resistance: 4.2 ± 0.5 ohms (for 1.0m length).
  • Cable Type: 75 Ω coaxial with FEP insulation.
  • Field Wiring: Use shielded triad cable, max 305 meters.
• Installation Torque
  • Probe into Case: Finger tight, max 0.56 N•m (5 in-lb).
  • Connector to Connector: Recommended 7.5 N•m (66 in-lb).

Simple Installation Guide

• Set the probe gap to 1.0 mm using a feeler gauge.
• Ensure target surface is clean, flat, and large enough.
• Hand-tighten only. Do not over-torque the probe body.
• For small shafts under 13mm, use a smaller initial gap.
• Use proper shielded cable for long runs to the monitor.

Maintenance & Compatibility

This probe needs minimal maintenance. It works directly with existing 3300 XL NSv Proximitor sensors. It replaces old 3300 RAM probes without system changes. Check our full 3300 NSv Proximity Probes collection for other variants.

Certifications & Approvals

This product has multiple international safety approvals (option -05). It meets standards for use in various hazardous locations (EPL Ga, Gc, Dc).

Package & Warranty Details

• Condition: 100% New, Original, Factory Packing.
• Contents: One Bently Nevada 3300 NSv Probe.
• Warranty: Full 12 Months from manufacturer.
• Shipping: We ship worldwide via FedEx, UPS, DHL.

Where to Use It

• Monitor vibration in turbines, compressors, and pumps.
• Measure axial shaft position in motors and gearboxes.
• Essential for predictive maintenance in oil, gas, and power plants.
• Helps diagnose machine faults like unbalance and misalignment.

Frequently Asked Questions

Choosing the Right Probe

• Is this the exact replacement for my old probe?

Yes, if your old probe is a 3300 RAM series with M10x1 thread and a 1-meter cable. Check the part number or physical specs.

• What if I need a different cable length?

We stock other lengths. Contact us with your requirement. We will find the right part for you.

Installation Tips

• Why is gap setting so important?

The gap directly affects output voltage and linearity. An incorrect gap gives wrong vibration readings.

• My readings are noisy. What should I check?

First, check all connector connections. Second, verify you are using proper shielded field wiring. Keep wiring away from power cables.

Performance & Support

• Can it measure very high-speed machinery?

Yes. Its frequency response up to 10 kHz covers most industrial rotating equipment.

• Is pressure testing available?

The probe has a seal but is not factory pressure-tested. Contact us for special testing needs before you order.

How to Order with Confidence

Match your system’s thread size, cable length, and connector. Our part number 330905-00-05-10-02-05 covers a common configuration. For other options, send us a message. We provide expert technical support to ensure you get the correct part.
