Bently Nevada | 330905-00-08-05-01-05 Proximity Probe

Description

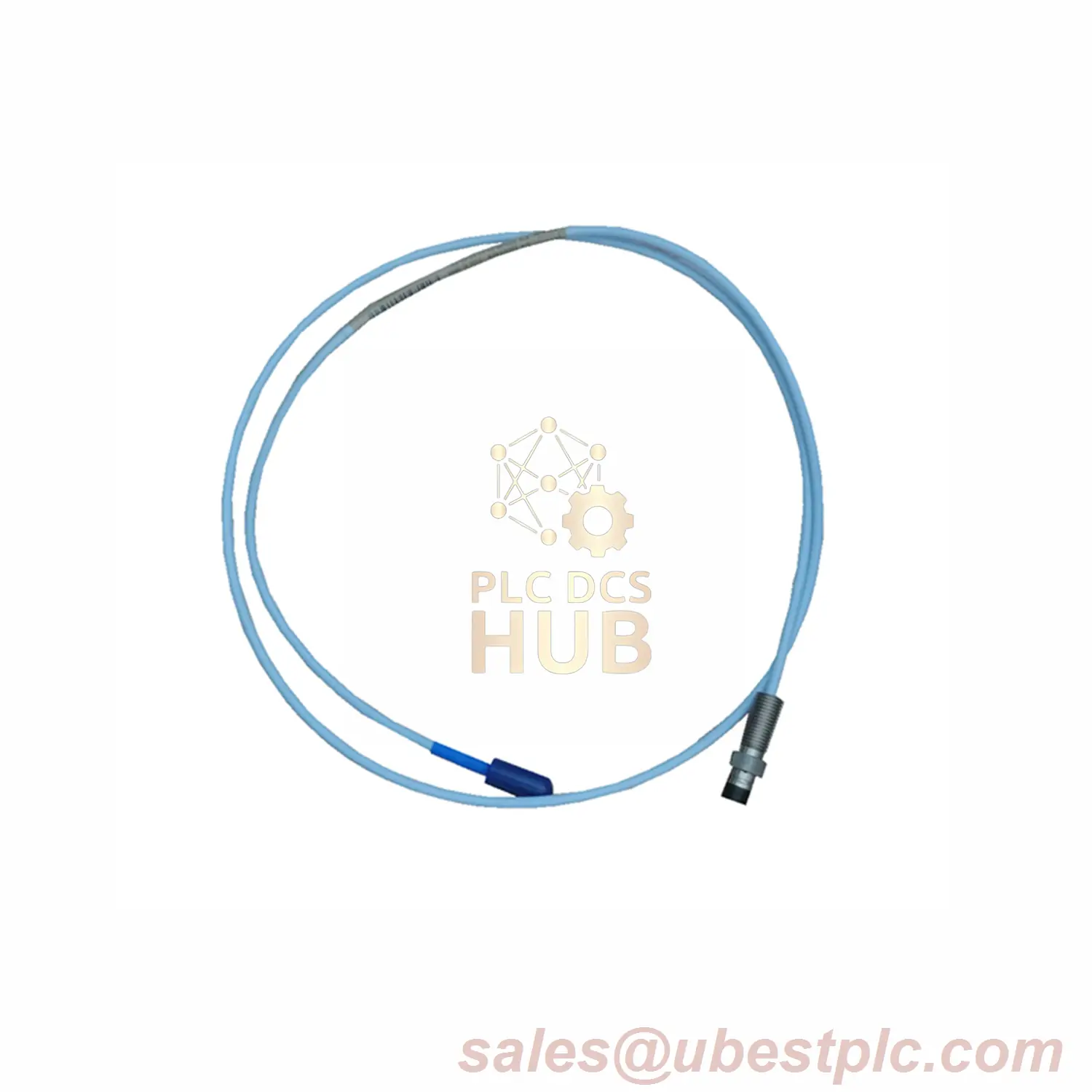

Bently Nevada 3300 NSv Probe

Brand New Probe 330905-00-08-05-01-05 with 12-Month Warranty. Direct replacement for 3300 RAM systems. Improved chemical resistance. Ships sealed in factory packaging.

Model Code Breakdown

• 330905-00-08-05-01-05
• -00: 0 mm unthreaded section
• -08: 80mm case length
• -05: 0.5m cable (20 inches)
• -01: ClickLoc connector + protector
• -05: Multiple agency approvals

Core Specifications

• DC resistance: 4.0Ω ±0.5Ω (0.5m cable)
• Max cable run: 305 meters
• Optimal gap: 1.0mm (40 mils)
• Temp range: -52°C to +177°C

Installation Notes

• Tighten by hand first (max 5 in-lb)
• Minimum bend: 25.4mm (1 inch)
• Stainless steel body (AISI 304)
• PPS tip material

Certifications & Accuracy

Includes multi-agency approvals. Measures within ±0.06mm tolerance. Works with all 3300 XL NSv monitors.
