Description

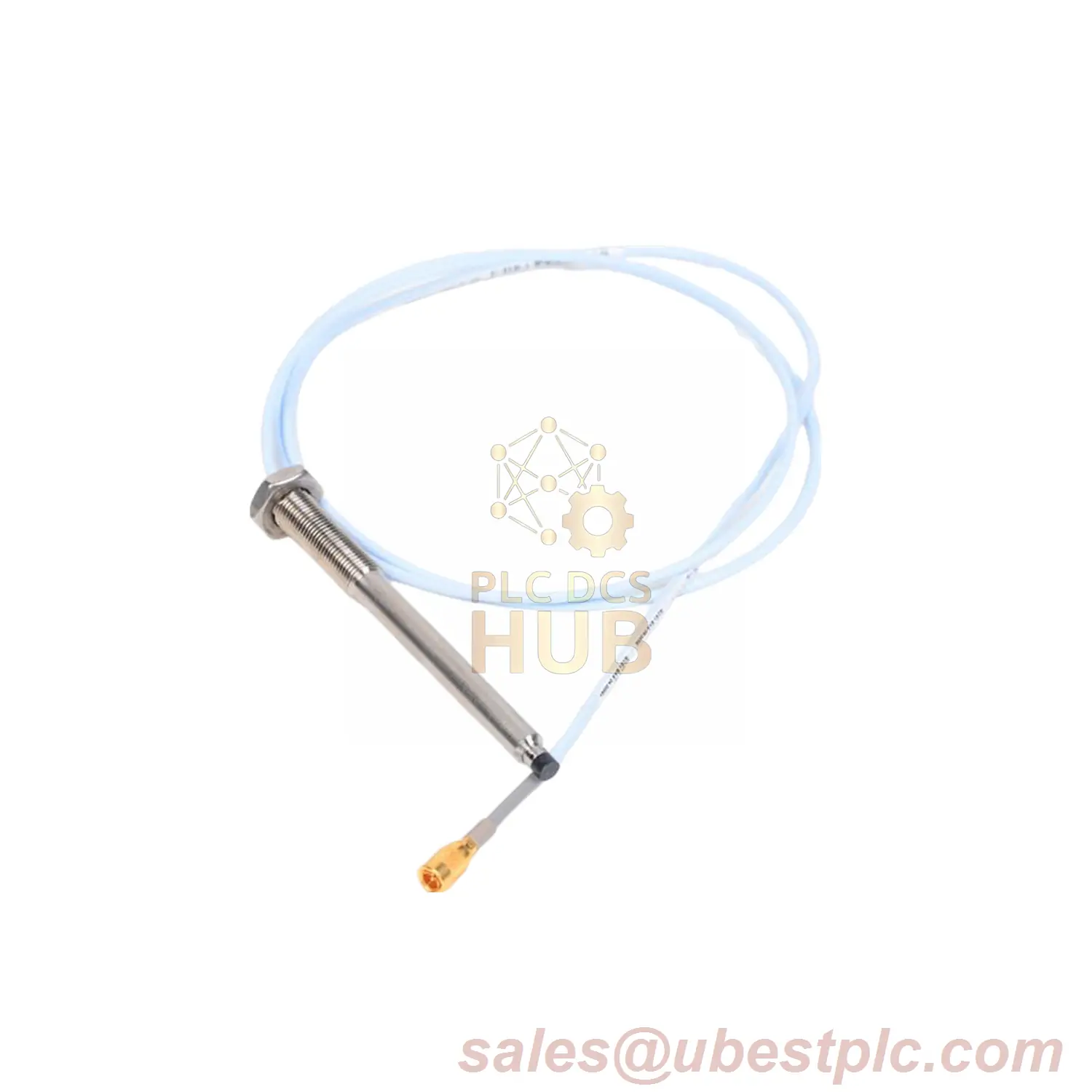

3300 NSv Proximity Probe | Compact Industrial Sensor
Core Identification
Model: 330908-12-20-05-02-05 | Origin: U.S.A Manufactured
Thread: 3/8-24 UNF (Unarmored) | Case: AISI304 SST
Tip: PPS Polymer | Certifications: Multiple Agency Approvals
Suffix Configuration Guide
▪ 12: 1.2″ (30.5mm) unthreaded shaft
▪ 20: Compact case length 2.0″ (51mm)
▪ 05: Total cable 0.5m/20″
▪ 02: ClickLoc connector + 75Ω FEP coaxial
▪ 05: Multi-certification compliant
Precision Engineering
✓ Torque Control: Max 33.9N·m | Safe 11.3N·m
✓ Thread Safety: Max engagement 0.563″ (14.3mm)
✓ Seal System: Viton® O-ring (-26°C to +205°C stability)
✓ Mass Profile: 14-150g (0.5-5.3oz)
Performance Metrics
• Electrical: 4.0Ω±0.5Ω resistance @0.5m
• Thermal: Operation from -52°C (-62°F) to +177°C (+351°F)
• Cold Caution: Avoid ≤-34°C (-30°F) prolonged exposure
• Warranty: 1-year comprehensive coverage
Critical Specifications
▲ Cable options: 0.5/1/5/7m FEP-insulated
▲ Pressure design: Non-tested differential sealing
▲ Storage temp matches operational range
