Description

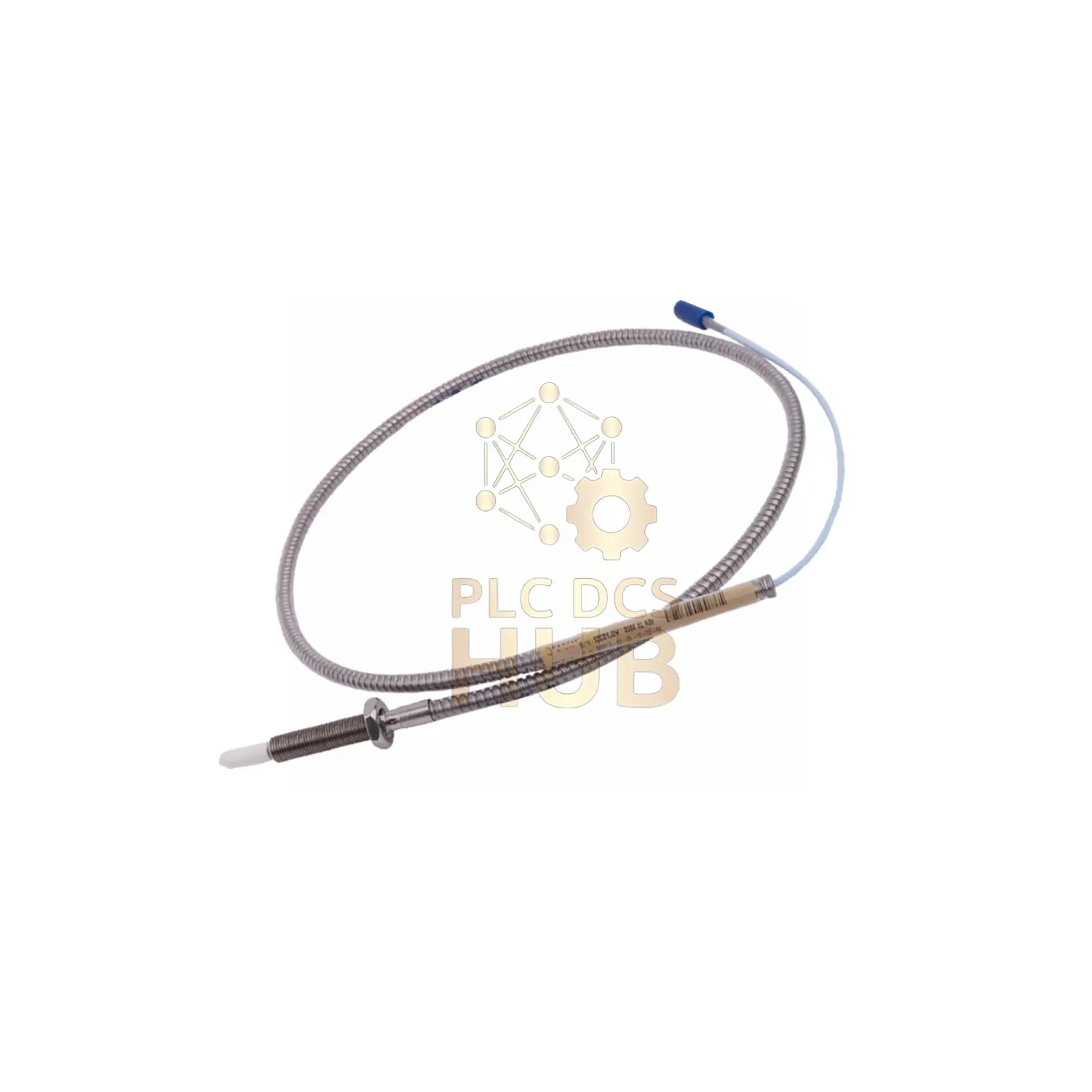

Bently Nevada 3300 NSv Mid-Length Vibration Probe
Made in USA. Perfect balance with 2.0″ case. Multiple safety approvals. For precise machine health monitoring.
Product Configuration Breakdown
330908-12-20-10-02-05
• 12 = 1.2″ unthreaded section
• 20 = 2.0″ case length
• 10 = 1.0 meter cable
• 02 = ClickLoc connector
• 05 = Multiple safety approvals
Technical Highlights
- Frequency Response: 0-10 kHz (±3dB)
- Linearity: ±1% within 0.5-2.0mm range
- Shock Survival: 100g (11ms duration)
- Cable Bend Radius: 25mm minimum
- Output Signal: AC voltage proportional to gap
- Ingress Protection: IP67 when properly installed
Performance Data
Temperature Stability
±0.5% variation from -30°C to +100°C
Cable Pull Strength
50N (11.2 lbf) minimum
Vibration Limit
20g peak (10-2000 Hz)
Installation Guide
- Optimal sensing distance: 1.0mm from target
- Use 11.3 N•m torque during installation
- Max 0.563″ thread engagement
- Avoid temperatures below -34°C during installation
Warranty & Shipping
- 12-month defect-free guarantee
- Global delivery via FedEx/UPS/DHL
- Express shipping: 2-5 business days
Expert Answers
Q: Minimum target size requirement?
A: 3x probe tip diameter (≥11.1mm)
Q: Compatible with high-humidity environments?
A: Yes, FEP cable resists moisture absorption
Q: EMI/RFI protection?
A: 75Ω coaxial design provides noise immunity
Q: Lead time for replacement?
A: In-stock units ship same day
Model Comparison
| Model | Case Length | Thread | Best For | Details |
|---|---|---|---|---|
| 330908-12-20-10-02-05 | 2.0″ | 3/8-24 UNF | Mid-space applications | Current model |
| 330908-00-08-05-02-05 | 0.8″ | Smooth body | Extremely tight spaces | No threads |
| 330908-00-31-05-02-05 | 3.1″ | 3/8-24 UNF | Deep installations | Longer reach |
