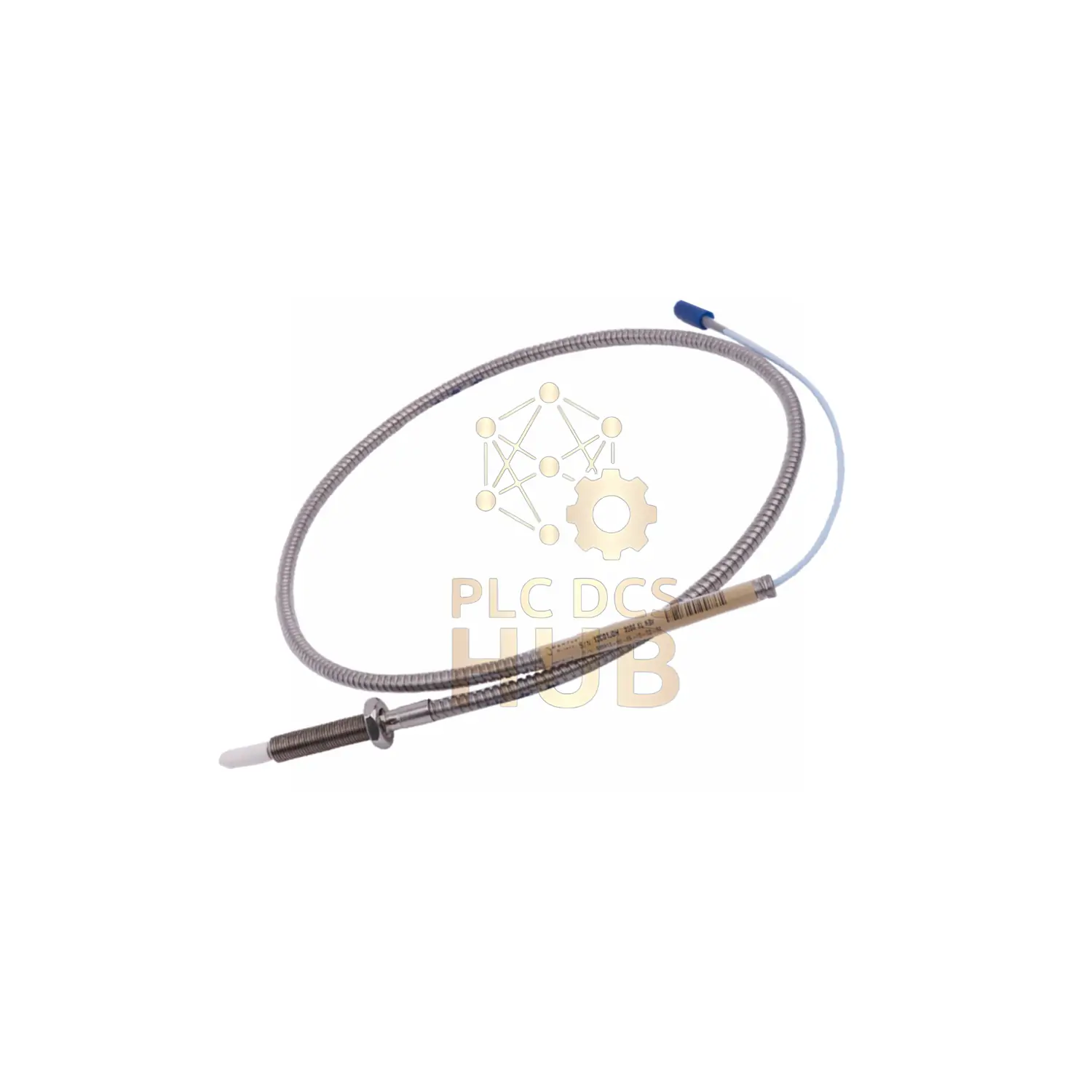

Bently Nevada 3300 NSv Proximity Probe – Precision Machinery Monitoring
Made in USA. Industrial-grade vibration sensor with extended 3.6″ case for deeper installations. Ideal for tight clearance applications.
Model Configuration
- Full Part Number: 330908-12-36-10-02-00
- 12: 1.2″ unthreaded section
- 36: 3.6″ extended case length
- 10: 1.0 meter cable (39″)
- 02: ClickLoc connector (standard)
- 00: No agency approvals required
Key Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Series
- Thread: 3/8-24 UNF
- Case: AISI304 Stainless Steel
- Tip: PPS Polymer
- Cable: 75Ω FEP coaxial
- Resistance: 4.2Ω ±0.5 @1m
- Temp Range: -52°C to +177°C
- Weight: 14-150g (0.5-5.3oz)
Installation Notes
- Max Torque: 33.9 N•m (300 in-lb)
- Optimal Torque: 11.3 N•m (100 in-lb)
- Max Thread Engagement: 0.563″
- Avoid sustained exposure below -34°C
Compatible Systems
- Bently Nevada 3300 NSv monitoring racks
- 3500/42M Proximitor modules
- All ClickLoc interface systems
Package Includes
- 1 × Proximity probe assembly
- Connector dust protector
- 12-month manufacturer warranty
Global Shipping
FedEx Priority • UPS Worldwide • DHL Express
Technical FAQ
Q: What’s the advantage of 3.6″ case length?
A: Allows deeper installation in thick machinery walls for better stability
Q: Is calibration required after installation?
A: No factory calibration needed – ready for gap voltage setup
Q: Can cable be repaired if damaged?
A: Not recommended – FEP insulation requires specialized tooling
Q: Maximum pressure differential rating?
A: Viton O-ring provides sealing but not rated for high-pressure systems
Compare Similar Models
| Model | Case Length | Cable Length | Approvals | Details |
|---|---|---|---|---|
| 330908-12-36-10-02-00 | 3.6″ | 1.0m | None | Current model |
| 330908-12-16-05-02-05 | 1.6″ | 0.5m | Multiple | Compact design |
| 330908-12-36-05-02-05 | 3.6″ | 0.5m | Multiple | Short cable version |
