Description

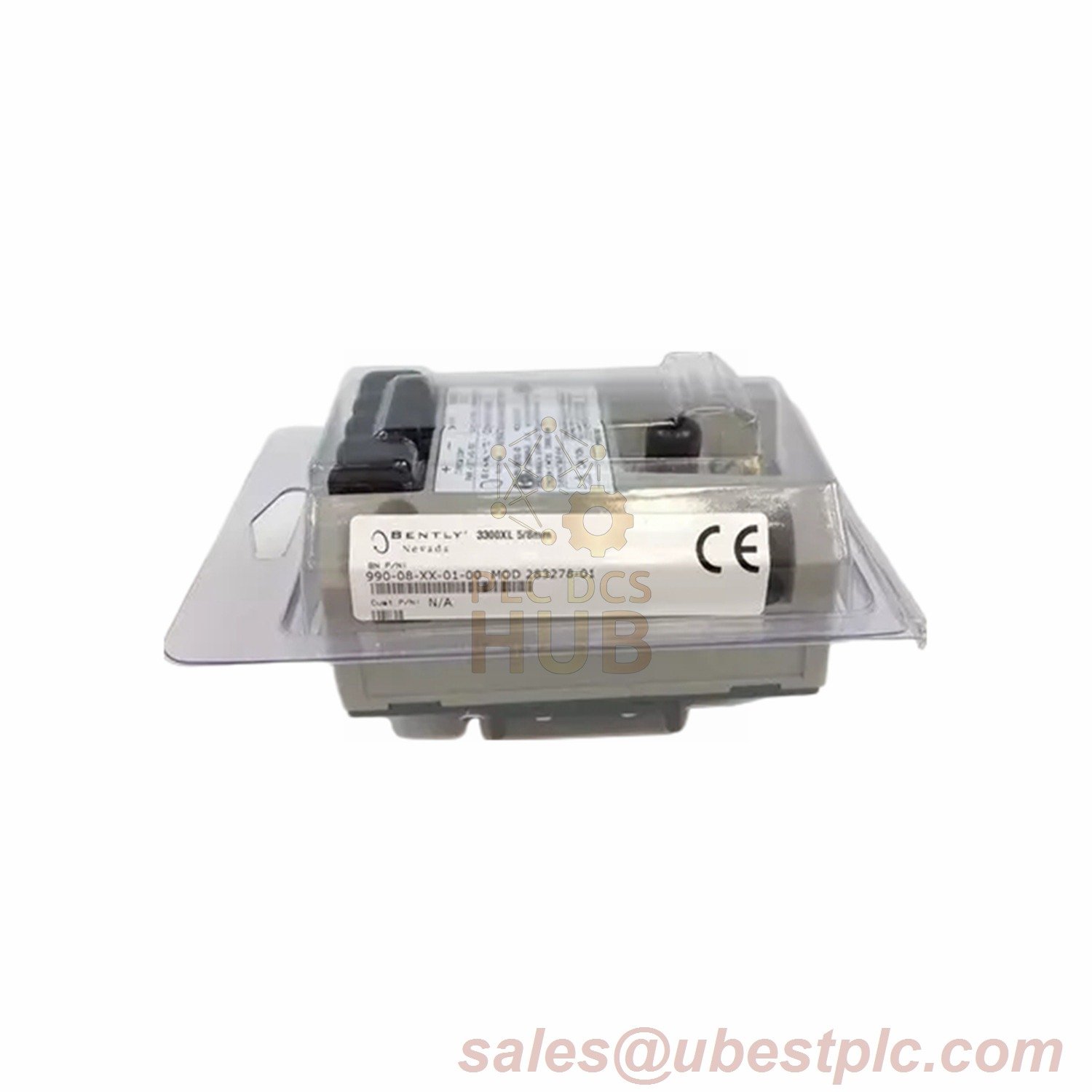

The Bently Nevada 990-08-XX-01-00 Vibration Transmitter (Model: 165353-01) is a precision-engineered device for industrial vibration monitoring. Designed and Made in the U.S.A, it accepts 3300 NSv Proximity Probes to deliver reliable 4–20 mA output signals for machinery health analysis. Ideal for non-hazardous, Zone 2, or Division 2 environments, this transmitter features DIN rail mounting and complies with stringent operational standards.
Technical Data
- Brand: Bently Nevada
- Product No.: 990-08-XX-01-00
- Model: 165353-01
- Suffix Code Breakdown:
- 08: 0–8 mils pp (0–200 μm pp) Full-scale Range
- XX=50/70: 5.0 m (16.4 ft) / 7.0 m (23.0 ft) System Cable Length
- 01: 35 mm DIN Rail Mounting
- 00: Agency Approval Not Required
- Electrical Specifications:
- Input Power: +12 to +35 Vdc
- Output Signal: 4–20 mA (2-wire)
- Loop Accuracy: ±1.5% over full-scale range
- Probe Gap: 0.5–1.75 mm (20–55 mils)
- Max Loop Resistance: 1,000 Ω @ 35 Vdc
- Frequency Response: 5 Hz–6,000 Hz (±3 dB)
- Temperature Range:
- Operating: -35°C to +85°C (-31°F to +185°F)
- Storage: -52°C to +100°C (-62°F to +212°F)
- Weight: 0.43 kg (0.9 lb)
- Certifications: Compliant with hazardous area standards for Zone 2/Div 2
Critical Notes:
- Probe Linear Range: 1.4 mm (55 mils), starting at 0.25 mm (10 mils) from target.
- Incremental Scale Factor: 7.87 mV/µm ±10% (temperature stability: ±10% @ 0°C–70°C).
- NOT OK Response: Output drops to <3.6 mA within 100 µs during faults.
- Power-Up Delay: 2–3 seconds for system initialization.
- Minimum Target Size: 9.5 mm (0.375 in) diameter.
Contact: For technical or pricing inquiries, email sales@ubestplc.com.
