Description
Bently Nevada Accelerometer

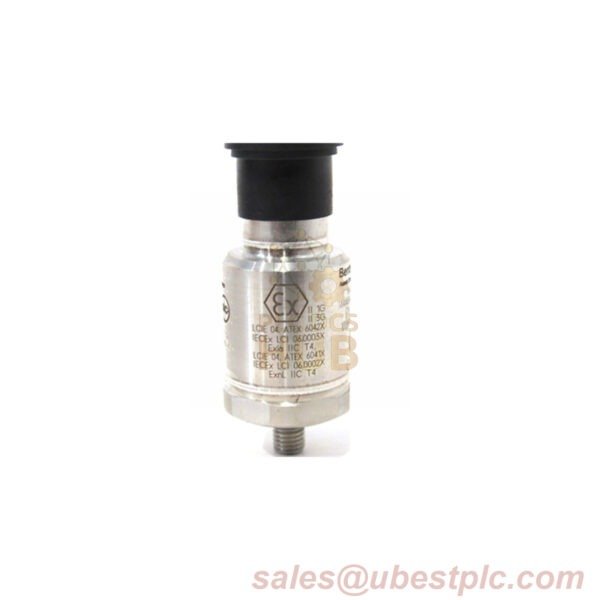

Made in the U.S.A., this 3300 XL Accelerometer 330400-01-00 is engineered for precision vibration measurement in harsh industrial environments. Featuring a ¼-28 UNF integral stud mount and 316L stainless steel construction, it delivers reliable performance with high sensitivity and broad frequency response.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330400-01-00 |
| Suffix Codes | 01: ¼-28 UNF Integral Stud 00: No Agency Approvals |
| Acceleration Range | 490 m/s² (50 g) peak (10 Hz–15 kHz) |
| Frequency Response | 10 Hz–15 kHz (±3 dB) 30 Hz–10 kHz (±10%) |
| Broadband Noise | 0.039 m/s² (0.004 g) rms |
| Temperature Sensitivity | -11% to +3% (-55°C to +121°C) |
| Mounted Resonance | >30 kHz, 20 dB peak |
| Base Strain Sensitivity* | G-series: 49 mm/s²/mstrain Pre-G-series: 980 mm/s²/mstrain (w/o base) *Use Mounting Base for minimal strain |
| Physical | Weight: 99 g (3.5 oz) Dimensions: 23 mm dia. x 59 mm H Connector: 3-pin MIL-C-5015 Material: 316L Stainless Steel |
| Environmental | Humidity: 100% condensing Shock: 5000 g survivability Magnetic Field: <225 mg/gauss |
Contact Us: For COO requests or technical support, email sales@ubestplc.com.
