Bently Nevada | Extension Cable 330130-035-01-00

Description

Description:

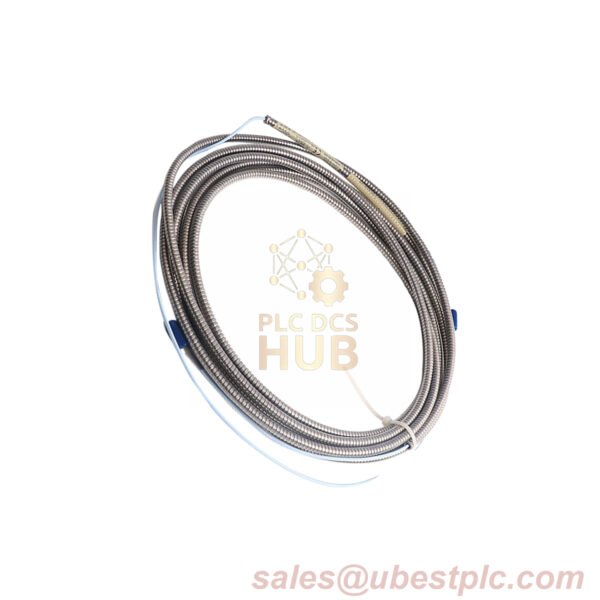

The Bently Nevada 330130-035-01-00 Extension Cable is an essential component for connecting the 3300 XL series probes to proximity sensors. Manufactured in the USA, this high-quality extension cable is designed for use with 3300-series and 3300 XL 8 mm probes, ensuring seamless integration with monitoring systems. The armored cable option ensures durability and protection for demanding industrial environments.

Technical Data:

• Brand: Bently Nevada
• Model: 330130-035-01-00
• Product Type: Extension Cable
• Made In: U.S.A
• Cable Length: 3.5 meters (13.1 feet)
• Connector Protector Option: Armored cable
• Approval: Not required
• Weight:
  • Armored Extension Cable: 0.77 kg (34 g/m)
• Proximitor Sensor Compatibility: Accepts one 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm Proximity Probe
• Power Supply:
  • Requires -17.5 Vdc to -26 Vdc for operation without barriers at 12 mA max consumption
  • -23 Vdc to -26 Vdc with barriers (operation at more positive voltage than -23.5 Vdc may reduce linear range)
• Output Resistance: 50 Ohm
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Nominal Resistance (RCORE):
  • 3.5 m cable: 0.77 ± 0.12 Ω
• Nominal Resistance (RJACKET):
  • 3.5 m cable: 0.23 ± 0.05 Ω
• Linear Range:
  • From 0.25 mm to 2.3 mm (10 to 90 mils), with a voltage range of approximately -1 to -17 Vdc
  • 0.25 mm (10 mils) minimum gap for linear measurement
