Description

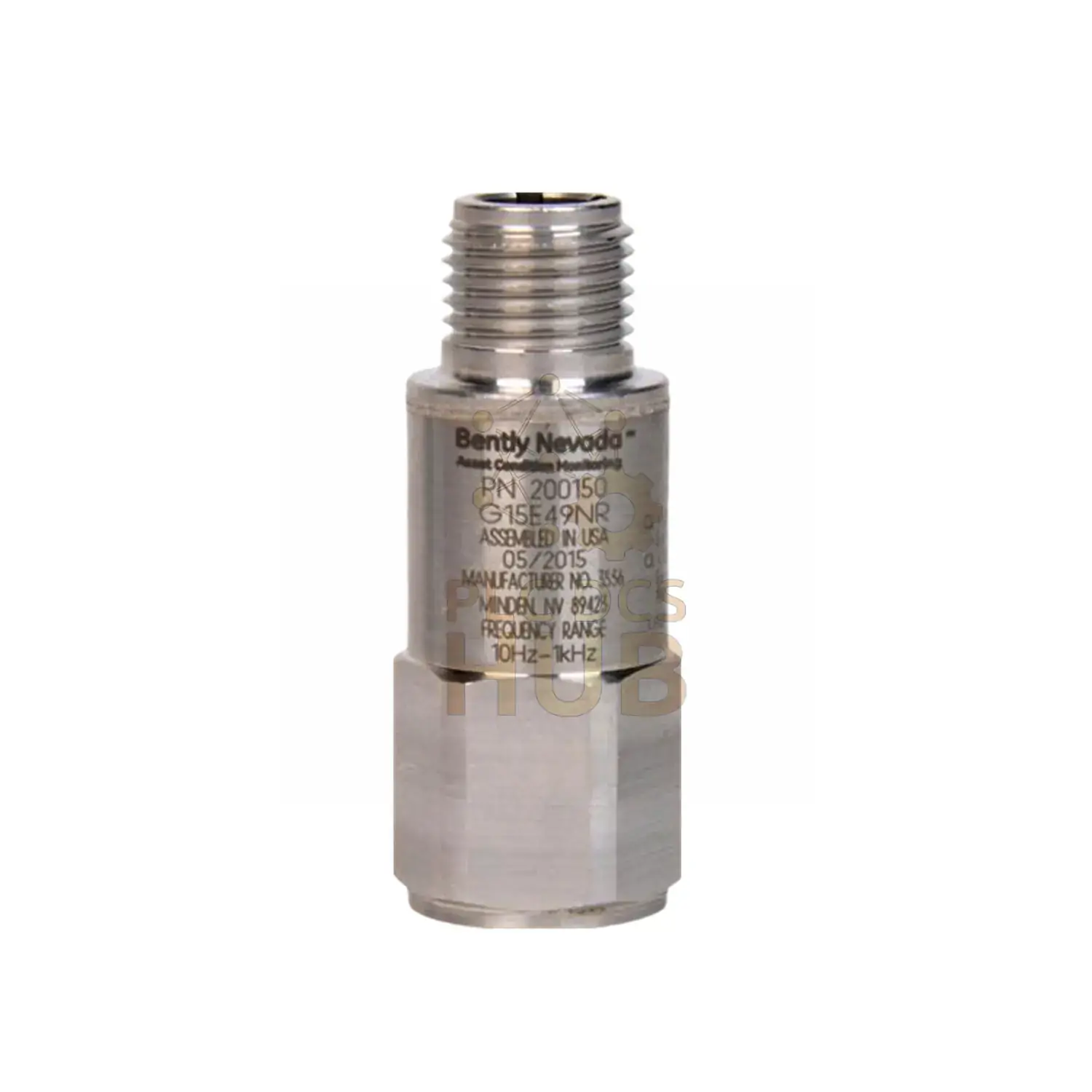

Bently Nevada Industrial Accelerometer with Enhanced Mounting System
Product Identification
- Full Model: 200150-10-05
- Series: Trendmaster Pro
- Mounting Option: 10 (3/8-24 to 1 NPT)
- Approvals: 05 (CSA, ATEX, IECEx)
Core Specifications
- Vibration Range: ±25g (±245 m/s²)
- Frequency Response: 10-1000Hz (600-60,000 cpm)
- Resonant Frequency: >20 kHz
- Sensitivity: 100 mV/g @80Hz
- Linearity: ±2% (1-10g)
Electrical Performance
- Power Requirement: 4.7-5.5 VDC
- Current Draw: <800 µA
- Output Bias: 2.5V ±0.23V
- Settling Time: ≤300 ms
Physical Construction
- Mounting: 3/8-24 female to 1 NPT
- Hex Size: 1-3/8 inch
- Housing: 316L stainless steel
- Dimensions: 17.5mm × 45.7mm
- Weight: 58g (2.0 oz)
Environmental Ratings
- Operating Temp: -40°C to +105°C
- Storage Temp: -55°C to +121°C
- Humidity: 100% condensing
- Shock Resistance: 5,000g pk
- Sealing: 5×10⁻⁸ atm·cc/s leak rate
Installation Procedure
- Apply 2.7-6.8 N·m torque during mounting
- Allow 24-hour stabilization after installation
- Verify clean, flat mounting surface
- Use thread sealant compatible with NPT connections
Performance Validation
- Confirm output bias voltage: 2.27-2.73V DC
- Test transverse sensitivity remains below 7%
- Check hermetic seal integrity annually
- Monitor settling time during startup
Technical Support
- Shipping: FedEx/UPS/DHL express
- Lead Time: 2-5 business days
- Documentation: Includes installation guide
Expert Solutions
Q: What’s the difference between -08 and -10 models?
A: The -10 version features a larger 1-3/8″ hex and 1 NPT connection
Q: Can this operate in explosive environments?
A: Yes, with ATEX/IECEx certifications
Q: What maintenance interval is recommended?
A: Perform calibration check every 12 months of continuous operation
Q: Is it compatible with underwater applications?
A: No, rated for condensing humidity only, not submersion
