Bently Nevada High Temperature Probe | 330302-000-011-10-90-00-00

Description

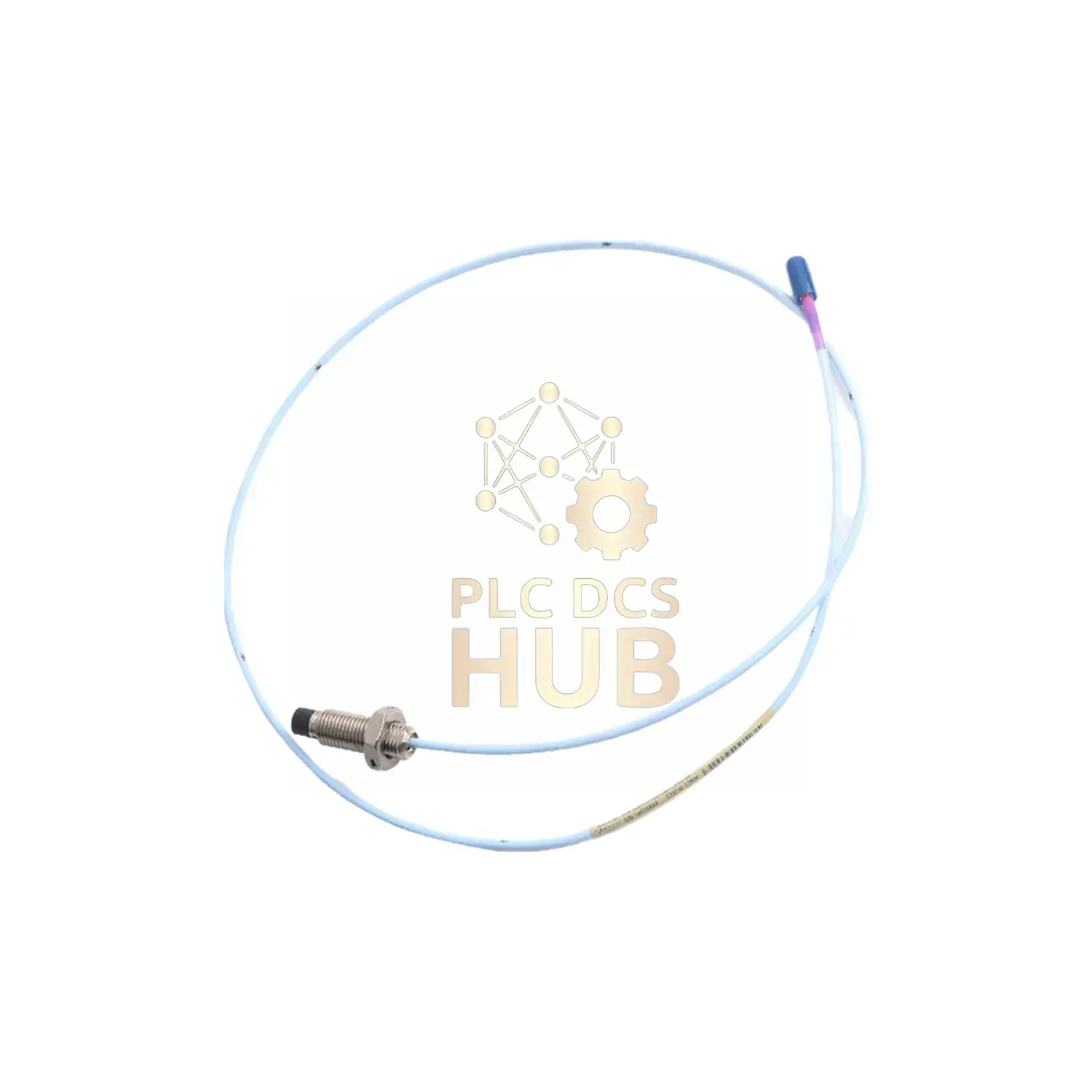

Bently Nevada 3300 High-Temperature Vibration Probe

Monitor extreme industrial environments with this high-temperature probe built for reliability. Featuring a ceramic tip and 316L stainless steel case, it delivers precise vibration measurements in conditions up to 350°C (662°F). Ideal for turbines, compressors, and heavy machinery.

Core Specifications

Brand: Bently Nevada
Model: 3300 Series
Full Suffix: 330302-000-011-10-90-00-00

• Suffix Breakdown:
  – 000: Unthreaded length = 0mm
  – 011: Case length = 11mm
  – 10: Hardline length = 1.0m (3.3 ft)
  – 90: Total length = 9.0m (30 ft)
  – 00: No cable armor
  – 00: No agency approval
• Measurement Range: 4.0 mm (160 mils)
• Frequency Response: 0–6 kHz (±3 dB)
• Sensitivity (ISF): 3.94 V/mm ±9.65%
• Linearity (DSL): < ±78 μm (±3.1 mils)
• Resolution: 0.5 mm increments
• Temp Range: -34°C to +350°C (-30°F to +662°F)
• Environmental Resistance: AISI 316L SST case, IP67 equivalent
• Anti-Interference: Stable with 305m field wiring

Installation Guide

• – Mount perpendicular to rotating shafts
• – Minimum Target Size: 30.5 mm (flat)
• – Minimum Shaft Diameter: 152 mm
• – Use factory-supplied brackets

Compatibility

– Works with Bently Nevada 3300/3500 monitoring systems
– Matches industry-standard 11 mm probe ports

Debugging & Maintenance

– Verify resistance: 5.06 Ω (center to outer conductor)
– Calibrate annually for ±30% ISF stability

Package Includes

– Probe with 9m cable
– Calibration certificate
– Installation manual

Warranty & Shipping

– 12-month warranty
– Shipped via FedEx/UPS/DHL

Frequently Asked Questions

– Q: Cable armor available?
A: This suffix (00) has no armor.
– Q: Max wiring distance?
A: 305 meters with stable signal.
– Q: ISF tolerance at 350°C?
A: Within ±30% of 3.94 V/mm.

Get detailed setup instructions:

• ???? Probe Installation Manual (PDF)

⚠️ For optimal performance, pair with Bently Nevada 3300 XL system. Contact support for custom configurations.

Key Features Recap

– 350°C operational limit
– Ceramic tip for thermal stability
– 9-meter cable with quick-connect
– ±78 μm linearity
